Power line connection
The socket shall be connected according to the relevant standard or
connected to a single-pole breaker.

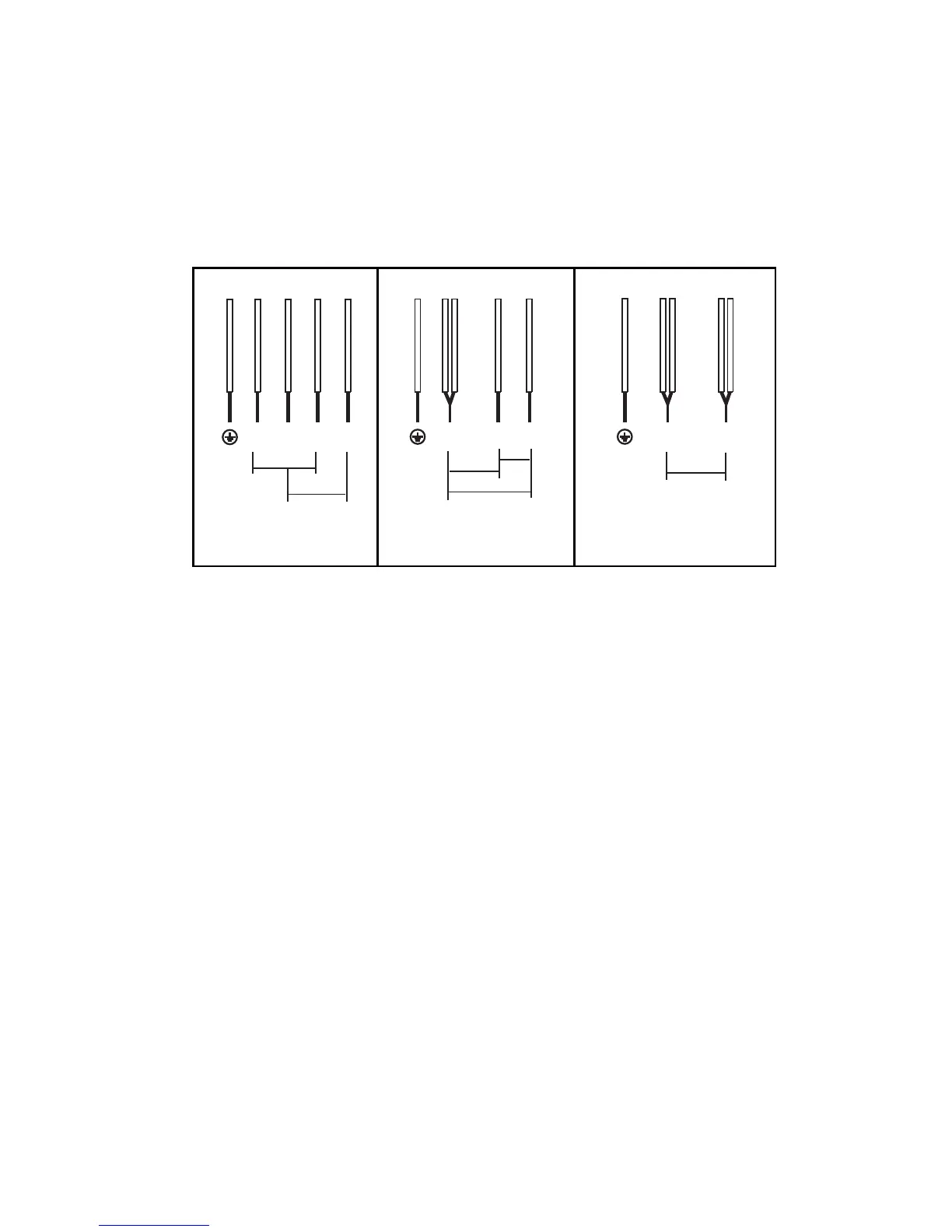

The method of connection is shown in Figure (5):
Figure (5)
blue
green-yellow
N2 N1 L2 L1
grey
brown
black
220-240V
220-240V
blue
green-yellow
N L2 L1
grey
brown
black
400V
220-240V
220-240V
PE
blue
green-yellow
N L
grey
brown
black
220-240V
PE
PE
connet to the main power supply
connet to the main power supply connet to the main power supply
220-240V 2+2N~
220-240V~
400V~ 2-N
If the cable is damaged or needed to be replaced, the operation must be
carried
out by the after-sale agent with dedicated tools to avoid any accidents.
If the appliance is being connected directly to the mains an Omni-polar
ci
rcuit-breaker must be installed with a minimum opening of 3mm between
co
ntacts.
The installer must ensure that the correct electrical connection has been made
and that it is compliant with safety regulations.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorized technicians
only.
