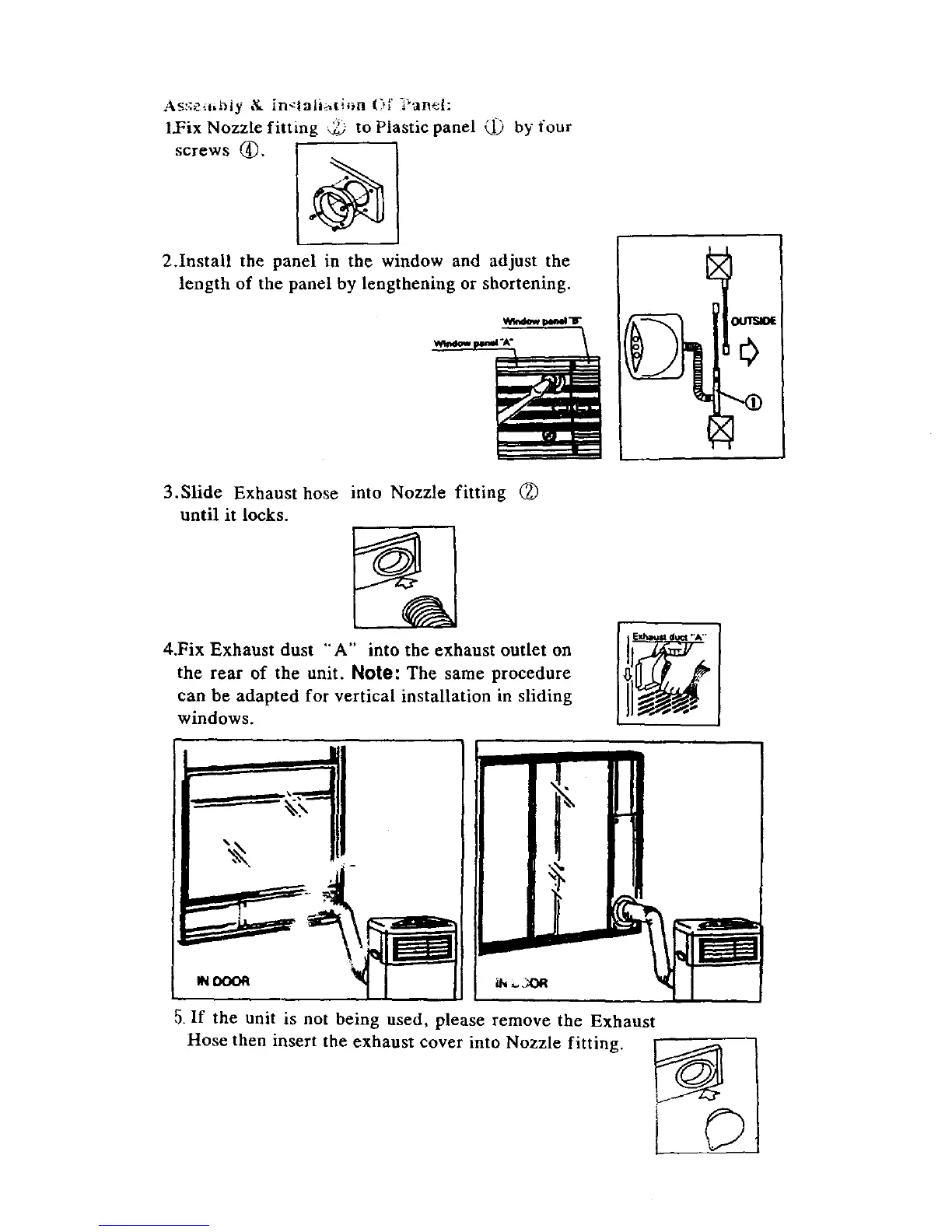

As:.:e.,_tLl-_ty & in_lati_li_a _3_' _anel:
l.Fix Nozzle fitting , :'_ to Plastic panel _ by four
screws I
2.Install the panel in the window and adjust the
length of the panel by lengthening or shortening.
|lol !
3.Slide Exhaust hose into Nozzle fitting (_
until it locks.
4.Fix Exhaust dust "A" into the exhaust outlet on
the rear of the unit. Note: The same procedure
can be adapted for vertical installation in sliding
windows.
iN,.,,X_
5. If the unit is not being used, please remove the Exhaust
Hose then insert the exhaust cover into Nozzle fitting.
