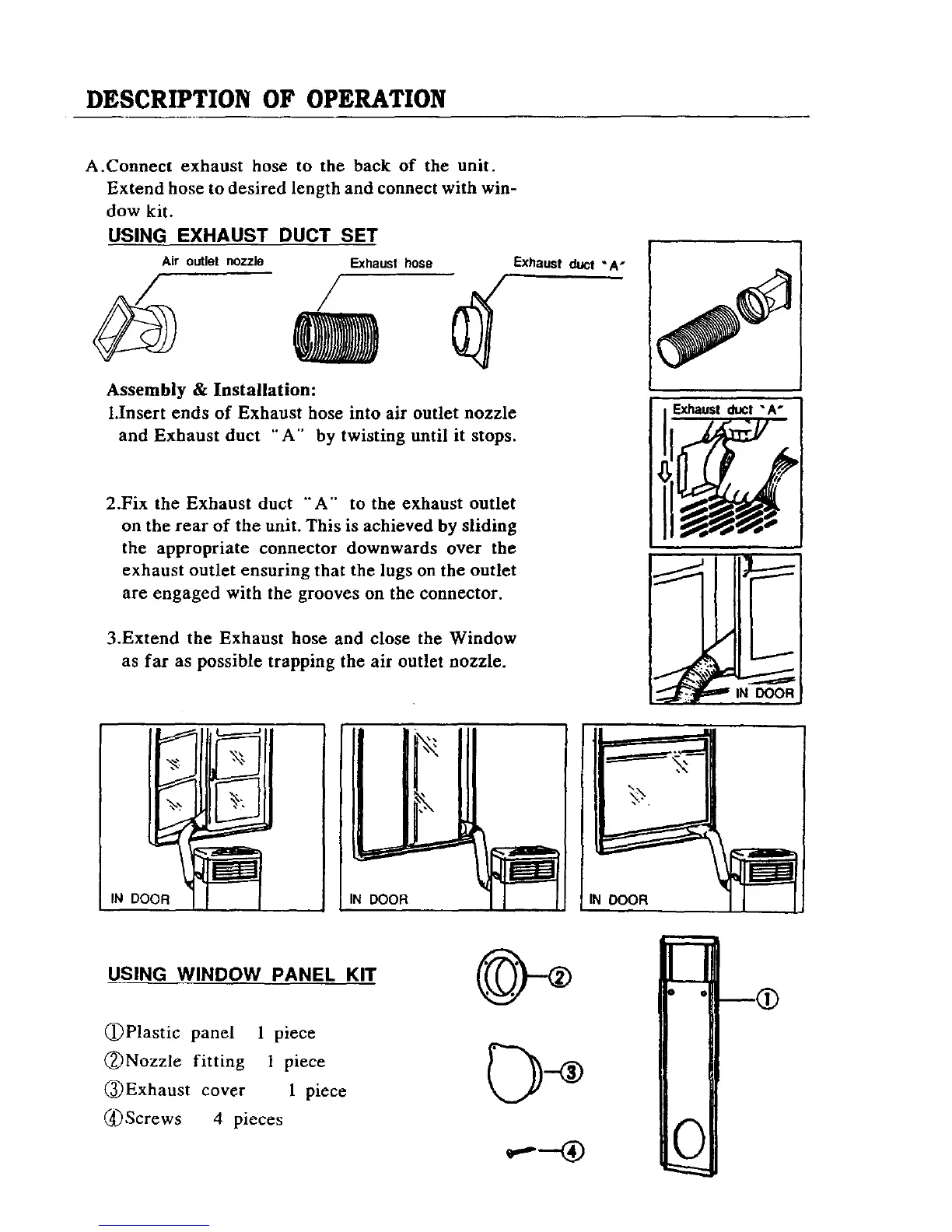

DESCRIPTION OF OPERATION
A.Connect exhaust hose to the back of the unit.
Extend hose to desired length and connect with win-
dow kit.
USING EXHAUST DUCT SET
Air outlet nozzle Exhaust hose
EXhaust duct "A n
Assembly & Installation:
l.Insert ends of Exhaust hose into air outlet nozzle
and Exhaust duct "A" by twisting until it stops.
2.Fix the Exhaust duct "A'" to the exhaust outlet
on the rear of the unit. This is achieved by sliding
the appropriate connector downwards over the
exhaust outlet ensuring that the lugs on the outlet
are engaged with the grooves on the connector.
3.Extend the Exhaust hose and close the Window
as far as possible trapping the air outlet nozzle.
EXhaust duct "A"
DOOR IN
I
IN DOOR
USING WINDOW PANEL KIT
(_)Plastic panel 1 piece
(_)Nozzle fitting 1 piece
(_)Exhaust cover 1 piece
(4) Screws 4 pieces
n
D OI
i
0
To Next Page
