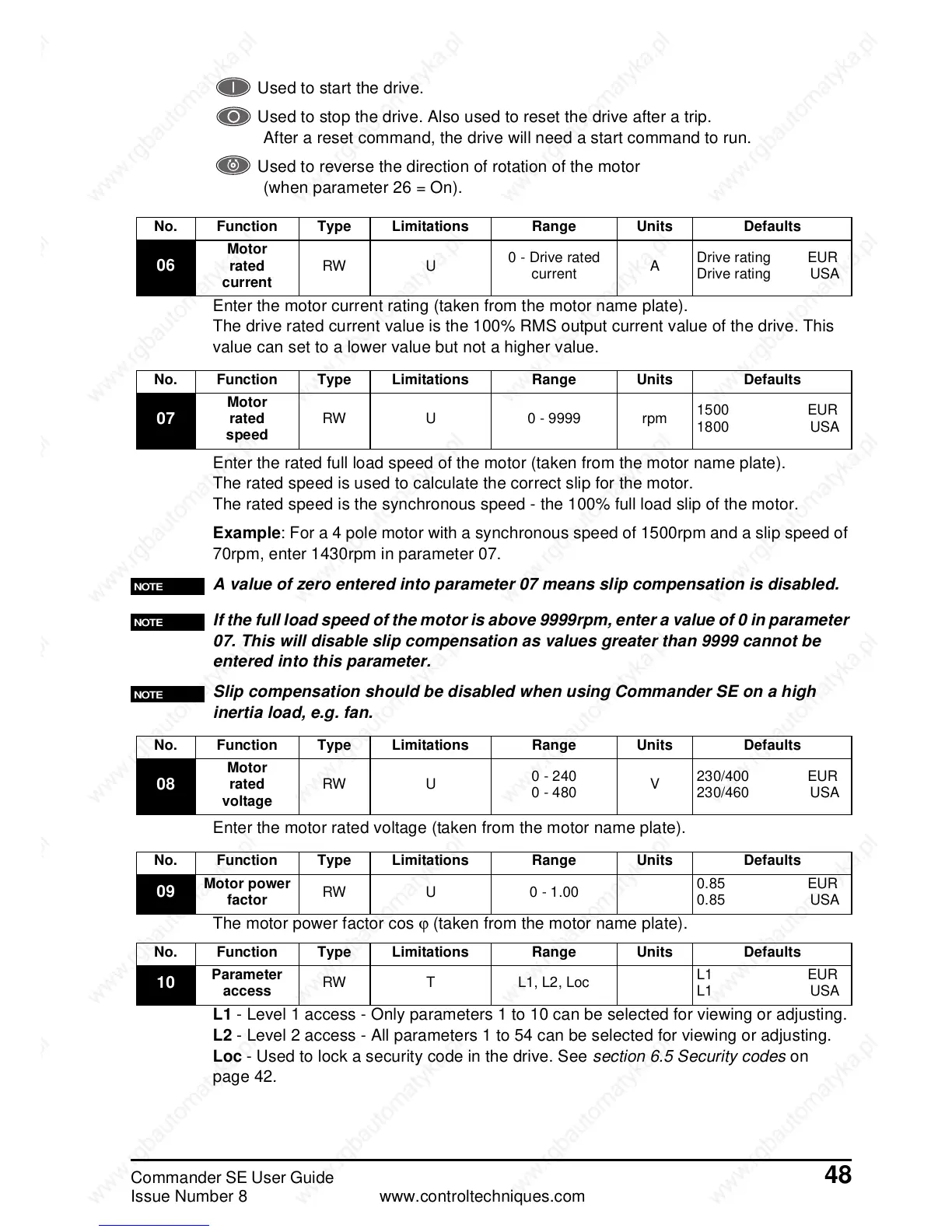

Commander SE User Guide 48
Issue Number 8 www.controltechniques.com
Used to start the drive.
Used to stop the drive. Also used to reset the drive after a trip.
After a reset command, the drive will need a start command to run.
Used to reverse the direction of rotation of the motor
(when parameter 26 = On).
Enter the motor current rating (taken from the motor name plate).
The drive rated current value is the 100% RMS output current value of the drive. This
value can set to a lower value but not a higher value.
Enter the rated full load speed of the motor (taken from the motor name plate).
Theratedspeedisusedtocalculatethecorrectslipforthemotor.
The rated speed is the synchronous speed - the 100% full load slip of the motor.
Example: For a 4 pole motor with a synchronous speed of 1500rpm and a slip speed of
70rpm, enter 1430rpm in parameter 07.
A value of zero entered into parameter 07 means slip compensation is disabled.
If the full load speed of the motor is above 9999rpm, enter a value of 0 in parameter
07. This will disable slip compensation as values greater than 9999 cannot be
entered into this parameter.
Slip compensation should be disabled when using Commander SE on a high
inertia load, e.g. fan.
Enter the motor rated voltage (taken from the motor name plate).
The motor power factor cos ϕ (taken from the motor name plate).
L1 - Level 1 access - Only parameters 1 to 10 can be selected for viewing or adjusting.
L2 - Level 2 access - All parameters 1 to 54 can be selected for viewing or adjusting.
Loc -Usedtolockasecuritycodeinthedrive.Seesection 6.5 Security codes on
page 42.
No. Function Type Limitations Range Units Defaults
06
Motor
rated
current
RW U
0-Driverated
current
A
Drive rating EUR
Drive rating USA
No. Function Type Limitations Range Units Defaults
07
Motor
rated
speed
RW U 0 - 9999 rpm
1500 EUR
1800 USA
NOTE
NOTE
NOTE
No. Function Type Limitations Range Units Defaults
08
Motor
rated
voltage
RW U
0-240
0-480
V
230/400 EUR
230/460 USA
No. Function Type Limitations Range Units Defaults
09
Motor power
factor
RW U 0 - 1.00
0.85 EUR
0.85 USA
No. Function Type Limitations Range Units Defaults
10
Parameter
access
RW T L1, L2, Loc
L1 EUR
L1 USA
