49 Commander SE User Guide
www.controltechniques.com Issue Number 8

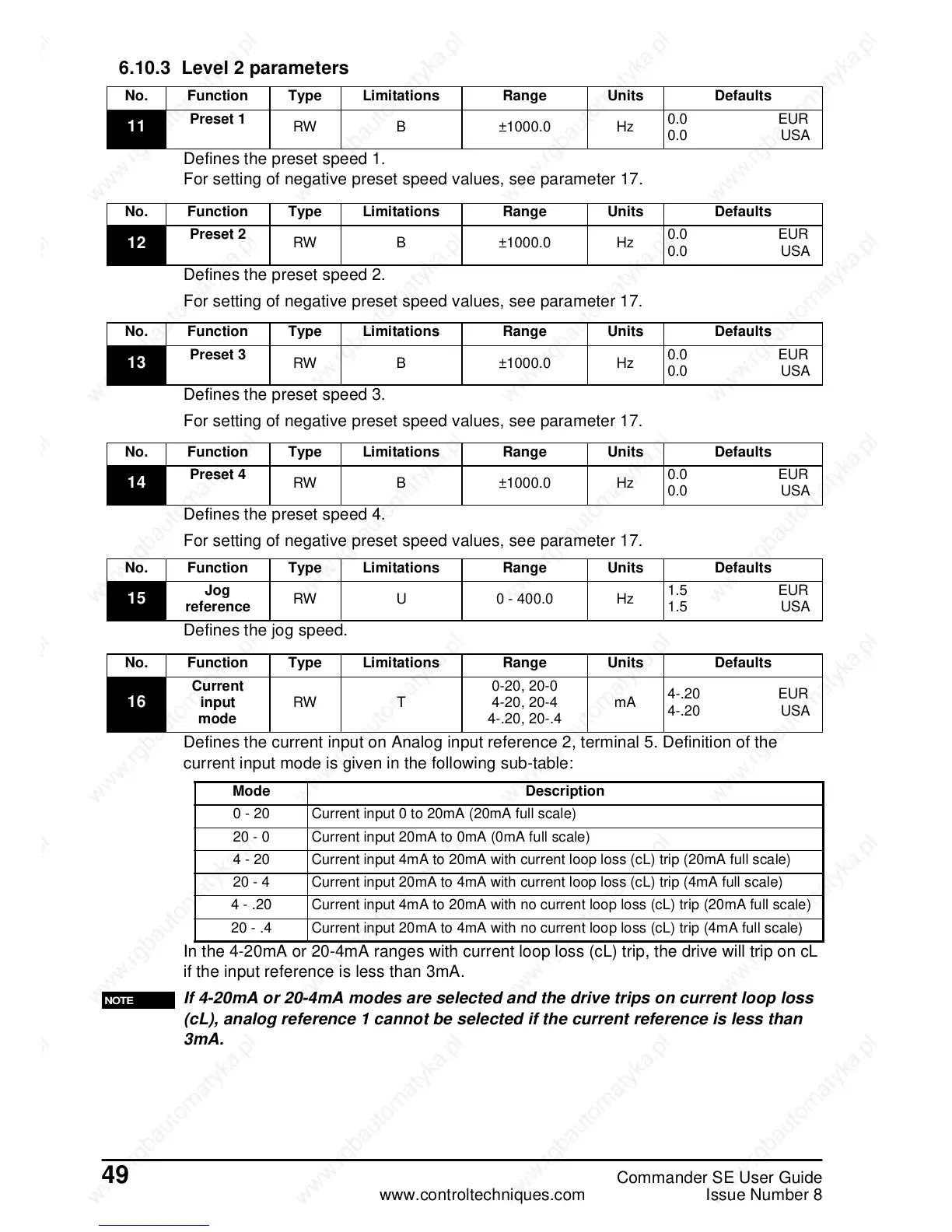

6.10.3 Level 2 parameters
Defines the preset speed 1.
For setting of negative preset speed values, see parameter 17.
Defines the preset speed 2.
For setting of negative preset speed values, see parameter 17.
Defines the preset speed 3.
For setting of negative preset speed values, see parameter 17.
Defines the preset speed 4.
For setting of negative preset speed values, see parameter 17.
Defines the jog speed.
Defines the current input on Analog input reference 2, terminal 5. Definition of the
current input mode is given in the following sub-table:
In the 4-20mA or 20-4mA ranges with current loop loss (cL) trip, the drive will trip on cL
if the input reference is less than 3mA.
If 4-20mA or 20-4mA modes are selected and the drive trips on current loop loss
(cL), analog reference 1 cannot be selected if the current reference is less than
3mA.
No. Function Type Limitations Range Units Defaults
11
Preset 1
RW B ±1000.0 Hz
0.0 EUR
0.0 USA
No. Function Type Limitations Range Units Defaults
12
Preset 2
RW B ±1000.0 Hz
0.0 EUR
0.0 USA
No. Function Type Limitations Range Units Defaults
13
Preset 3
RW B ±1000.0 Hz
0.0 EUR
0.0 USA
No. Function Type Limitations Range Units Defaults
14
Preset 4
RW B ±1000.0 Hz
0.0 EUR
0.0 USA
No. Function Type Limitations Range Units Defaults
15
Jog
reference
RW U 0 - 400.0 Hz
1.5 EUR
1.5 USA
No. Function Type Limitations Range Units Defaults
16
Current
input
mode
RW T
0-20, 20-0
4-20, 20-4
4-.20, 20-.4
mA
4-.20 EUR
4-.20 USA
Mode Description
0 - 20 Current input 0 to 20mA (20mA full scale)
20 - 0 Current input 20mA to 0mA (0mA full scale)
4 - 20 Current input 4mA to 20mA with current loop loss (cL) trip (20mA full scale)
20 - 4 Current input 20mA to 4mA with current loop loss (cL) trip (4mA full scale)
4 - .20 Current input 4mA to 20mA with no current loop loss (cL) trip (20mA full scale)
20 - .4 Current input 20mA to 4mA with no current loop loss (cL) trip (4mA full scale)
NOTE
