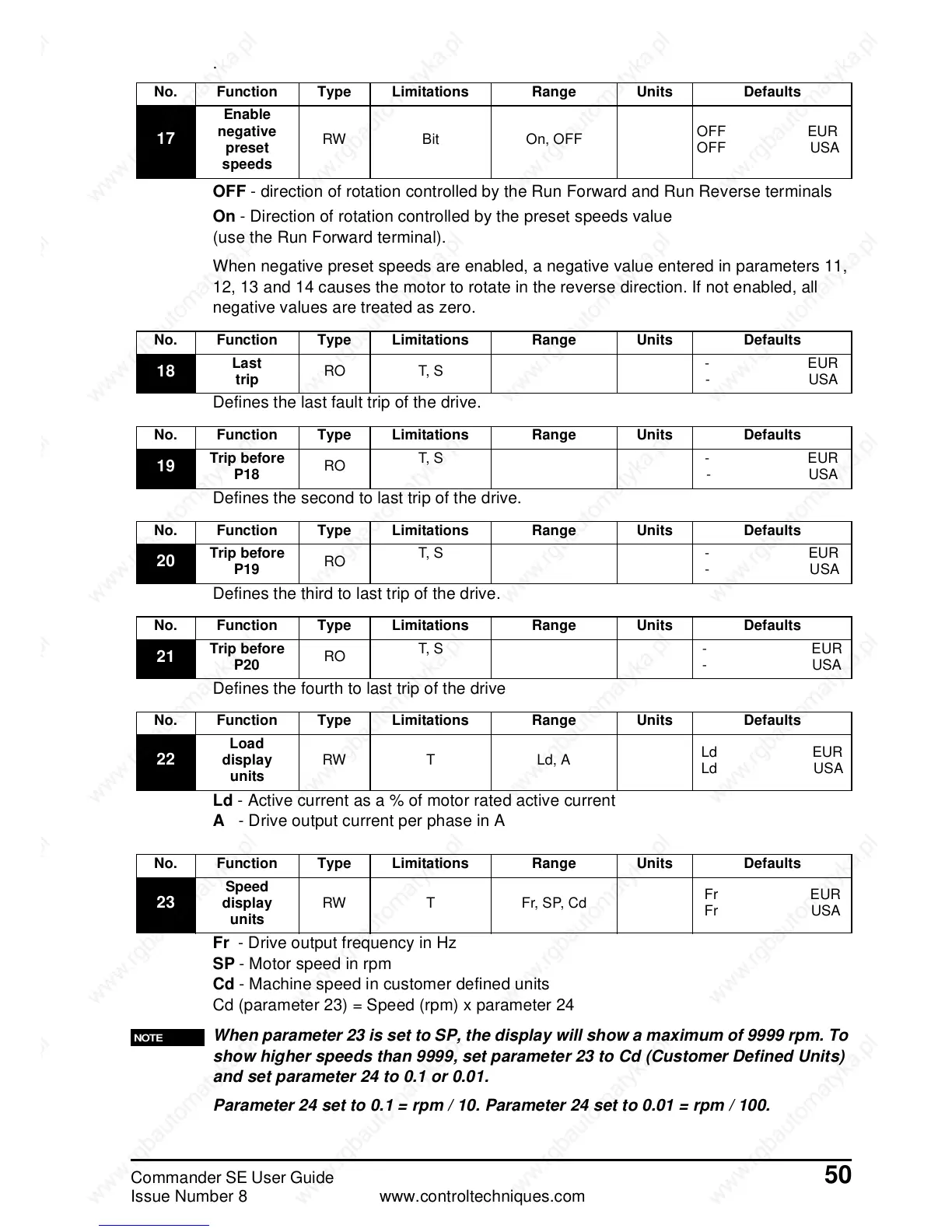

Commander SE User Guide 50
Issue Number 8 www.controltechniques.com
.
OFF - direction of rotation controlled by the Run Forward and Run Reverse terminals
On - Direction of rotation controlled by the preset speeds value
(use the Run Forward terminal).
When negative preset speeds are enabled, a negative value entered in parameters 11,
12, 13 and 14 causes the motor to rotate in the reverse direction. If not enabled, all
negative values are treated as zero.
Defines the last fault trip of the drive.
Defines the second to last trip of the drive.
Defines the third to last trip of the drive.
Defines the fourth to last trip of the drive
Ld - Active current as a % of motor rated active current
A - Drive output current per phase in A
Fr - Drive output frequency in Hz
SP - Motor speed in rpm
Cd - Machine speed in customer defined units
Cd (parameter 23) = Speed (rpm) x parameter 24
When parameter 23 is set to SP, the display will show a maximum of 9999 rpm. To
show higher speeds than 9999, set parameter 23 to Cd (Customer Defined Units)
and set parameter 24 to 0.1 or 0.01.
Parameter 24 set to 0.1 = rpm / 10. Parameter 24 set to 0.01 = rpm / 100.
No. Function Type Limitations Range Units Defaults
17
Enable
negative
preset
speeds
RW Bit On, OFF
OFF EUR
OFF USA
No. Function Type Limitations Range Units Defaults
18
Last
trip
RO T, S
-EUR
-USA
No. Function Type Limitations Range Units Defaults
19
Trip before
P18
RO
T, S - EUR
-USA
No. Function Type Limitations Range Units Defaults
20
Trip before
P19
RO
T, S - EUR
-USA
No. Function Type Limitations Range Units Defaults
21
Trip before
P20
RO
T, S - EUR
-USA
No. Function Type Limitations Range Units Defaults
22
Load
display
units
RW T Ld, A
Ld EUR
Ld USA
No. Function Type Limitations Range Units Defaults
23
Speed
display
units
RW T Fr, SP, Cd
Fr EUR
Fr USA
NOTE
