Controls KS-105 - Engine Harness Connector

8

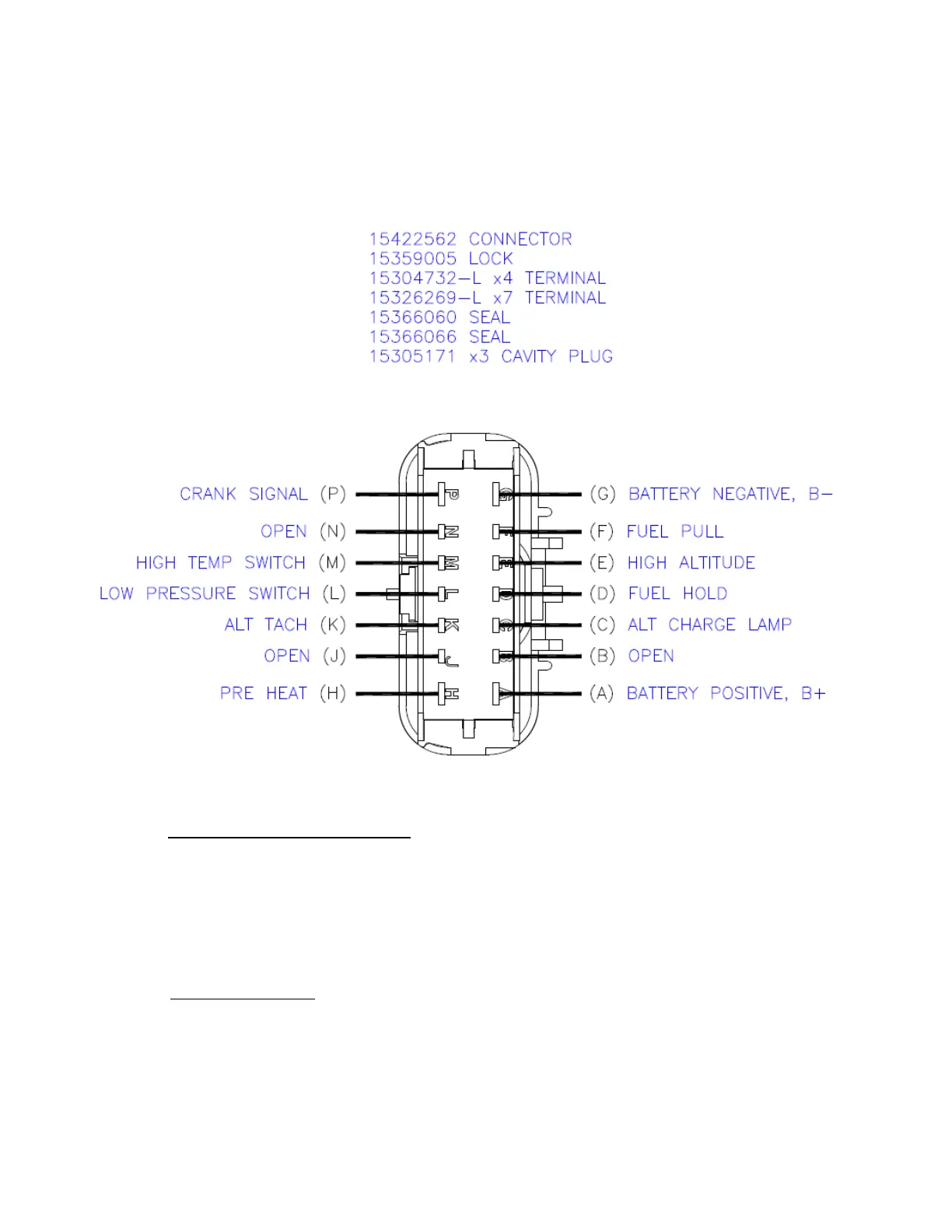

ENGINE HARNESS CONNECTOR
The KS-105 provides a plug and play connector to the Yanmar engine harness.
Panel Ratings:
 The KS Panel is rated at 3 Amp Maximum
 Fuel Hold: 2.1A max @ 12v sourcing
 Crank and Preheat: 500mA max (Close to Ground)
Pre-Heat Interval Select
 A loose wire with a bullet connector provides connectivity for the
Pre-Heat Interval Selection.
