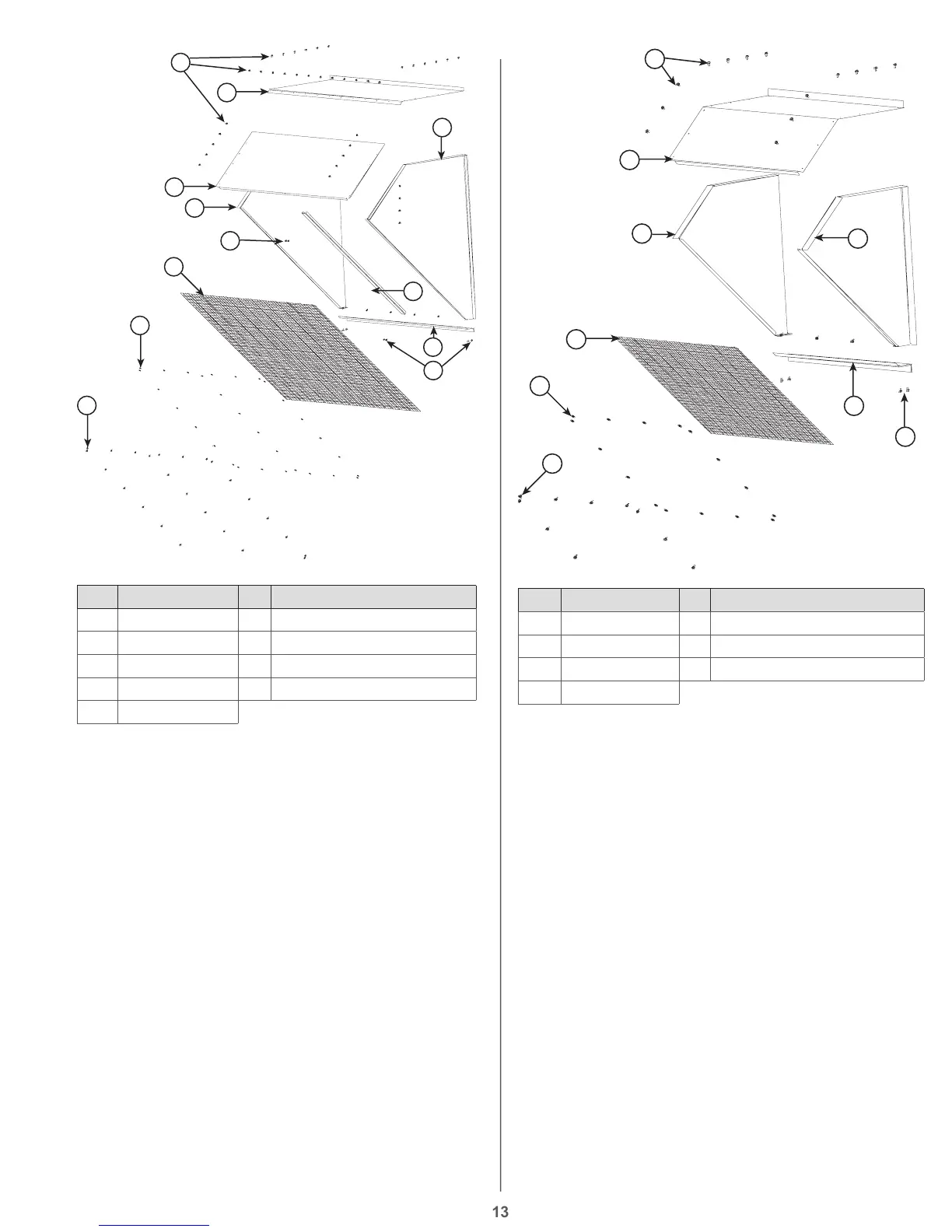

Weather Hood Size 36 to 60
1
3
5
6
4
8
2
7
8
8
8
9
Part Description Description
1 Top Panel, Piece 1 6 Bird Screen Support
2 Top Panel, Piece 2 7 1/2” Mesh Galvanized Bird Screen
3 Right Side Panel 8 1/4” X 1/2” Speed Screw
4 Left Side Panel 9 5/16 SAE Steel Washer
5 Bottom Panel
Weather Hood Size 8 to 30
5
7
6
6
1
3
4
2
6
Part Description Description
1 Top Panel 5 1/2” Mesh Galvanized Bird Screen
2 Right Side Panel 6 1/4” X 1/2” Speed Screw
3 Left Side Panel 7 5/16 SAE Steel Washer
4 Bottom Panel
