Montaj türü seçin: Kanallı seçenek A (dışarı tahliye) veya Devridaim seçeneği B (dışarı tahliye yok).
Bu cihaz yalnızca duvara monte etmek içindir.
02
B ≥ 760mm
47mm
188mm
180mm
631-906mm
425-700mm
B
120mm
181mm

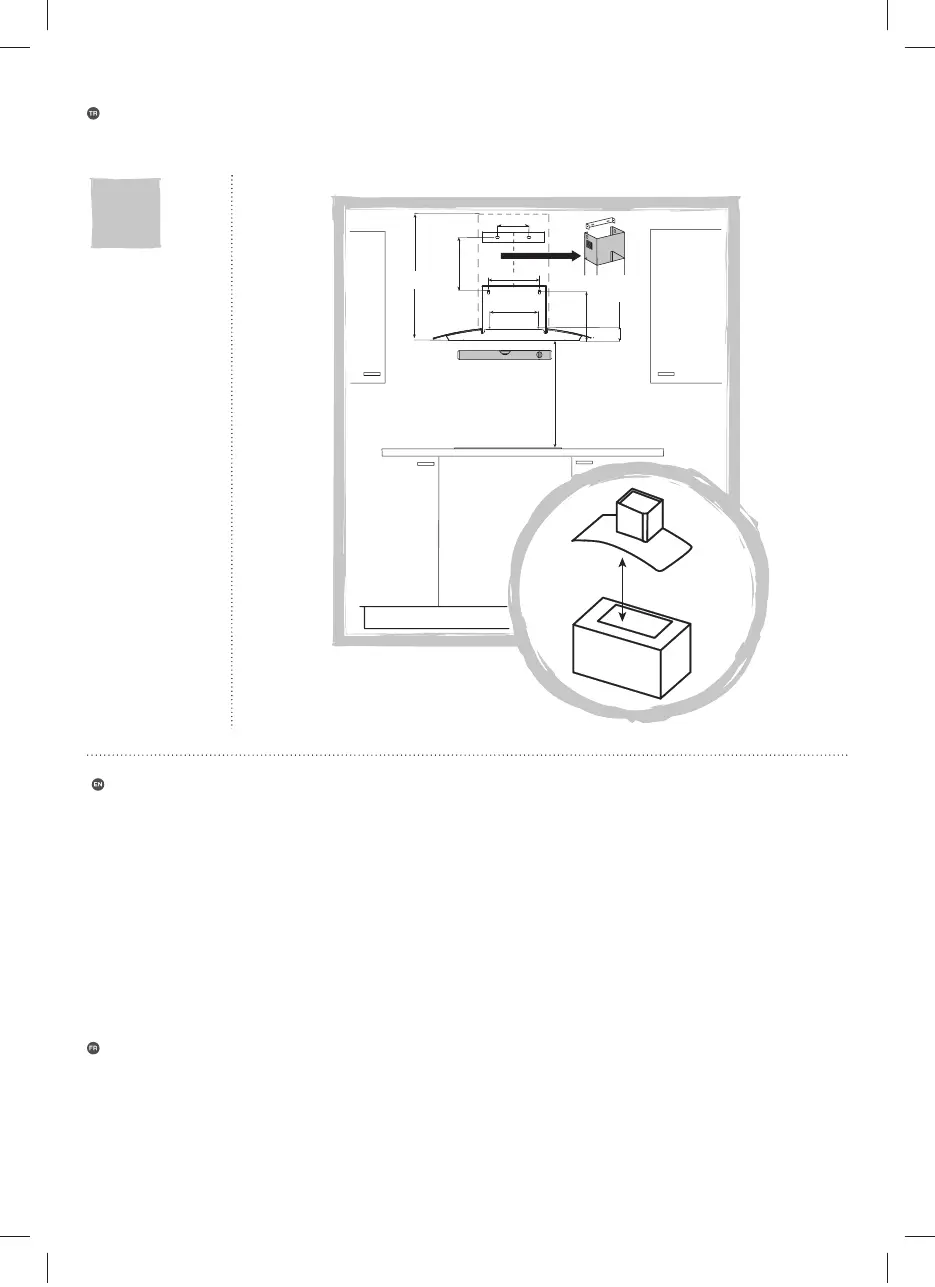

Mark the wall with the hole positions as shown in the diagram. The fi xings supplied are suitable for
solid walls only. When fi xing to any other type of wall use suitable alternative fi xings.
Warning: Caution! Before drilling it is extremely important to check the wall for hidden pipes,
electrical cables etc using an appropriate detection device.
For safety reasons, use only the same size fi xings and screws which are recommended in this
instruction manual. Failure to install the appliance in accordance with these instructions may result in
electrical hazards.
Drill the holes, insert the wall plugs in all 6 holes. Insert the screws in the middle 2 holes. Maximum
gap between top two holes and middle two holes should be no more than 700mm, dependent upon
the ceiling height.
WARNING: Do not over tighten to avoid damaging the glass.
Marquer l’emplacement des trous au mur comme indiqué sur le schéma. Les fi xations fournies
conviennent à des murs pleins uniquement. Lors d’une fi xation sur n’importe quel autre type de mur,
utiliser d’autres fi xations adaptées.
Avertissement : Attention ! Avant de percer, il est extrêmement important de vérifi er si des
tuyaux, des câbles électriques, etc., sont dissimulés dans le mur en utilisant un appareil de
détection approprié.
