Installation
Installation instructions
Remove all the packing materials plus disposal statement.

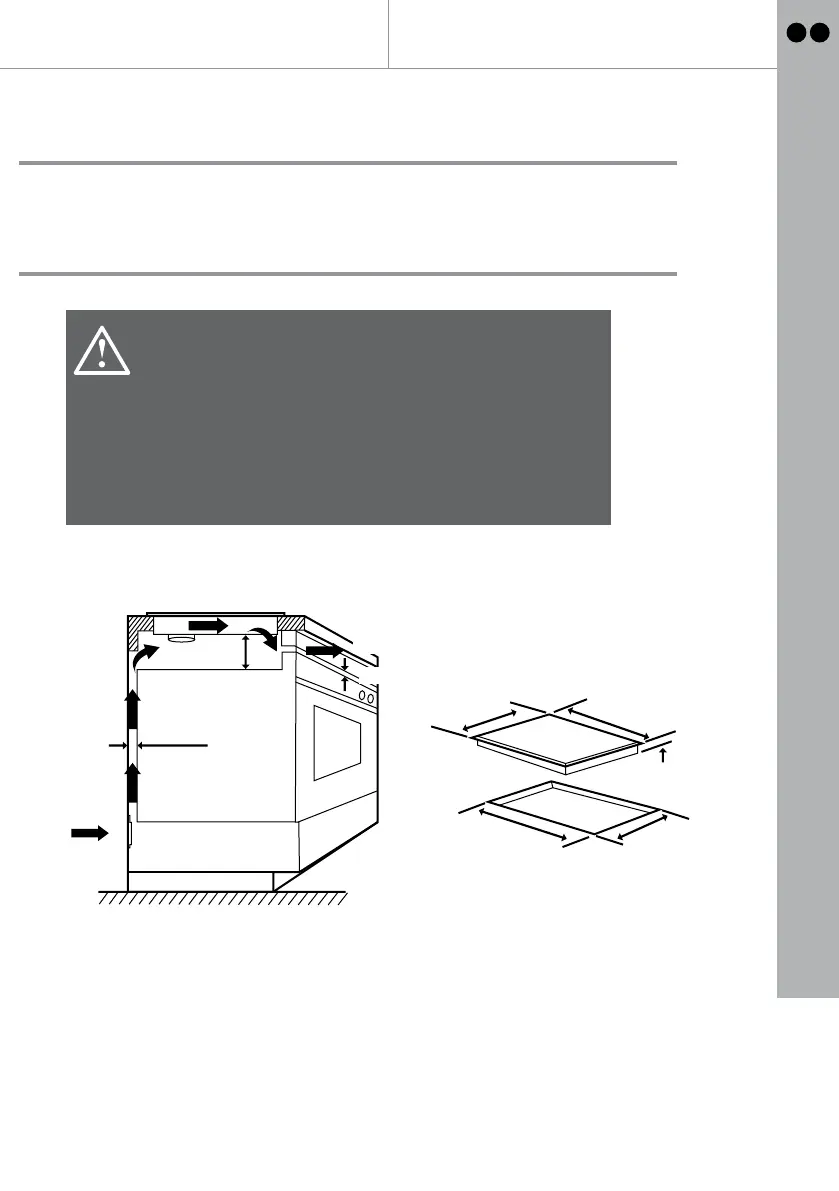

Siting (see g.1)
> The ceramic hob must be well ventilated and the air inlet and outlet must
not be blocked. Please select heat-resistant work surface material to
avoid larger deformation caused by the heat radiation from the hotplate.
> NOTE: The safety distance between the ceramic hob and the cupboard
above the hotplate should be at least 750 mm.
Min. 750 mm
Min. 50 mm
Min. 20 mm
Air intake
520 mm
590 mm
50 mm
560 mm
490 mm
Air exit
Min. 5 mm
Caution
Good ventilation is required around the appliance
for easier dissipation of heat and low power
consumption.
Sufcient clearance is required around the
appliance.
The appliance should not be placed near anything
that may echo.
Min. 50 mm
Min. 20 mm
Air intake
520 mm
590 mm
56 mm
560 mm
490 mm
Air exit
Min. 5 mm
g. 1
Min. 50 mm
Min. 20 mm
Air intake
520 mm
590 mm
50 mm
560 mm
490 mm
Air exit
Min. 5 mm
