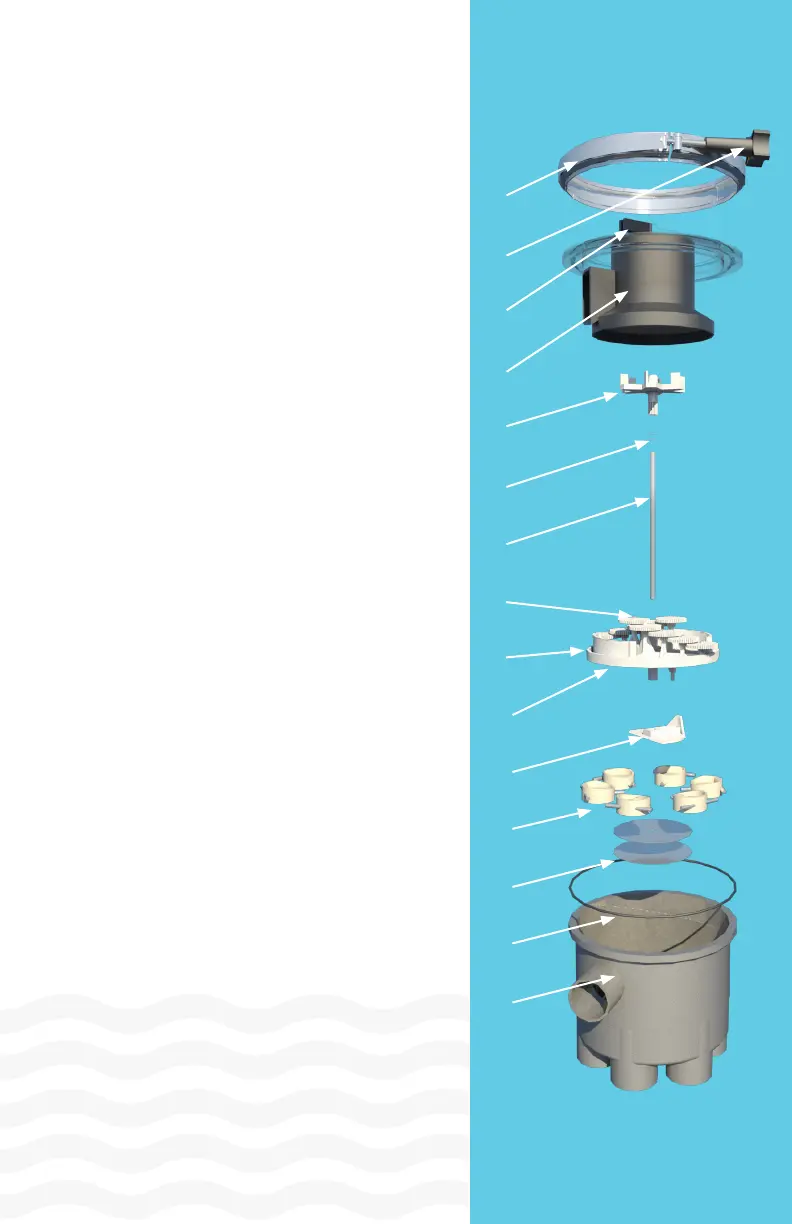

QuikClean Wave low profile
water actuated valve assembly
Item Description
1. Band clamp
2. Clamp handle
3. Low prole pause kit
4. Low prole lid assembly
5. Impeller
6. Shims (x2)
7. Centre shaft
8. Gear retainer clips
9. Gears
10. Gear plate assembly
11. Cam
12. 50mm T-clips (x6)
13. Anti-friction washers (x2)
14. O-ring
15. Lower housing (6 Ports)
Parts available in kit form only
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
