Coolaroo FAIRHAVEN - Step 14: Louvre Pin Securing

19
STEP 14

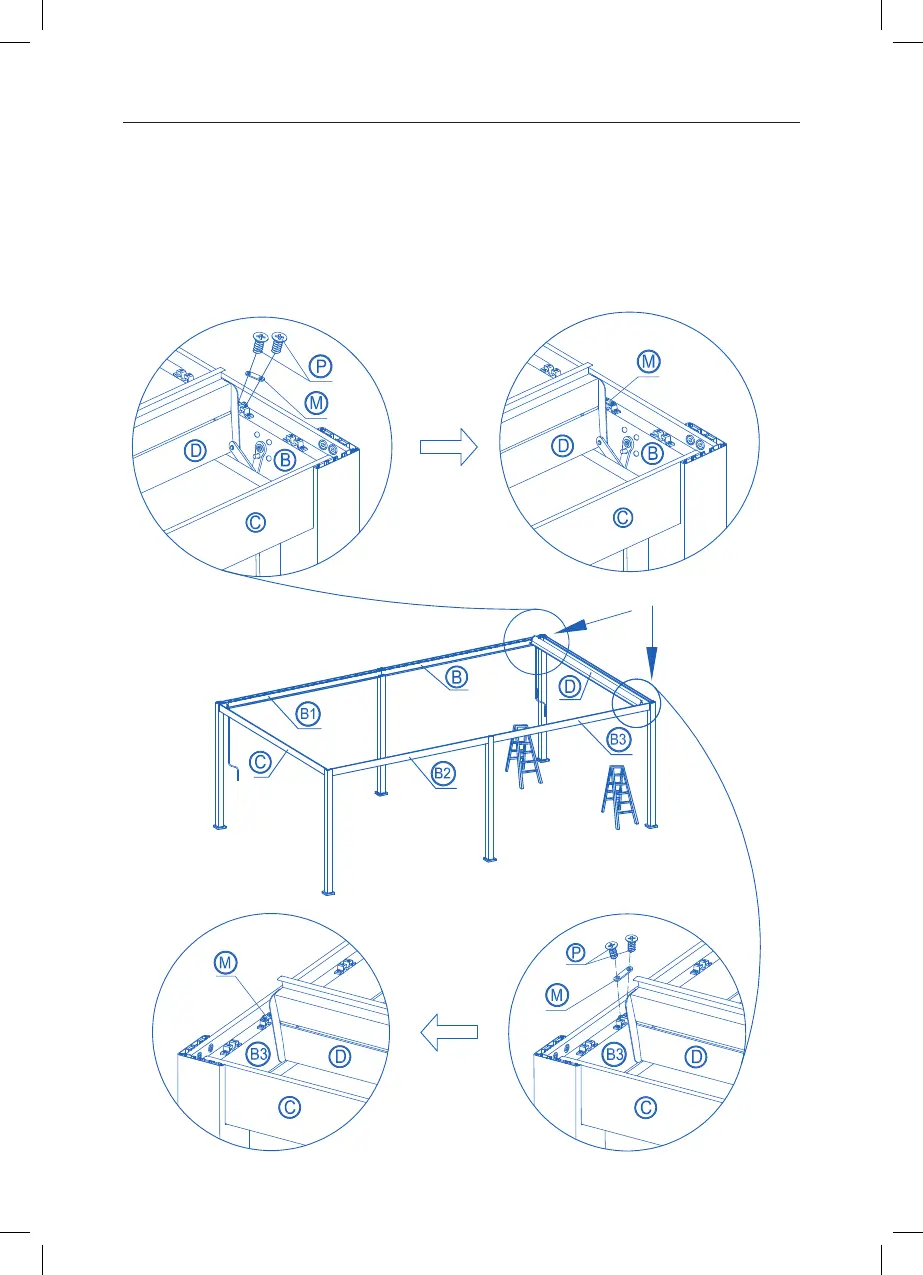

To secure the louvre pin into place, ensure the pin is sitting in the cradle on the
beam (B). Take the cover (M) and line up the holes. Once in position, screw the cover
plate in place using two M5 screws (P). Repeat this on the other side of the lovre
on beam B3.
Figure 14.
