Cooledge CTR-SCT-DMX-58V - Page 6

EXT-0087-R00-01082020 (LTR) 6/17

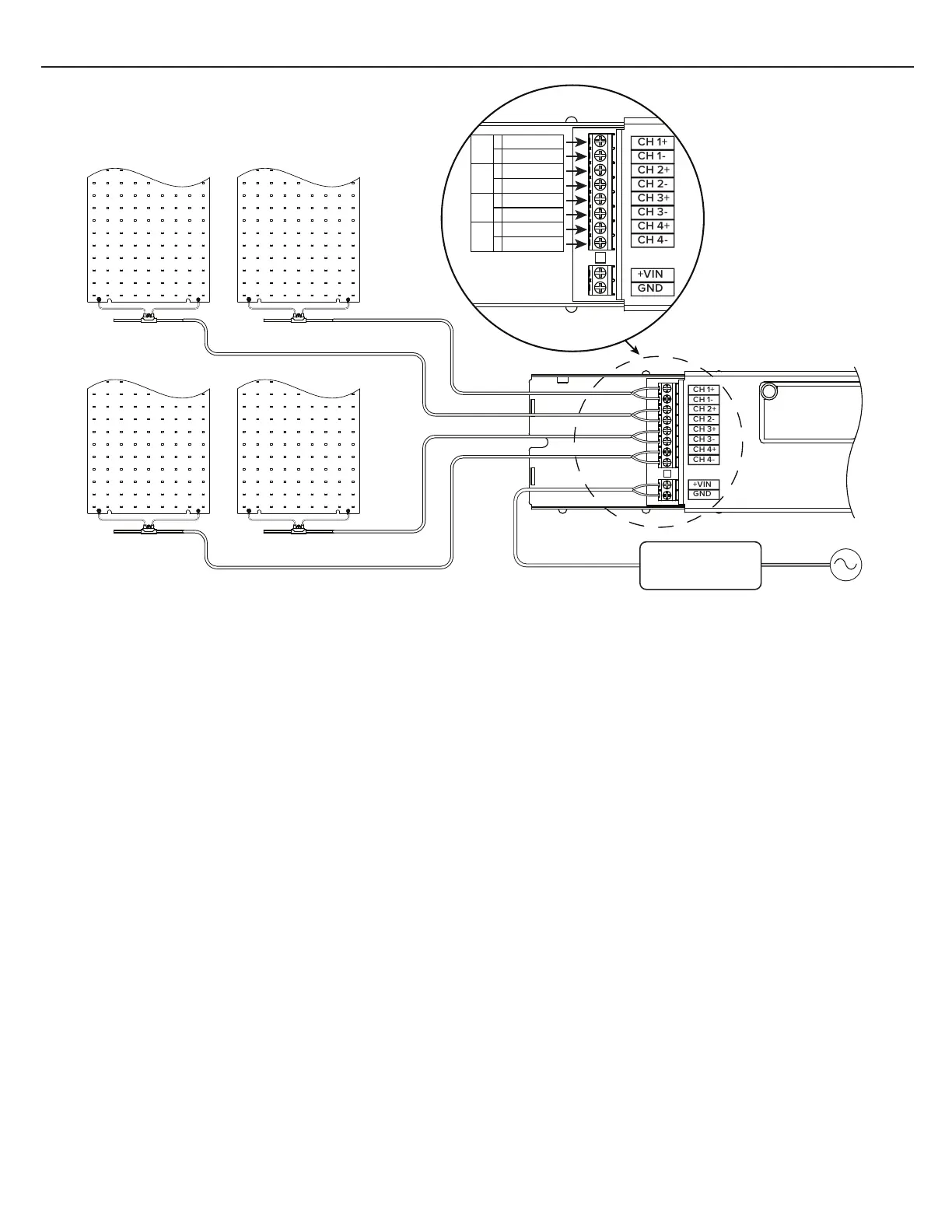

OUTPUT CONNECTIONS: STATIC COLOR TEMPERATURE (SCT)
PSU 58V:
100/200/400W
CH4
CH3
CH2
CH1
+
-
+
-
+
-
+
-
CH4: 90W
CH3: 90W
CH2: 90W
CH1: 90W
RED OR WHITE
BLACK
RED OR WHITE
BLACK
RED OR WHITE
BLACK
RED OR WHITE
BLACK
CH 1+
CH 1-
CH 2+
CH 2-
CH 3+
CH 4+
CH 3-
CH 4-
+VIN
GND
CH 1+
CH 1-
CH 2+
CH 2-
CH 3+
CH 4+
CH 3-
CH 4-
+VIN
GND
PSU 58V:
100/200/400W
CH3: 90W
BLACK
Relevant Part No’s:
CTR-SCT-DMX-58V
