EXT-0087-R00-01082020 (LTR) 7/17
For TNW Mode each TNW Output Channel uses 4 x DMX Channels:
1 for DIM Coarse
1 for DIM Fine
1 for CCT Coarse
1 for CCT Fine
In total, each controller occupies 8 x DMX channels, assigned as below:
DMX CH1 – DIM Coarse TNW Output CH1
DMX CH2 – DIM Fine TNW Output CH1
DMX CH3 – CCT Coarse TNW Output CH1
DMX CH4 – CCT Fine TNW Output CH1
DMX CH5 – DIM Coarse TNW Output CH2
DMX CH6 – DIM Fine TNW Output CH2
DMX CH7 – CCT Coarse TNW Output CH2
DMX CH8 – CCT Fine TNW Output CH2
Example of addressing units for TNW Mode on DMX bus:
1. Unit 1 takes DMX Address = 1 and unit occupies DMX Channels # 1-8
2. Unit 2 takes DMX Address = 9 and unit occupies DMX Channels # 9-16
3. Unit 3 takes DMX Address = 17 and unit occupies DMX Channels # 17-24
For the above the DIP SETTINGS are:
1. 010 000000001 Controller set for TNW Mode, unit occupies DMX Channels 1-8
2. 010 000001001 Controller set for TNW Mode, unit occupies DMX Channels 9-16
3. 010 000010001 Controller set for TNW Mode, unit occupies DMX Channels 17-24
TUNABLE WHITE (TNW)
16 bit standard. Fully Compliant with USITT DMX512-A (E1.11-2008(R2013)).
Tunable White is a mode in the Control Module to be used in conjunction with TILE Tunable White. Powering the controller in this
mode can be done with 58V 100W/200W/400W drivers. A 400W driver can power up to 2 Control Modules.
See dimming curve for Tunable White Mode in APPENDIX B.
Warning! Changing DIP Switch Setting must be performed only after
unit is powered down
DMX Cooledge Controller accepts only 16- bit DMX control

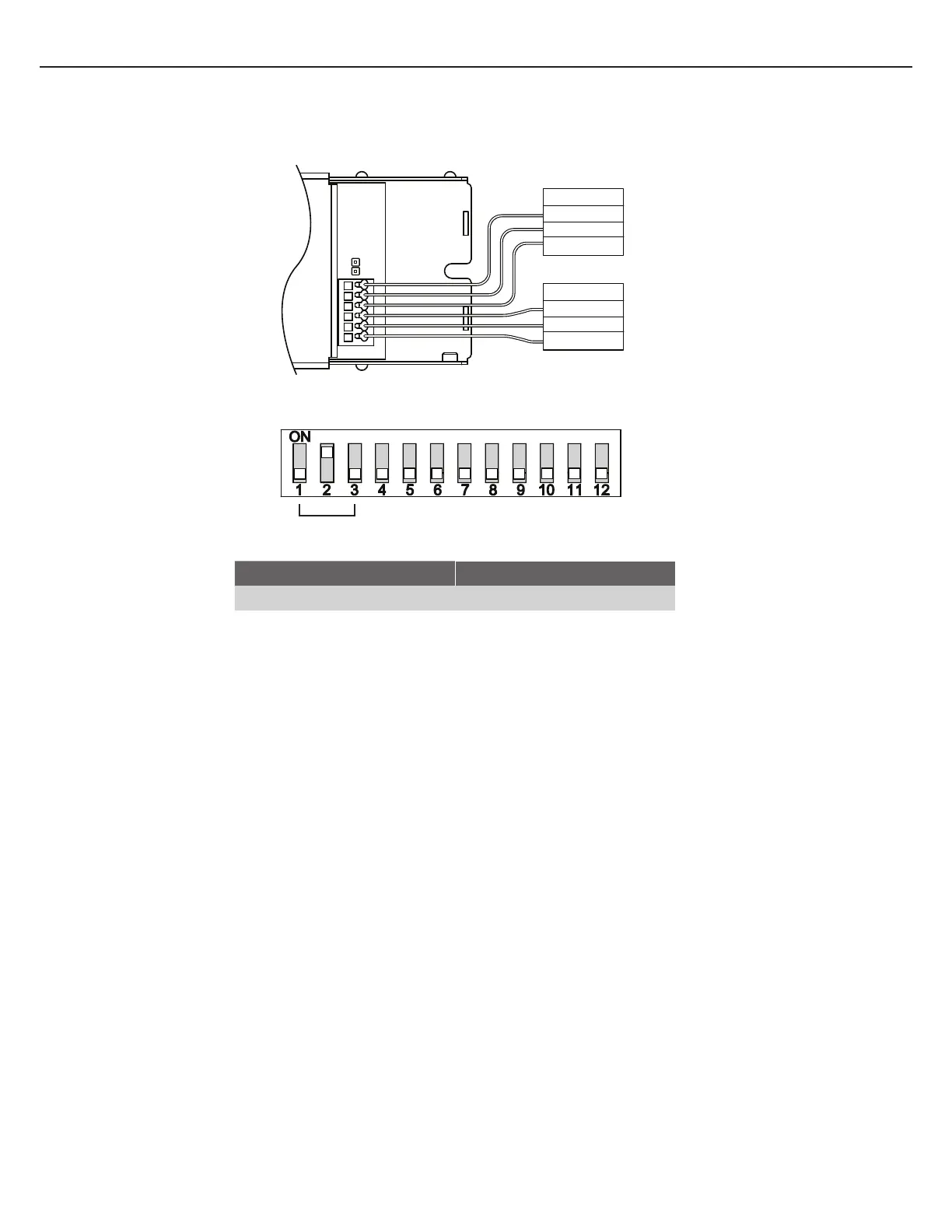

Dimming Protocol Mode Switches 1-3
DMX TNW 0-1-0
- Switches 1 - 3: Control Module MODE
DMX OUTPUT
GND
D-
D+
DMX INPUT
GND
D-
D+
DMX
