Modbus Gateway(Mini)
12

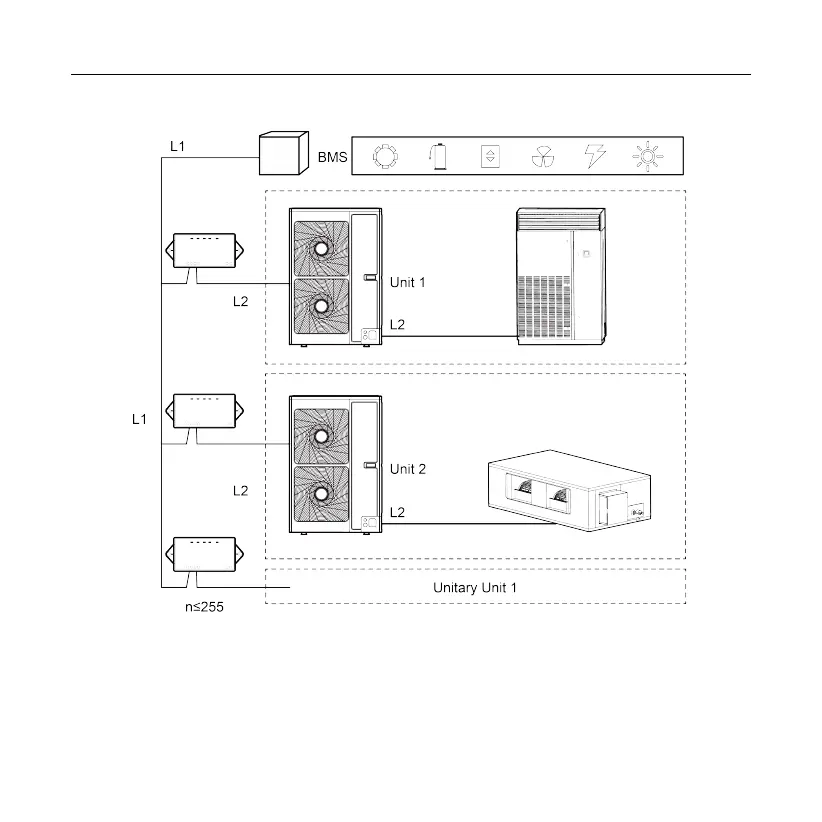

6.2 Topological Graph
6.3 Topology Introduction
Modbus bus:1
Modbus bus:L1 represents Modbus bus.
Unit:one set of unit consists of one set of outdoor unit and one set of indoor unit.
