7.1.2 Installation Dimension of Electric Control Cabinet
Modbus Gateway(Mini) shall be installed in the electric control cabinet. The front
side of gateway shall be hung upwards in horizontal level and secured by two screws.

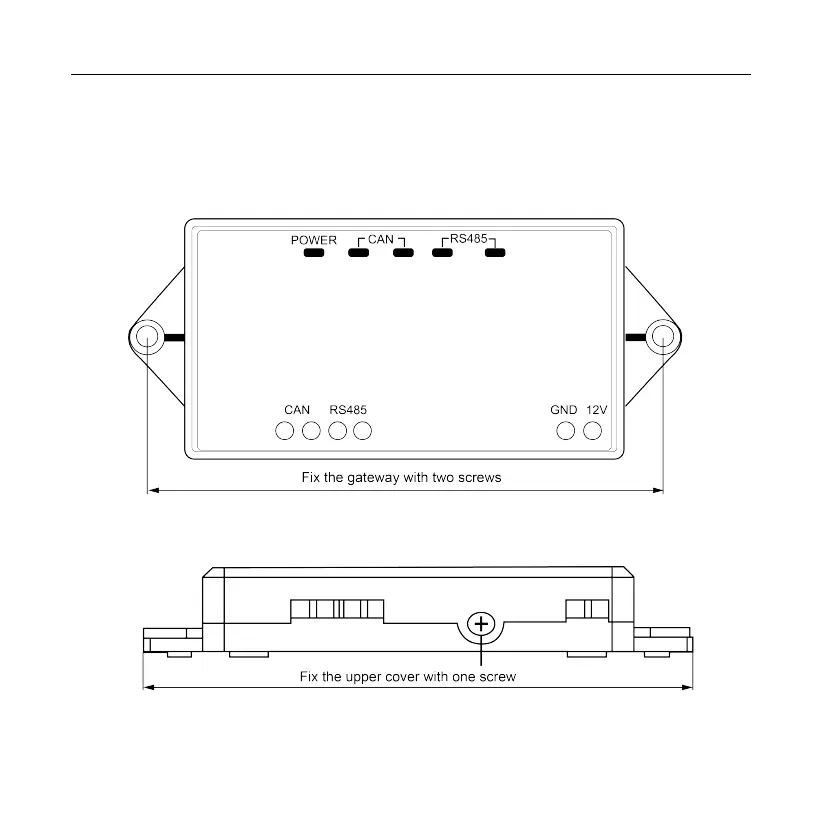

Required installation space is shown as below (only for reference).
