S225-12-1
9
!
SAFETY
FOR LIFE

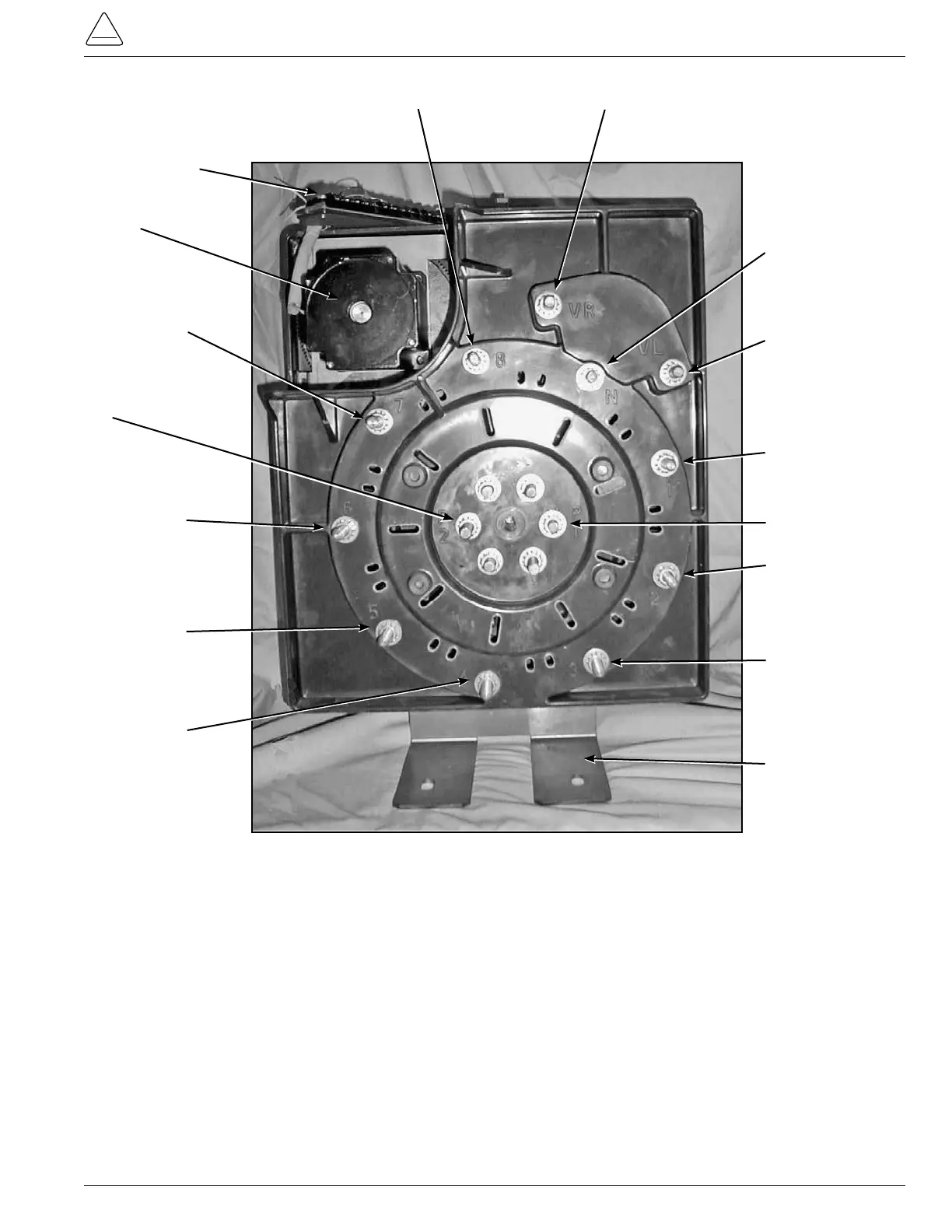

Figure 11.
Back side of QD3 T
ap-changer
.
T
erminal Board
Motor
#7 Stationary
#6 Stationary
#5 Stationary
#4 Stationary
#3 Stationary
T
apchanger
Mounting Base
#2 Stationary
#1 Main
Stationary
Contact
VL Reversing
Stationary
Contact
Neutral Stationary
VR Reversing
Stationary
Contact
#8 Stationary
P2
P1
8
10
Table of Contents
Table of Contents
1
Safety Information
2
Product Information
3
Switch Arm
5
Installation
7
Part Kit Instructions
18
QD3/T350 Main Moveable Contact Assembly Kit
19
Kit Number 5741325B04 QD3/T350 Main Moveable Contact Assembly Kit
32
QD3/T350 Motor Replacement Kit
40
Kit Number 57A63675100B
46
QD3/T350 Motor Resistor Replacement Kit
46
Kit Number 5791844A01
46
QD3/T350 PI Drive Cam Replacement Kit
49
Kit Number 5740783B21
49
QD3/T350 Reversing Stationary
51
QD3/T350 Reversing Moveable Contact and
60
Kit Number 5741325B03
60
QD3/T350 TC-LTC P.I. Drive Face Gear Kit
72
Kit Number 5740787B11
72
QD3/T350 Quick Drive Holding Switch
74
