Assembly Chart 1220/1202
shelves
9
10

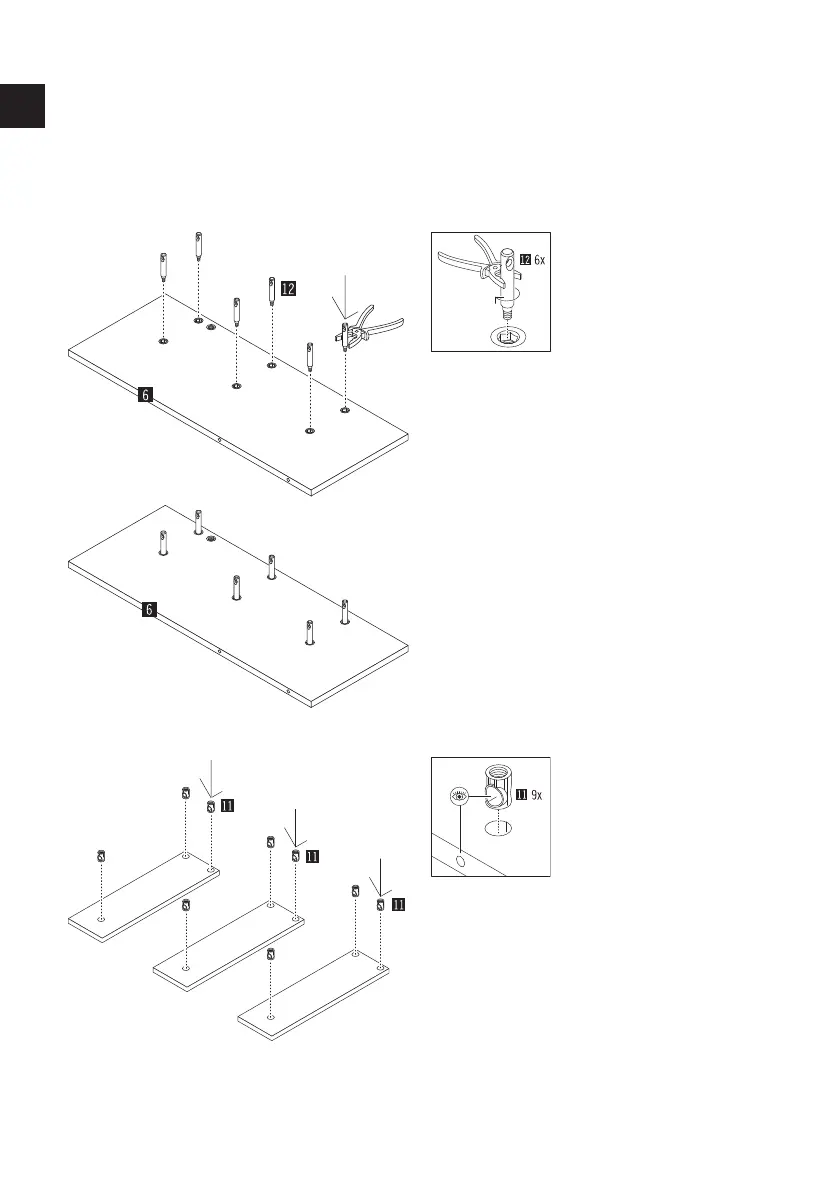

Then use pliers to screw the 6 connector bolts
(part 12) into the threaded sleeves of the shelf
(part 6) provided.
IMPORTANT: Make sure that the hole in the
connector bolts always points up and down!
Insert 3 connector housings (part 11) per shelf
(part 7) into the holes provided. Make sure
that the side holes in the housings are aligned
with the drill hole.
TIP: Check the correct position using a shelf
bolt by inserting it into the side hole for tes-
ting and then pulling it out again.
