Assembly Chart 1210/1201

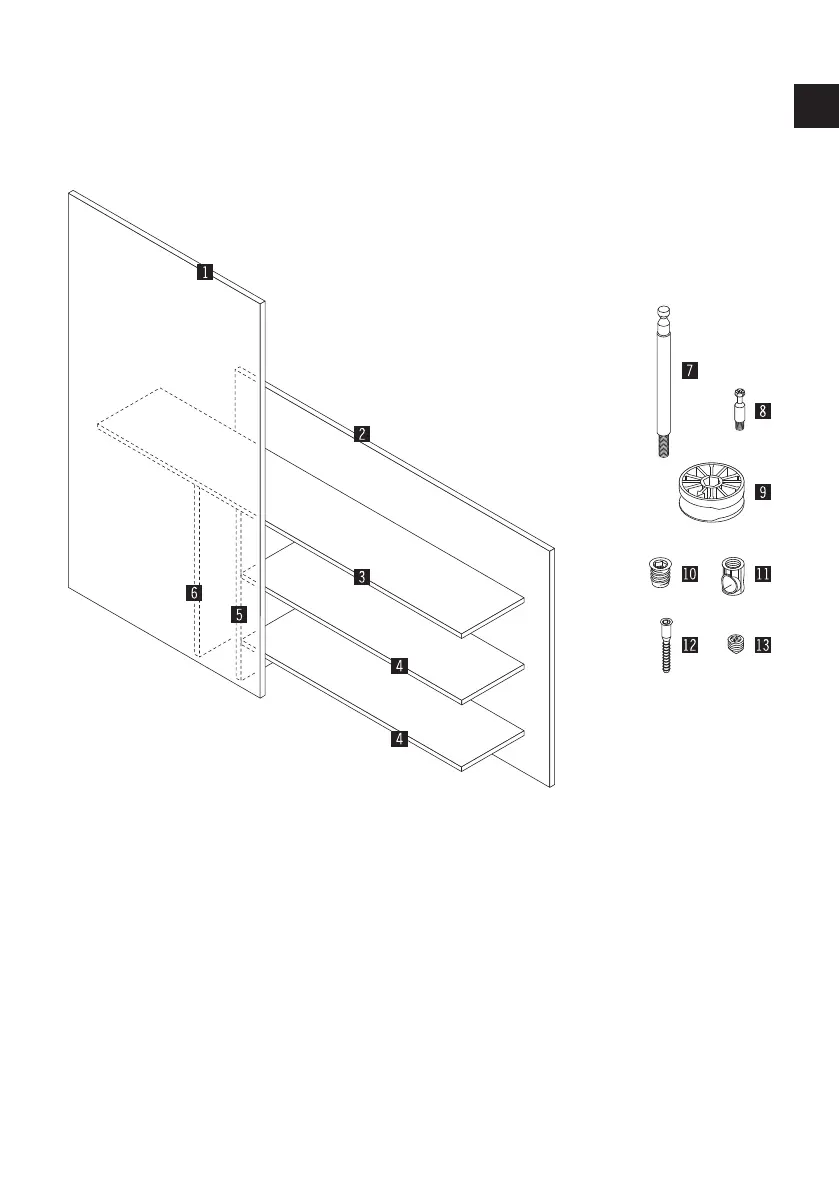

Scope of delivery
1. 1 x partition wall A (W 120.0 x H 210.0 cm)
2. 1 x partition wall B (W 190.0 x H 125.0 cm)
3. 1 x shelf (W 223.5 x D 30.0 x H 2.4 cm)
4. 2 x shelf (W 140.0 x D 30.0 x H 2.4 cm)
5. 1 x shelf (W 93.3 x D 30.0 x H 2.4 cm)
6. 1 x shelf (W 93.3 x D 30.0 x H 2.4 cm)
7. 11 x shelf bolts
8. 9 x Maxifix bolts (M8 x 28.5 mm)
9. 9 x Maxifix housings (Ø = 35 mm)
10. 1 x insert nuts
11. 11 x connector housings (Ø = 16 mm with M10-thread)
12. 4 x corner connectors (7 x 50 mm)
13. 11 x connector grub screws with tip (M10 x 12 mm)
