Assembly Chart 1220/1202

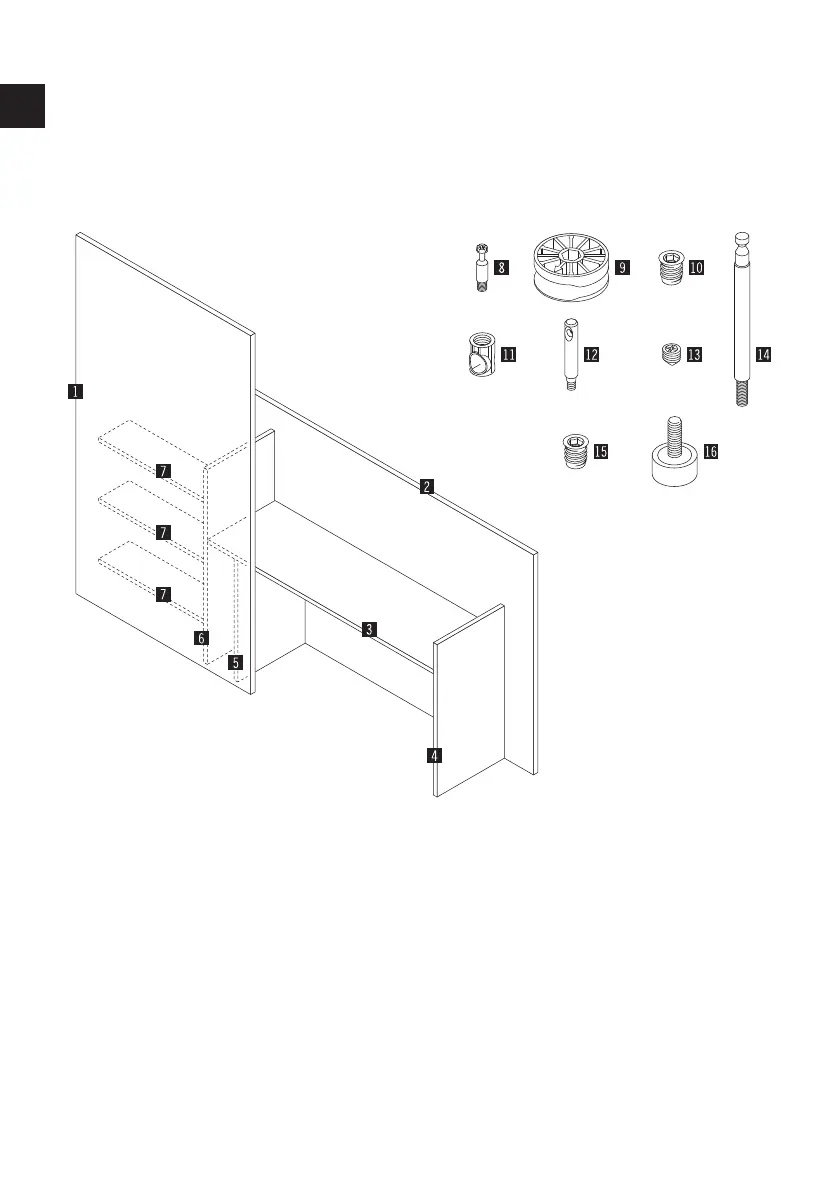

Scope of delivery
1. 1 x partition wall A (W 120.0 x H 210.0 cm)
2. 1 x partition wall B (W 190.0 x H 125.0 cm)
3. 1 x shelf (W 155.0 x D 40.0 x H 2.4 cm)
4. 2 x shelf (W 90.0 x D 40.0 x H 2.4 cm)
5. 1 x shelf (W 73.0 x D 40.0 x H 2.4 cm)
6. 1 x shelf (W 115.0 x D 40.0 x H 2.4 cm)
7. 3 x shelf (W 68.2 x D 25.0 x H 2.4 cm)
8. 9 x Maxifix bolts (M8 x 28.5 mm)
9. 9 x Maxifix housings (Ø = 35 mm)
10. 9 x insert nuts
11. 18 x connector housings (Ø = 16 mm with M10-thread)
12. 10 x connector bolts (10 x 55 mm wiht M8-thread)
13. 18 x connector grub screws with tip (M10 x 12 mm)
