Assembly Chart 1220/1202
partition wall A
1

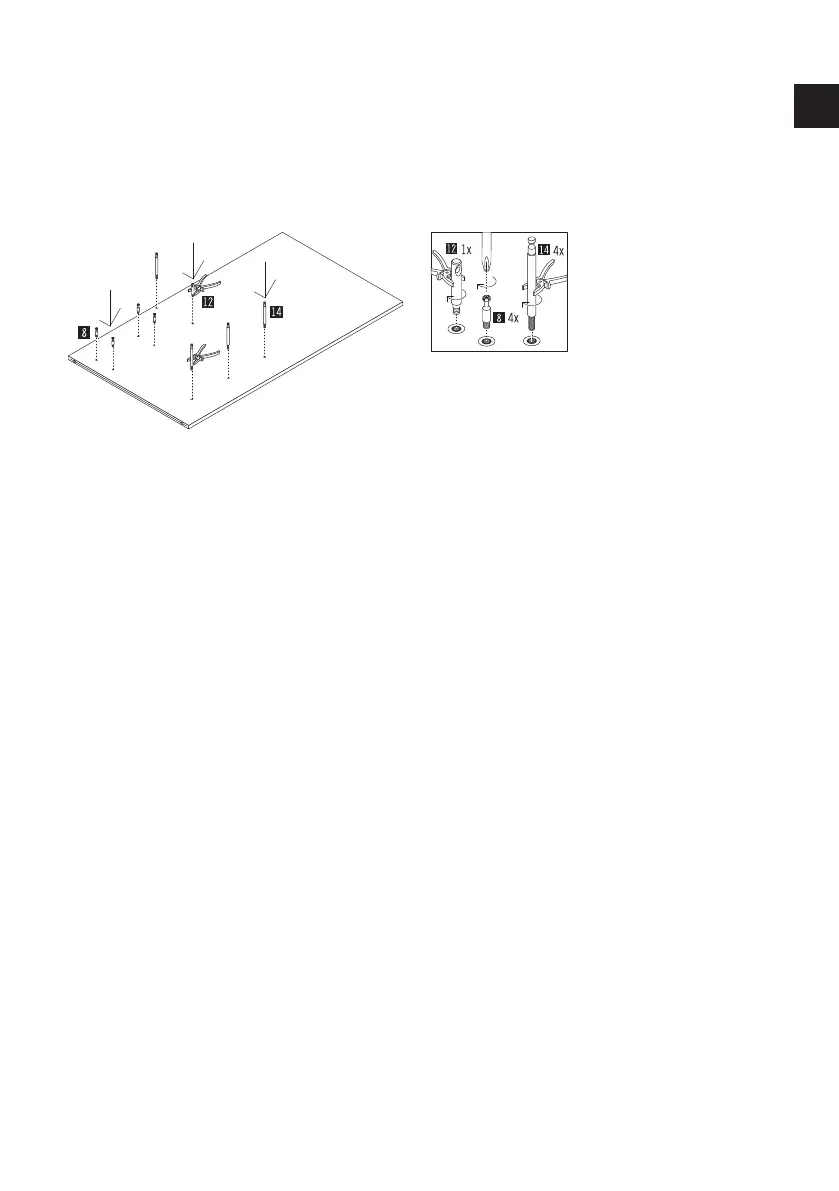

Start the assembly of the Chart partition wall
1220/1202 with partition wall A (part 1).
To do so, lay partition wall A with the cut-out
holes facing up. First, screw the 2 shelf bolts
(part 14) into the threaded sockets in the
correct positions by hand.
ATTENTION: Throughout the entire assembly,
make sure that the cover fabric does not get
snagged by the various bolts.
Tighten the two bolts with pliers. Now screw
the 4 Maxifix bolts (part 8) into the threa-
ded sockets provided for this purpose with a
Phillips screwdriver and the connector bolt
(part 12) with pliers.
IMPORTANT: Make sure that the hole in the
connector bolt points sideways to the left and
right!
