Assembly Chart 1220/1202
partition wall B
2
3

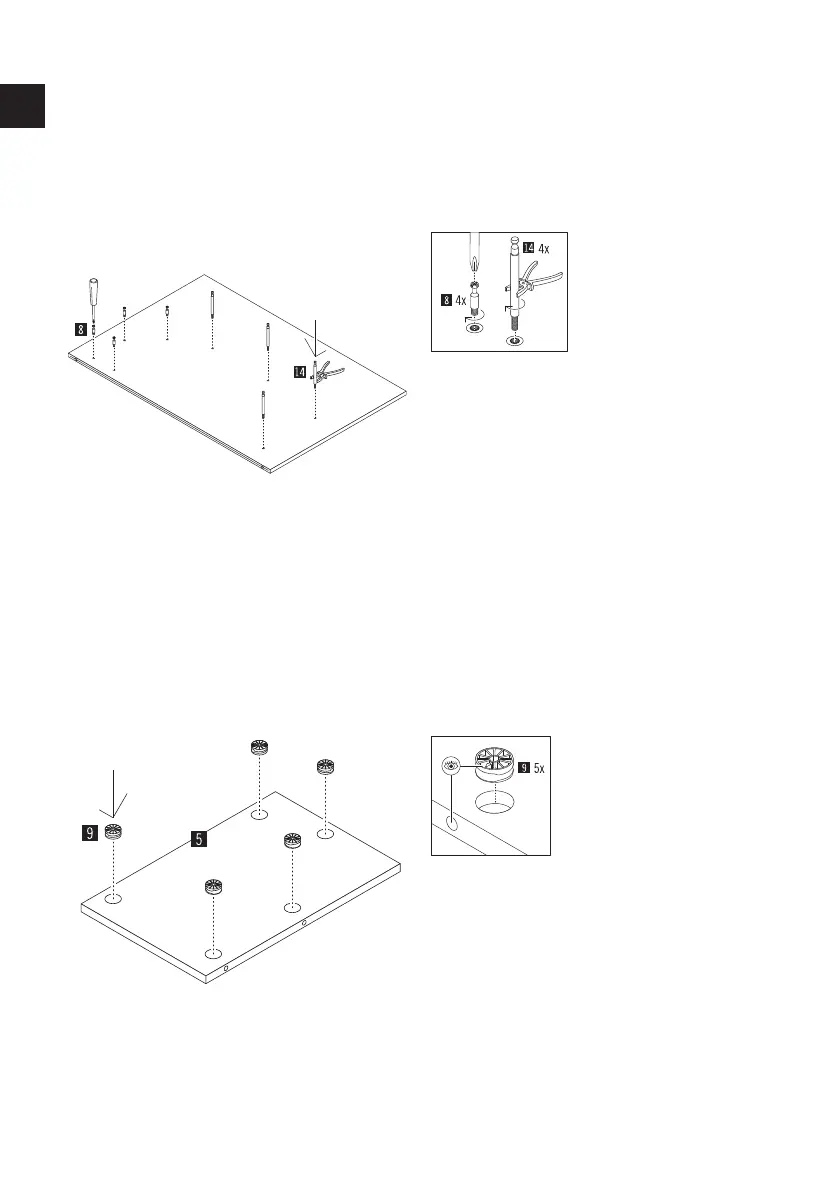

Next, lay partition wall B (part 2) on the floor
with the cut-out holes facing up. First screw
the 4 shelf bolts (part 14) into the threaded
sockets in the correct position by hand. Tighten
the 4 bolts with pliers. Now screw the 4 Maxifix
bolts (part 8) with a Phillips screwdriver and
the connector bolt (part 12) with pliers into the
threaded sockets provided for this purpose.
IMPORTANT: Make sure that the hole in the
connector bolt points sideways to the left and
right!
Now insert the 5 Maxifix housings (part 9) into
the holes provided in the shelf (part 5). Make
sure that the arrow on the housing always
points to the hole in the narrow edge.
GB
