Assembly Chart 1220/1202
shelves

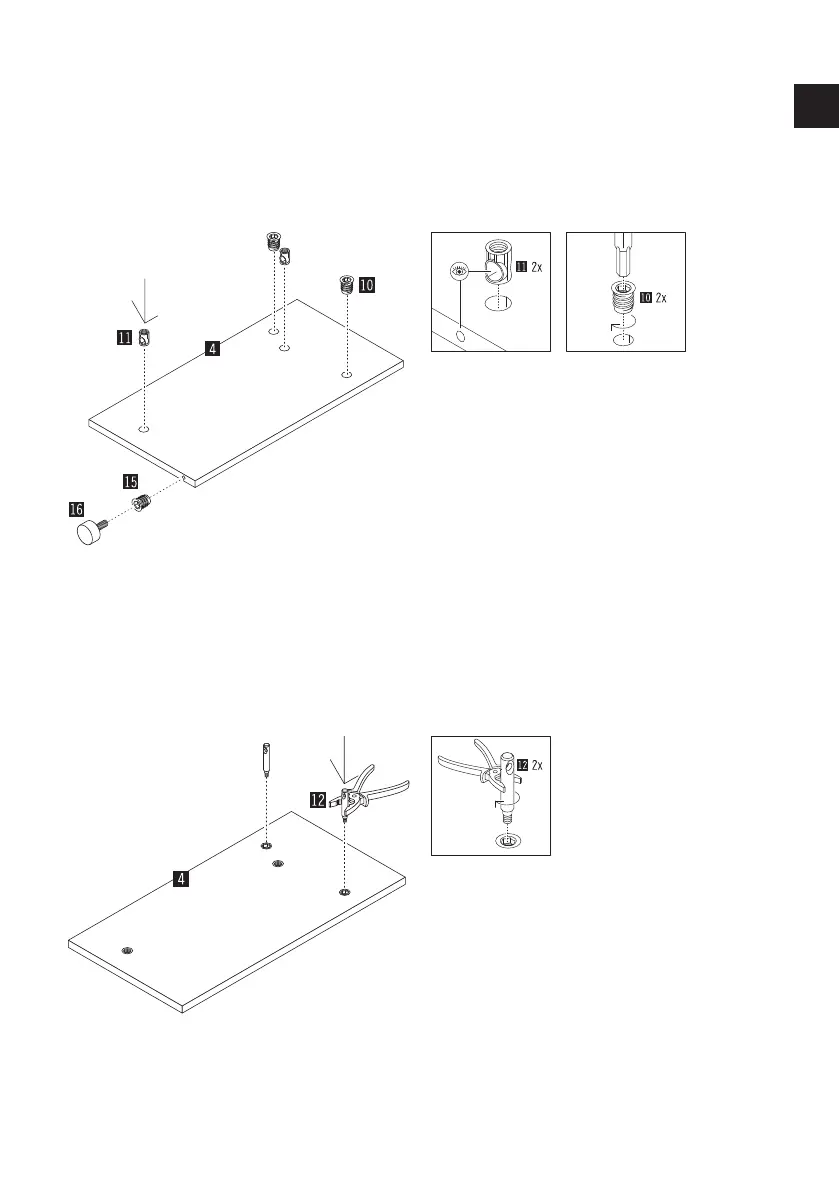

Insert the 2 connector housings (part 11) into
the holes provided for this purpose in the shelf
(part 4). Make sure that the side holes in the
housings are lined up with the side drill holes.
TIP: Check the correct position using a shelf
bolt by inserting it once into the side hole for
testing and then pulling it out again.
Carefully screw the 2 insert nuts (part 10)
straight into the provided hole in the shelf
(part 4) using a cordless screwdriver with an
Allen key bit.
Screw the 2 connector bolts (part 12) with a
pair of pliers into the threaded sockets provi-
ded.
IMPORTANT: Make sure that the hole in the
connector bolt is pointing up and down here!
GB
