Assembly Chart 1210/1201
partition wall A / shelves / partition wall B

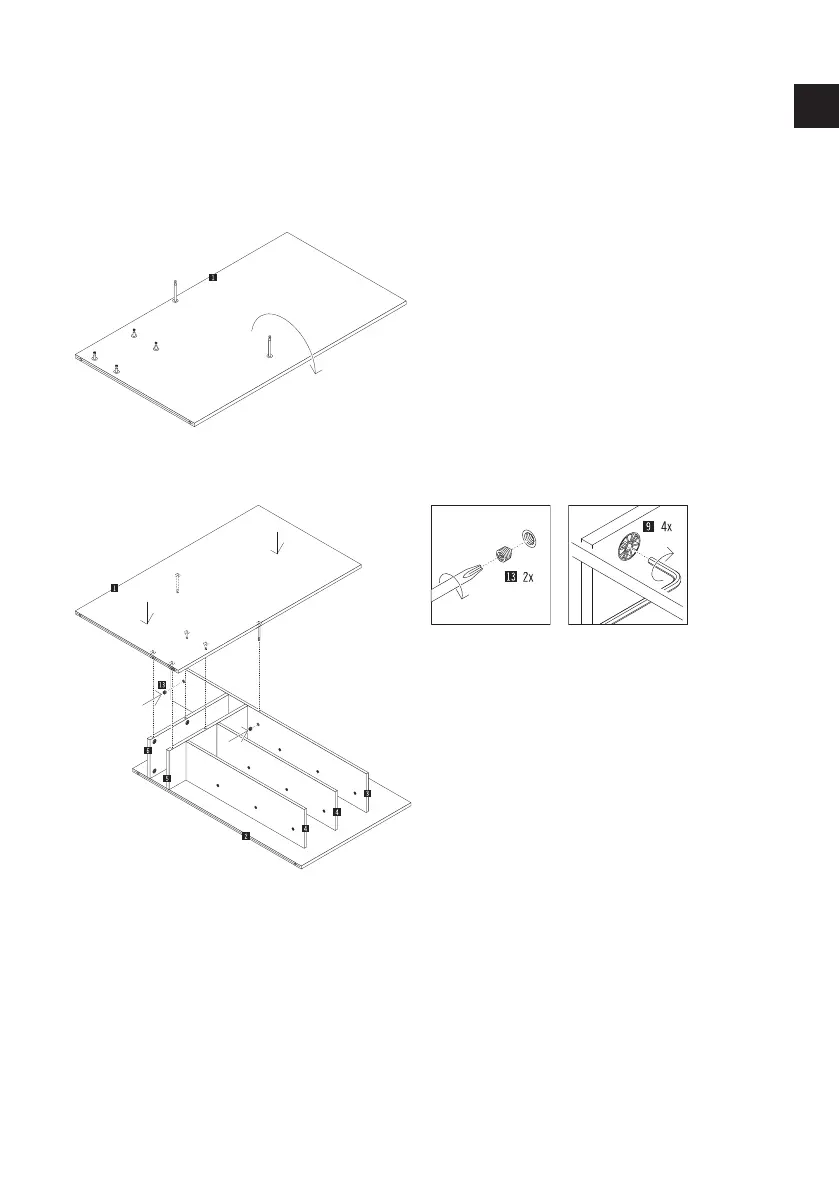

16 Turn the partition wall A (part 1) 180°.
17
Lift partition wall A (part 1) carefully using 2
persons over the assembled partition wall B
(part 2) and insert the pre-assembled bolts
into the holes provided.
Tighten the 4 Maxifix housings (part 9) with
an Allen key and screw the 2 connector grub
screws (part 13) into the connector hou-
sings with light pressure from above onto the
partition wall A (part 1) and tighten the grub
screws.
The Chart partition wall is now fully assembled.
Using 2 people, stand the wall up, carry it to
the predetermined place in the room and align
it to the floor with the help of the
4 levelling glides.
