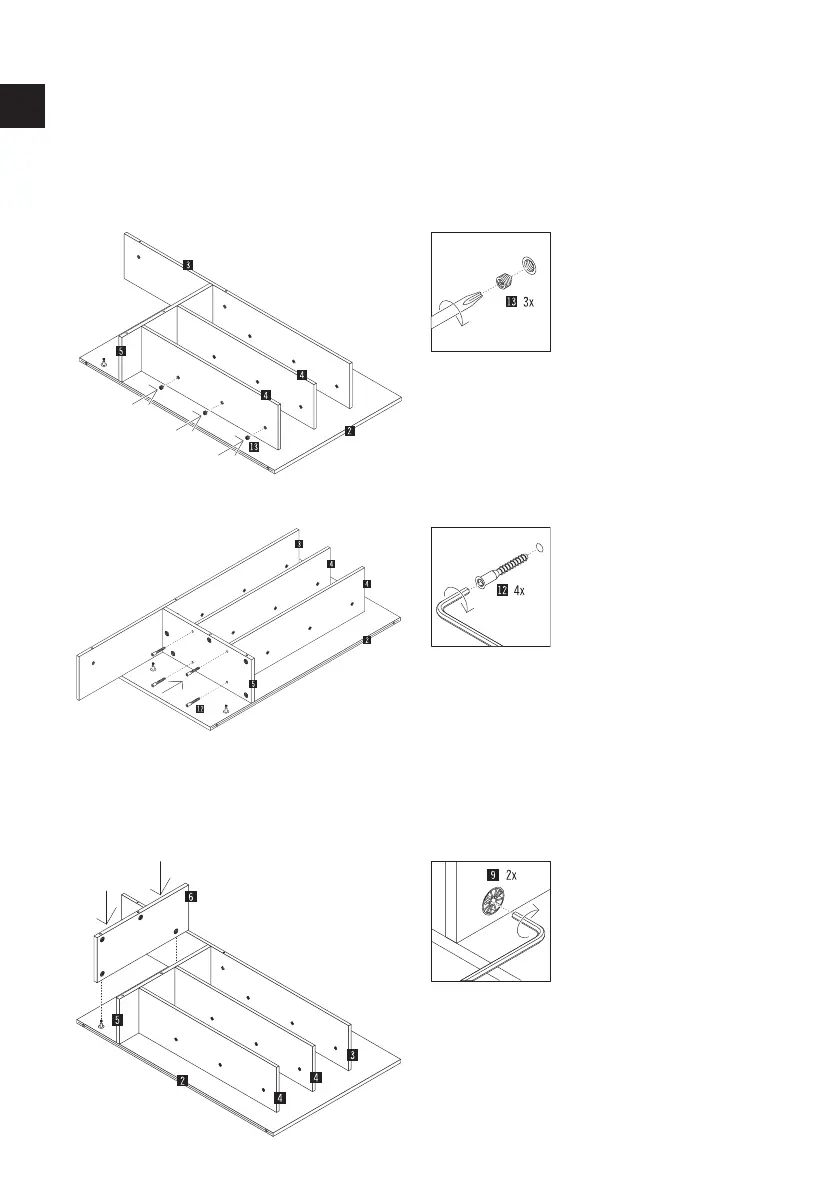

Assembly Chart 1210/1201

shelves / partition wall B

Then press the shelf (part 4) firmly onto

partition wall B and simultaneously screw the

3 connector grub screws (part 13) into the

connector housings and tighten the grub

screws.

Now fix the shelves (part 4) to the shelf

(part 5) using the 4 corner connectors

(part 12). Carefully screw the corner connec-

tors into the holes provided using a cordless

screwdriver with an Allen bit and tighten the

screws.

Place the shelf (part 6) on the bolts of partition

wall B (part 2) at the intended position. Then

tighten the two Maxifix housings (part 9) to the

shelf (part 6) using an Allen key.
