Assembly Chart 1210/1201
shelves / partition wall B
10

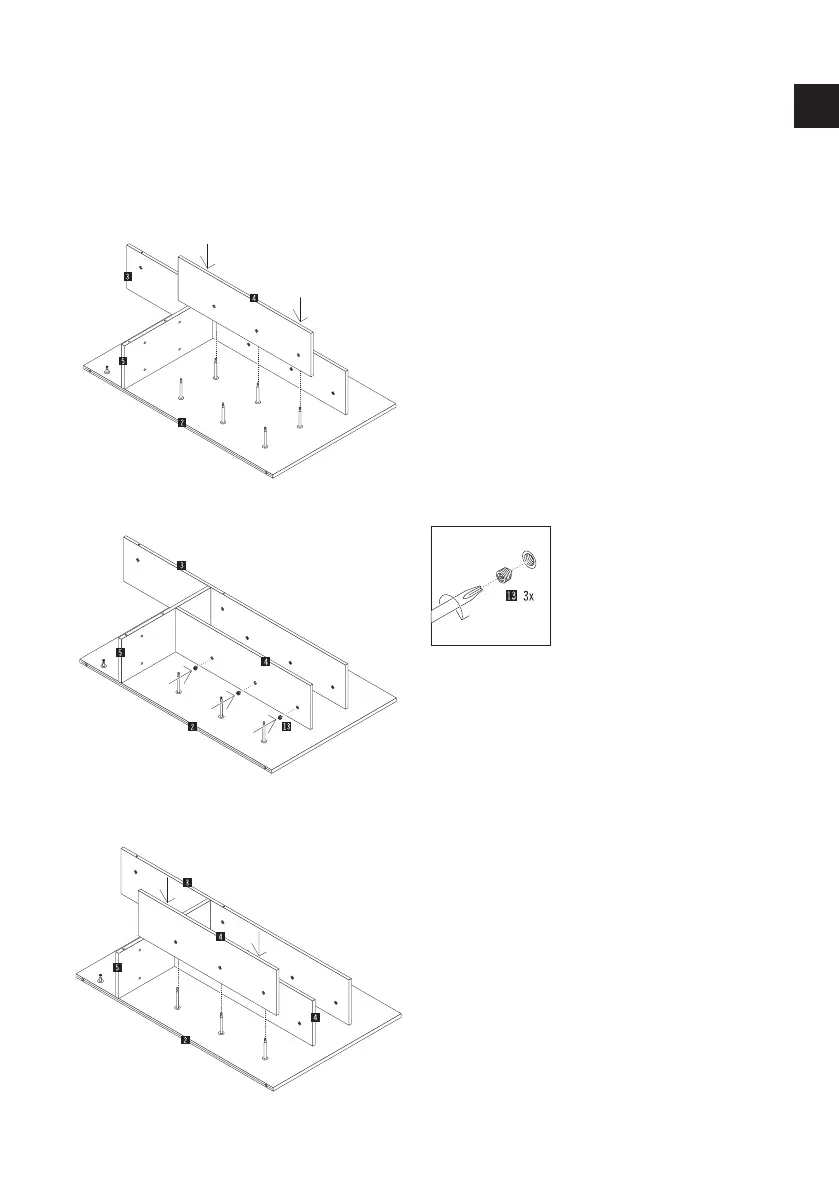

Next, place one of the two shelves (part 4)
on the bolts of partition wall B (part 2) in the
intended position
11
Then press the shelf (part 4) firmly onto par-
tition wall B and simultaneously screw the 3
connector grub screws (part 13) into the con-
nector housings and tighten the grub screws.
12 Next, place the second shelf (part 4) on
the bolts of partition wall B (part 2) in the
intended position.
