52
Assembly Chart 1210/1201
shelves / partition wall B
8
9

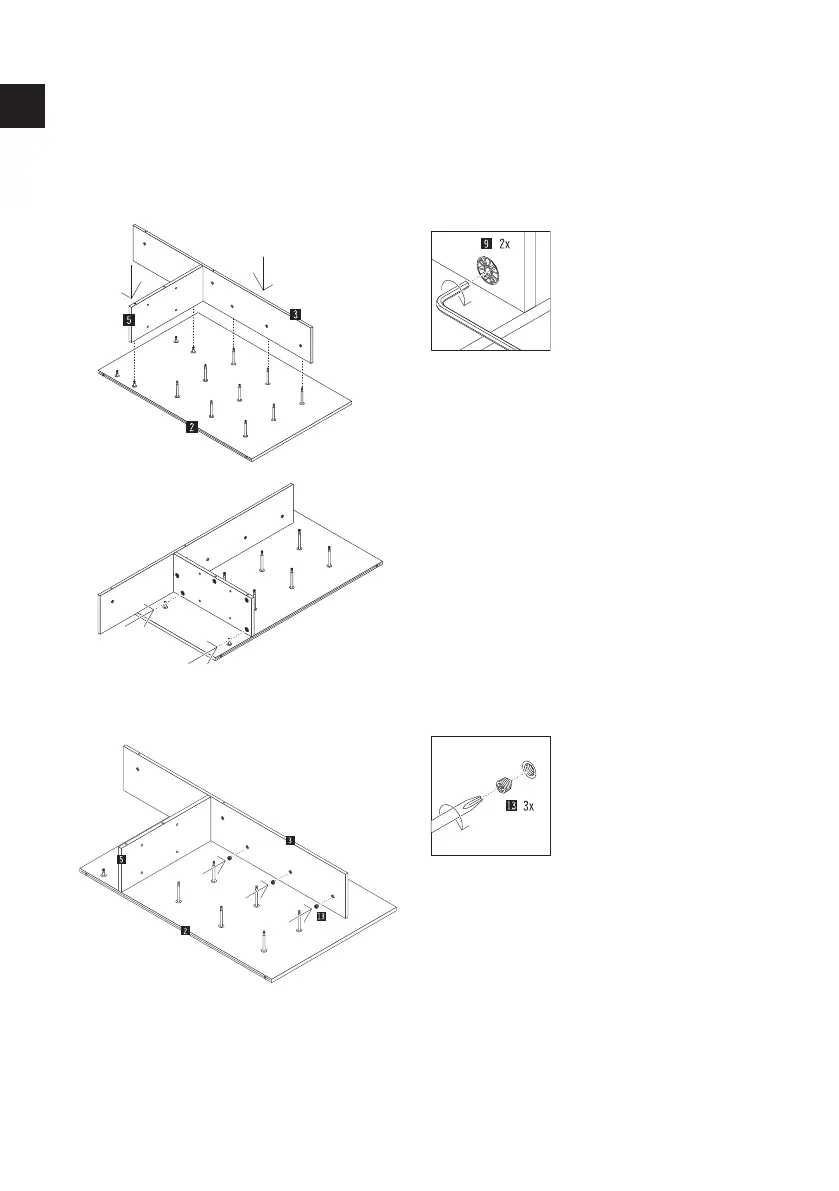

Two people should now place the two connec-
ted shelves (parts 3 + 5) on the bolts of parti-
tion wall B (part 2) at the intended position.
Then tighten the two Maxifix housings (part 9)
to the shelf (part 3) using an Allen key.
Press the shelf (part 3) firmly onto partition
wall B and simultaneously screw the 3 connec-
tor grub screws (part 13) into the connector
housings and tighten the grub screws.
GB
