The above figures are a guideline for installation purposes. The actual dimensions of the unit
may vary slightly.
To ensure that your unit works at peak efficiency please maintain sufficient space around your
unit as outlined on the next page.

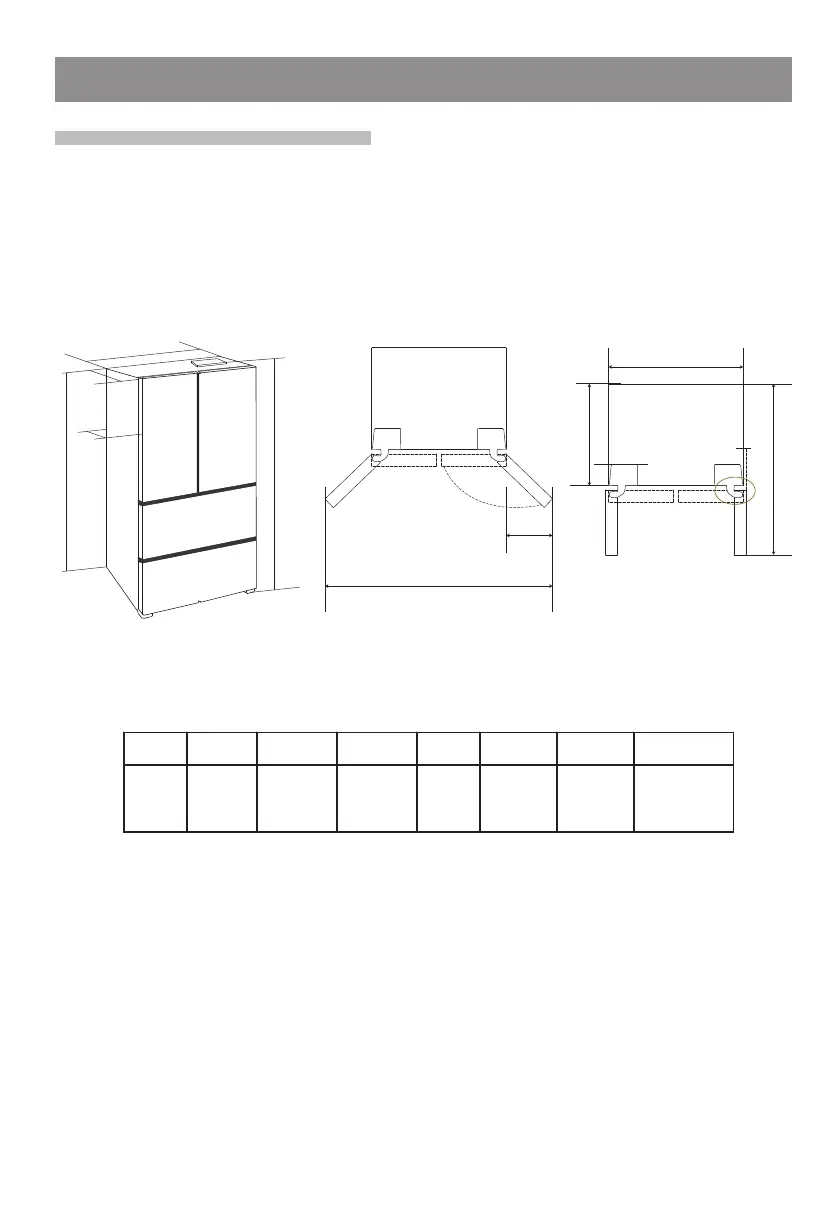

Installation dimension
Product Introduction
Select a good location to place your appliance where it is flat and easy to use.Avoid
placing the unit near heat sources,direct sunlight or moisture.
- 10 -
A B C D E F H M
551 836 1774 1830 636 1521 382 1006
B
A
E
C
149
o
D
19.8mm
H
F
A M
B
