Substitution
DANGER: Never work with the machine
raised on a jack or suspended, rather always
place it upon suitable trestles that can
maintain the wei
ght of the machine before
starting work.
For the substitution of
the tracks, proceed as
follows:
• Raise the side of the
machine on which
you wish to work
using hydraulic jacks
or a crane;
• Position the machine
on suitable trestles,
and check to see
that it is stable;
• Take off the cover “B” by unscrewing the screws “A”;
• Using two wrenches, loosen the counter-nut “C” and
completely unscrew both the counter-nut and nut
“D”;
• Take off the track “E” starting from the anterior part;
• Mount the new track lining it up with the teeth in the
drive wheel “F”;
• Fit in the anterior part of the track onto the neutral
wheel “G”;
• Register the tension by working on nut “D”;
• Check that the arrow is at 30mm;
• When the registering is done, block the counter-nut
“C”;
• Put the cover back on.

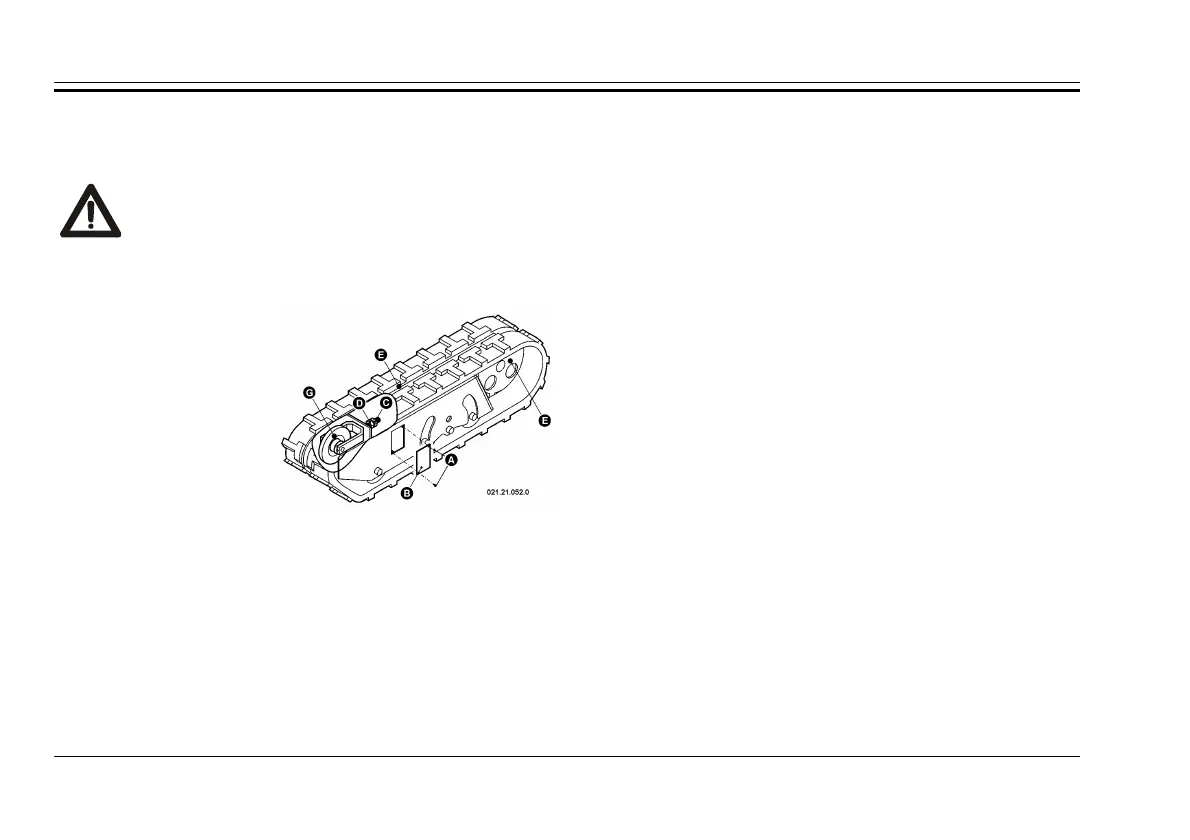

fig. 54 – Substitution of tracks
