1.5. MACHINE AND MANUFACTURER IDENTIFICATION
The data which identifies the machine and the
manufacturer are listed on the aluminium plate that is
affixed on the dashboard of the machine. The frame
number is stamped on the left of back side.
1 Manufacturer
2 Machine Type
3 Serial Numero
4 Load Capacity KG
5 Machine Mass KG
6 Motor Power KW
7 Fabrication Year
8 EC Brand
0 Frame Number

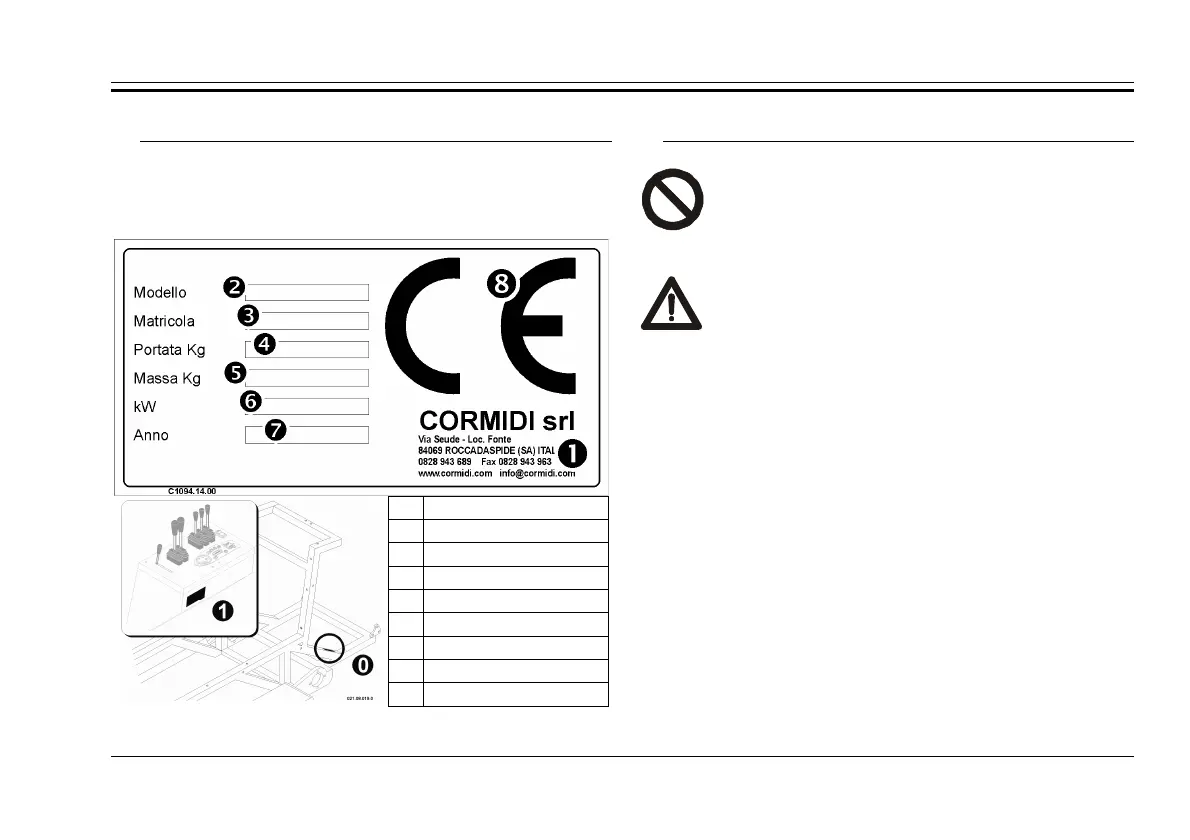

fig. 1 – Identification Plate (cod. C1094.14.00)
1.6. SAFETY DEVICES
PROHIBITED: it is strictly prohibited to use
the machine with its safety devices and
protection removed, blocked, or in any way
made non functional.
WARNING: Before beg
inning work, verify the
working order of the safety devices and
substitute any worn-
out and/or broken parts
immediately.
1.6.1. BLOCKING THE BODY
The machine is equipped with a device to block the
body in the raised position and to prevent it from lowering
accidentally.
Before carrying out any repair maintenance work with
the body raised, always block the piston following this
procedure (see fig. 2):
• raise the body;
• turn off the motor;
• remove device “A” from its slot by unscrewing wheel
“B”;
• insert the hole of the bar on the piston of the hydraulic
jack;
• Turn the bar and position it so that it is parallel to the
