ED Ice Maker Adapter Kit Installation Instruction Manual
Publication Number: 629087971TENS - 2 - © 2016, Cornelius Inc.
1. Remove the plastic hopper lid(s) from the top of the dispenser.
2. Install soft ice agitator kit (sold separately) into the dispenser.
NOTE: This soft ice agitator kit is required for proper dispenser operation using “compressed” or
“soft” ice types. Failure to install this kit may result in undesirable beverage quality.
3. Unpack and inspect the adapter kit.

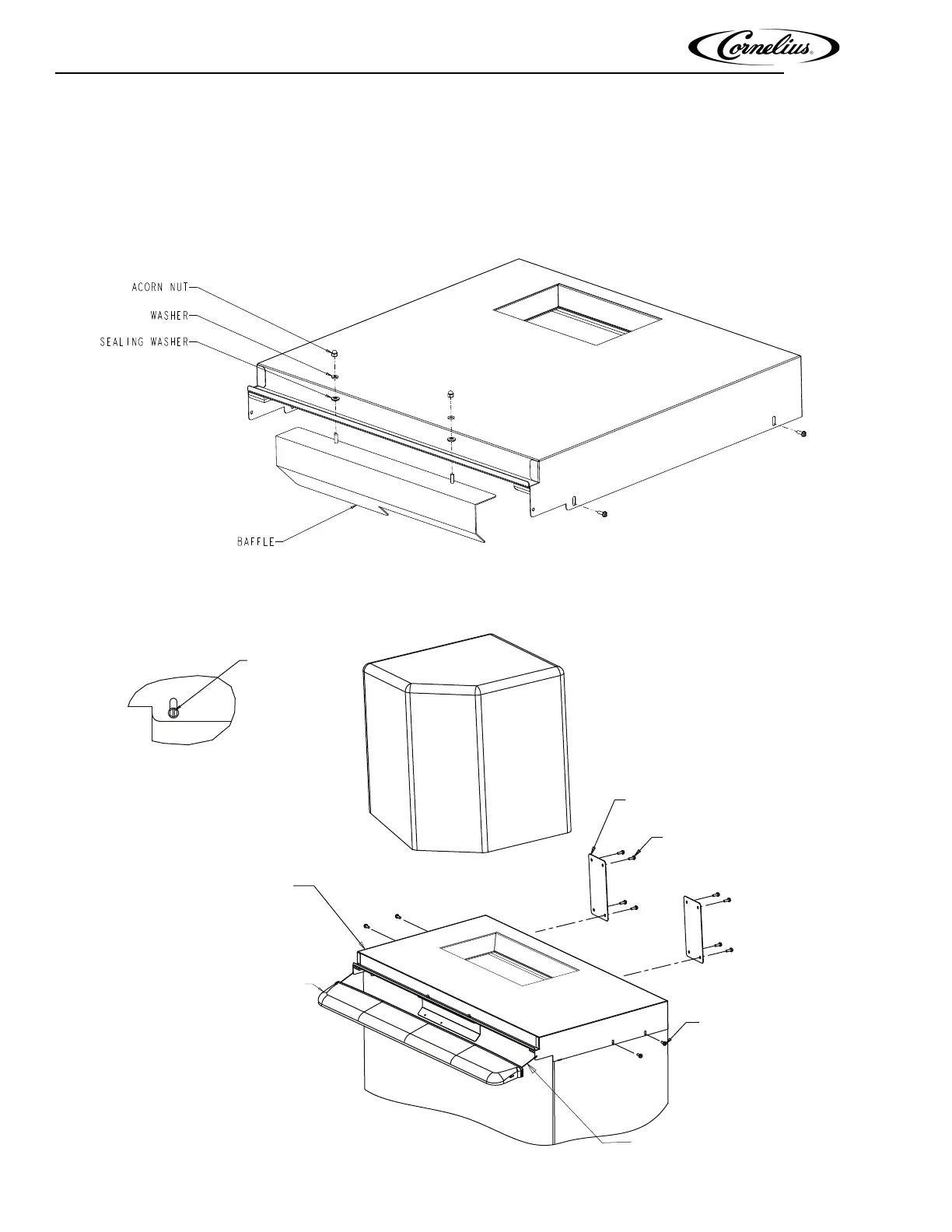

4. Assemble the baffle assembly onto the adapter lid as shown in Figure 1.
Figure 1.
5. Set and secure adapter lid onto the dispenser, as shown in Figure 2.
Figure 2. Dispenser Assembly
ICEMAKER
MOUNTING BRACKET
#8 SELF
DRILLING SCREWS
#8-32 MACHINE
SCREWS (300 ONLY)
OR
#8 SELF TAPPING SCREWS
FOR THE 1XX/2XX LIDS
ADAPTER LID
SCALE 1.000
DRILL Ø9/64 (.140) HOLES
USING BOTTOM OF SLOTTED
HOLES AS A TEMPLATE.
1XX & 2XX ONLY
MANUAL FILL LID
LANYARD
