Cornell 6NHTA - Page 20

New 3200-992
February, 2011
Cornell Pump Company
To remove the stationary cutter plate (392B) on suction inlet, loosen adjustment set screws and
remove all cap screws Figure 4. Use pry bars if necessary to removing plate from assembly. Inspect and
replace as necessary.

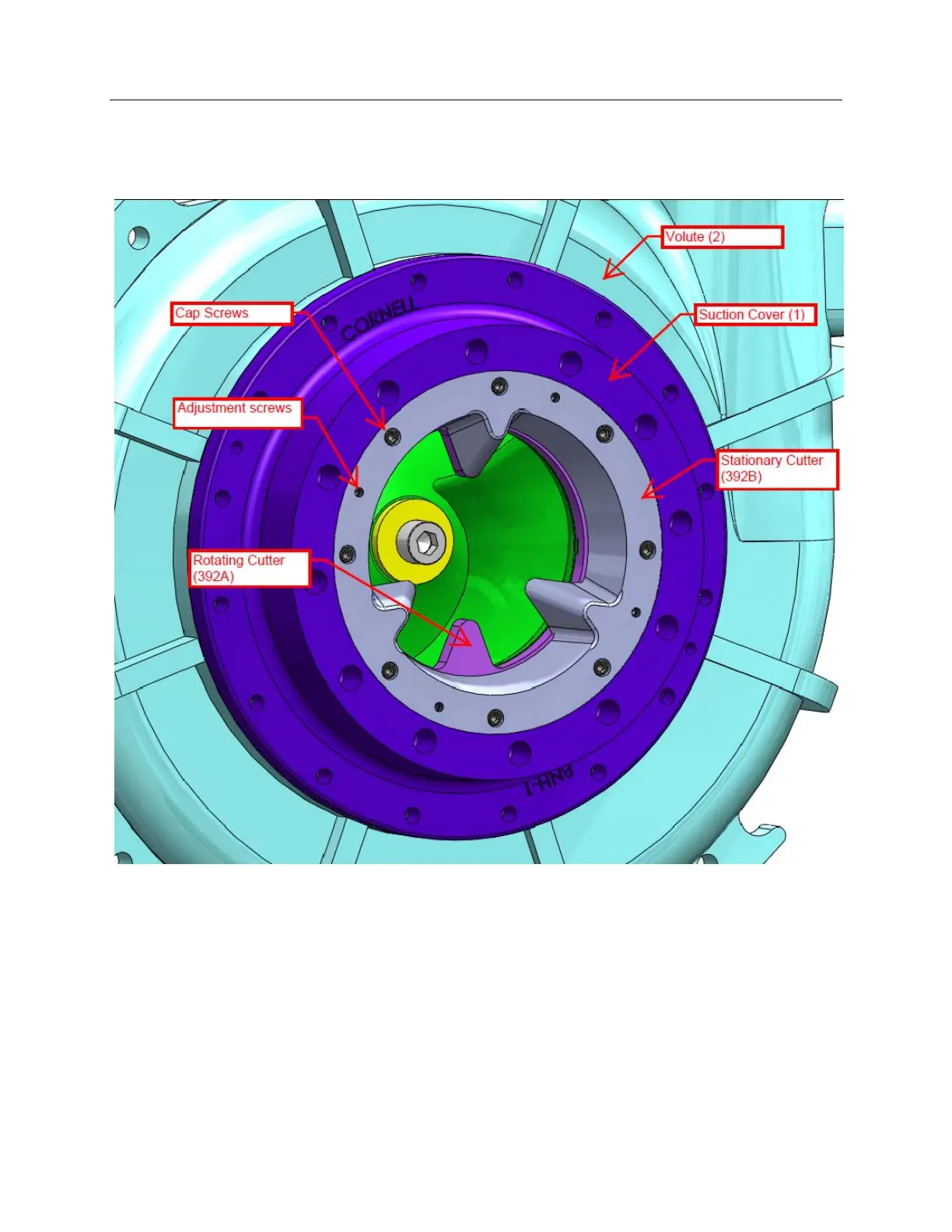

Figure 4. Stationary Cutter Plate and Suction Inlet
