New 3200-992
February, 2011
Cornell Pump Company
Assembly:

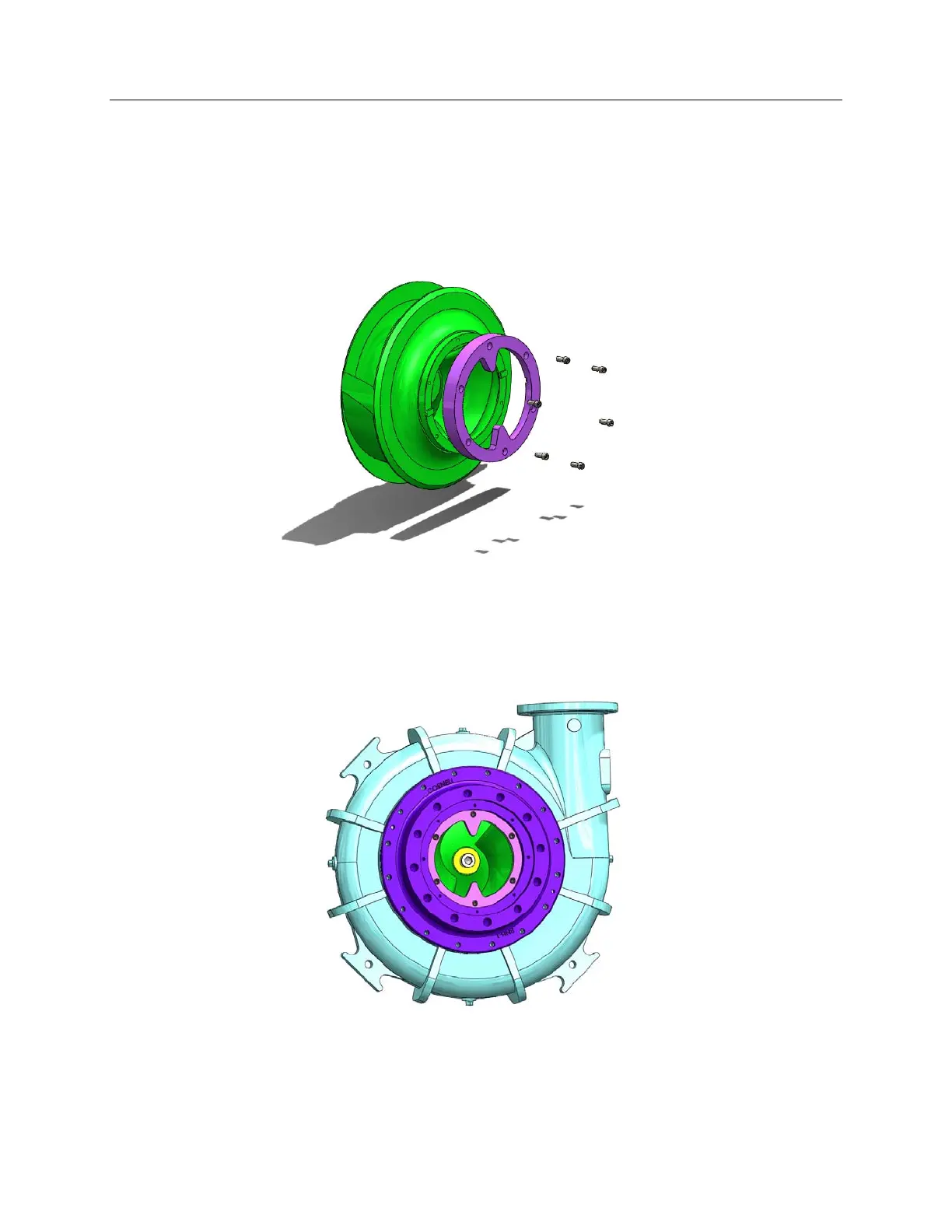

Register Rotating Cutter Ring on Impeller Figure 5. Use keyways as a guide. Bolt together using
cap screws as shown in Figure 5. Double-check backvane clearances on assembly. (Backvane to
backplate clearance should be approximately .030” Figure 8)
Figure 5. Register and Bolt Rotating Cutter Ring to Impeller
Install volute (2) and suction cover (1) (if applicable) on rotating assembly Figure 6.
Figure 6. Installed Rotating Subassembly on Volute and Suction Cover
