CHAPTER 2 : MECHANICAL ADJUSTMENT

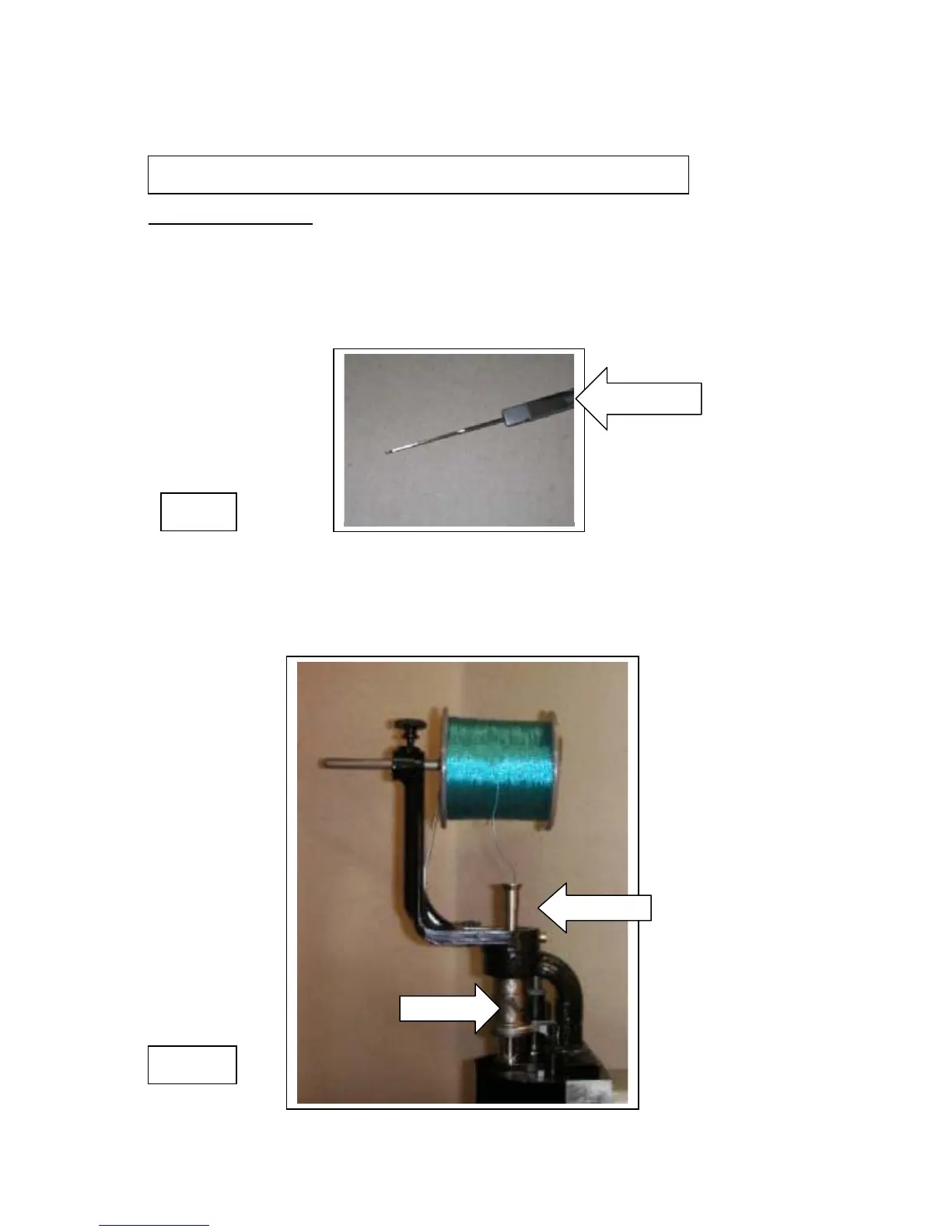

1. NEEDLE SETTING

Select carefully the needle according the thickness of the thread.

Screw tightly the needle into the needle holder C.01120 by means of the flat

tweezer delivered with the accessories. The needle should be positioned in the flat

opening of the needle holder. (Fig. A)

C.01120

FIG. A

The needle holder is passing through the tube C.10273 and should be placed in

the correct position with the screw C.10298 by hand and adjust the height so that

the material can slide under the needle without touching it. (Fig. B)

C.10273

C.10298

FIG. B
