Cornely LG3 - FOOT PRESSURE ADJUSTMENT

To Next Page

To Previous Page

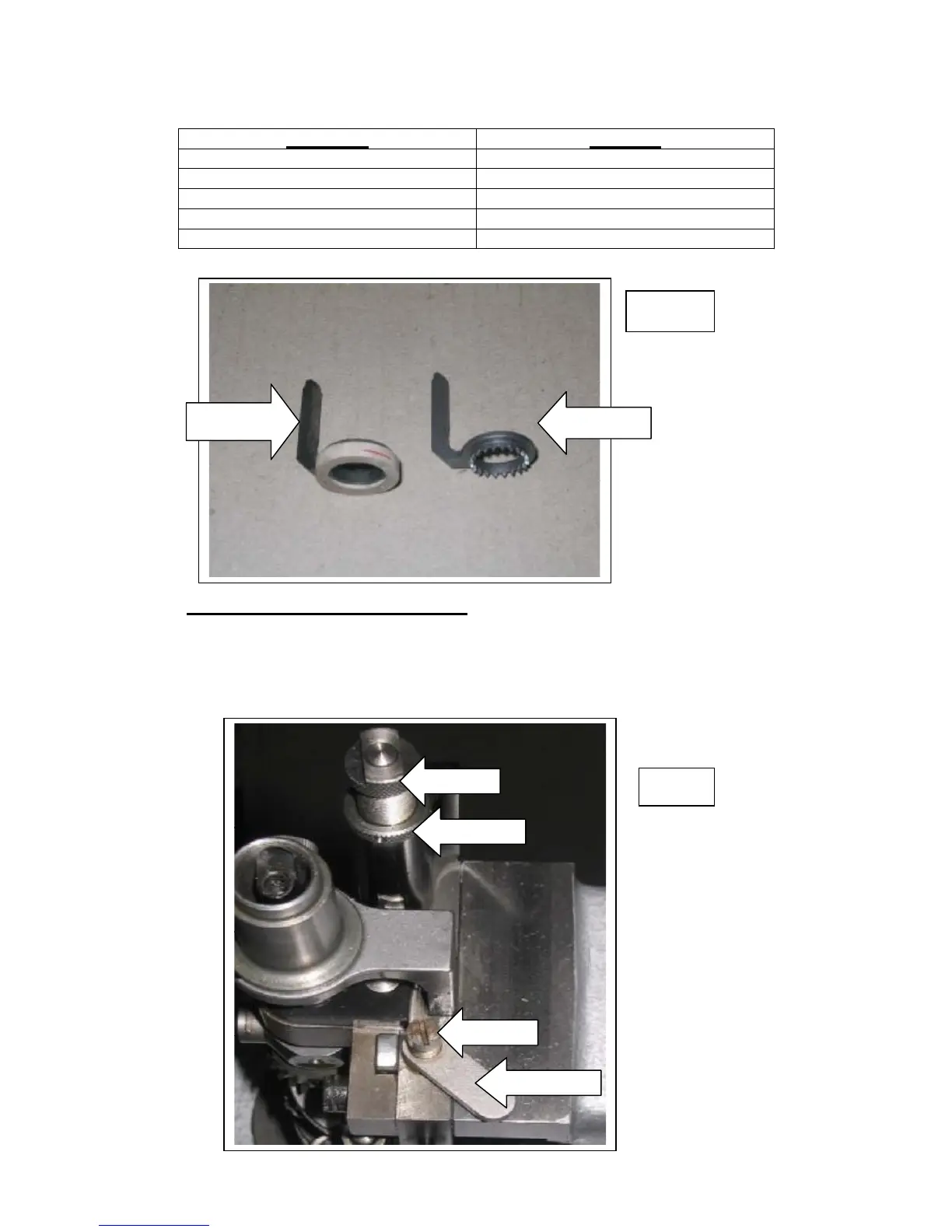

FEEDDOG RUBBER

C.00946A C.CA-26

C.00946D

C.00946L C.CA-28

C.01133 C.CA-33

C.01133D

C.00946D

C.00946A

FIG. 4

5. FOOT PRESSURE ADJUSTMENT

By unscrewing the nut : C.10152, you are regulating the tension in the

C.10151, regulating bushing. (Fig. 5)

For very high speed, ask for the spring C.10154 instead of the spring C.10171

to increase the tension of the pressure foot

C.13296

C.00100

C.10151

C.10152

FIG. 5
