Step 4: If the inner plate was removed from the box to a work surface, return the plate to the box
and secure it with the latches seen in Figure 2 before installing the feeder trunk cables.
Step 5: Before installing trunk cables, lift cable access panels as shown in Figure 15.
Figure 15

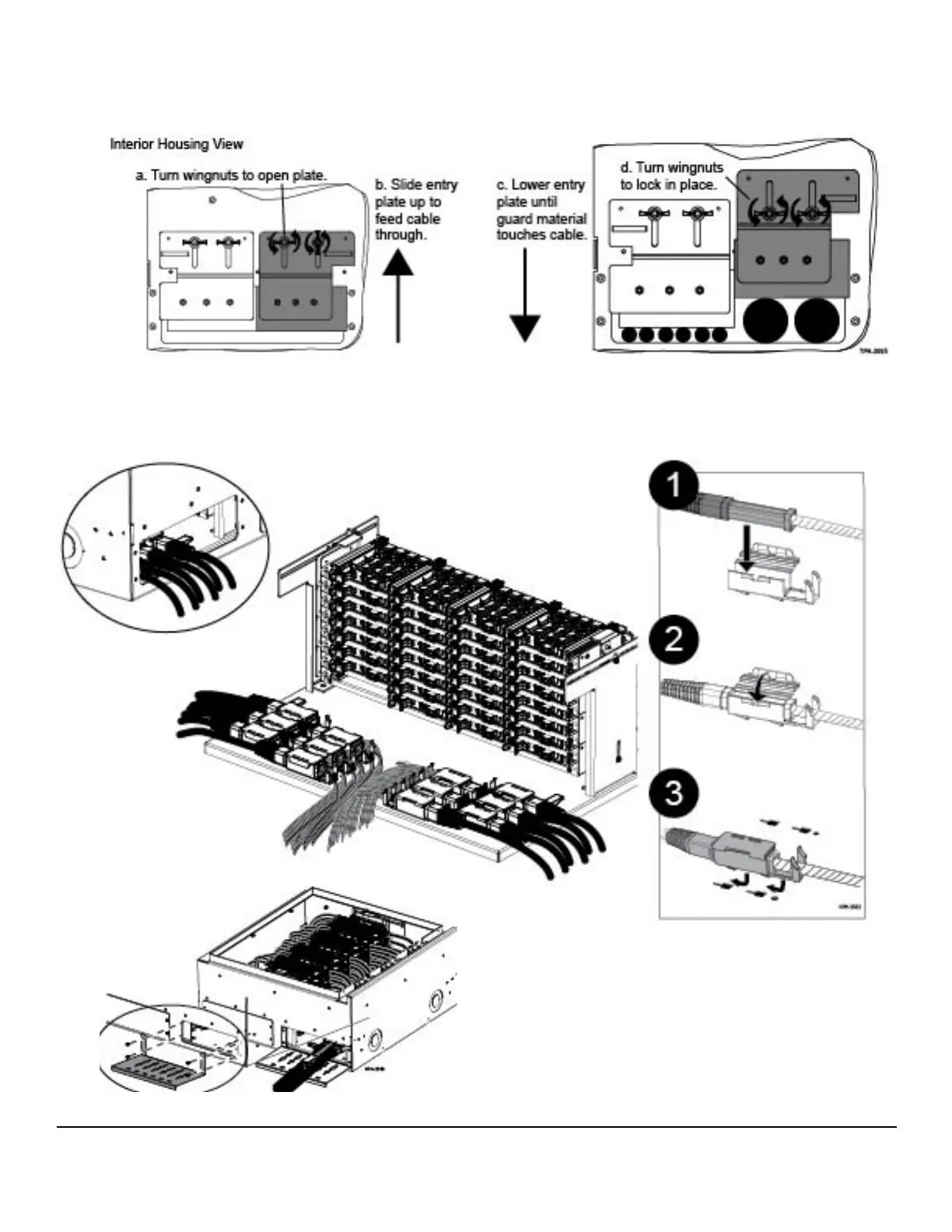

Step 6: Install the trunk cables in the cradles per bullets 1 and 2 of Figure 16. Feed the cable into
the box through the cable entry locations and slide the cradle feet in the slotted openings in
the plate as shown in bullet 3 of the gure.
Step 7: If additional trunk cables are needed,
install a furcation mounting bracket to the
exterior of the box (Figure 17) and mount
the additional trunk cables to the bracket.
Route legs into the box
Figure 16
STANDARD RECOMMENDED PROCEDURE 003-825-AEN ISSUE 7 | NOVEMBER 2020 | PAGE 9 OF 11
