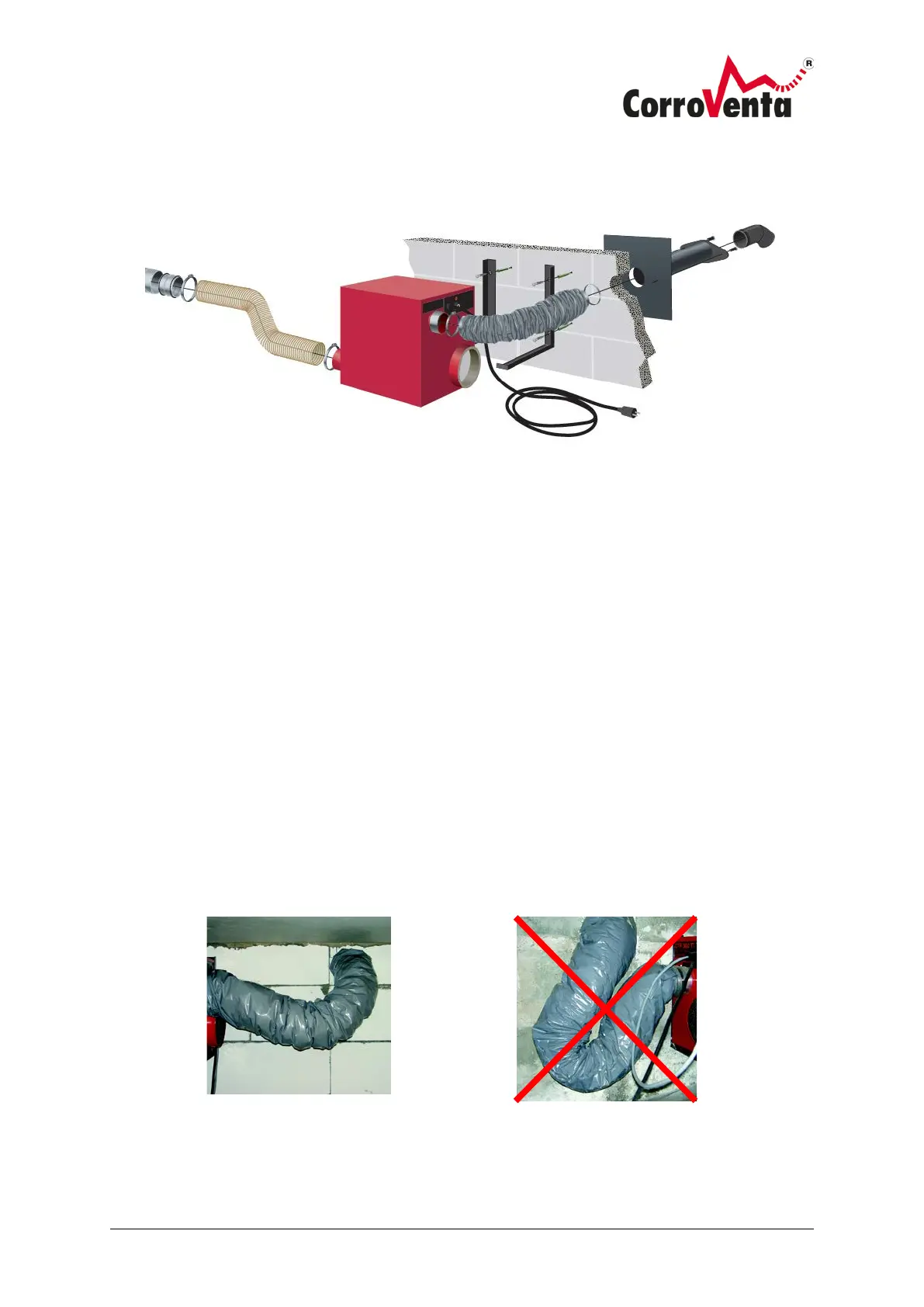

In the crawl space:
Wall brackets
In the location where the dehumidifier is to be installed, approx.1 metre from the dry air duct and a
maximum of 0.7 metres from the wet air outlet in the foundation wall, use the hole template
supplied with the installation kit and mark out the position of the holes. Ensure that the distance
between the installed dehumidifier's upper edge and the roof (sub floor/blind floor) is at least 50 mm
so that air can flow between them. Do not install higher than this, because it can cause a risk of
overheating.
Drill out the four Ø12 mm holes according to your markings and insert the supplied plugs. Screw the
wall mountings in using the four coach screws supplied. Place the machine on the wall mountings.
Wet air hose
The silencer hose is installed at a slight bend between the wet air connector and the Ø80 mm pipe
that enters through the foundation wall from the installed wall plate. Carefully make a small hole in
the outer sheath of the hose at the lowest point of the hose so that any condensation can run out.
Take care when doing this, so that the hose is not pressed together preventing the air flow through
the hose.
Correct installation, slight bend. Incorrect installation, sharp bend
