Cors-Air M25Y User Manual

28) * PULLEY (115 or 130 mm)
29) BEARING OF REDUCTION PULLEY (n° Pcs. 2)
30) CAM OF THE PULLEY
N.B. BOLTS AND NUTS ARE NOT MENTIONED SINCE THEY ARE INCLUDED IN THE
PACKAGE OF THE SPARE PARTS.
* FOR THE PIECES MARKED WITH AN ASTERISK PLEASE SPECIFY SIZE.

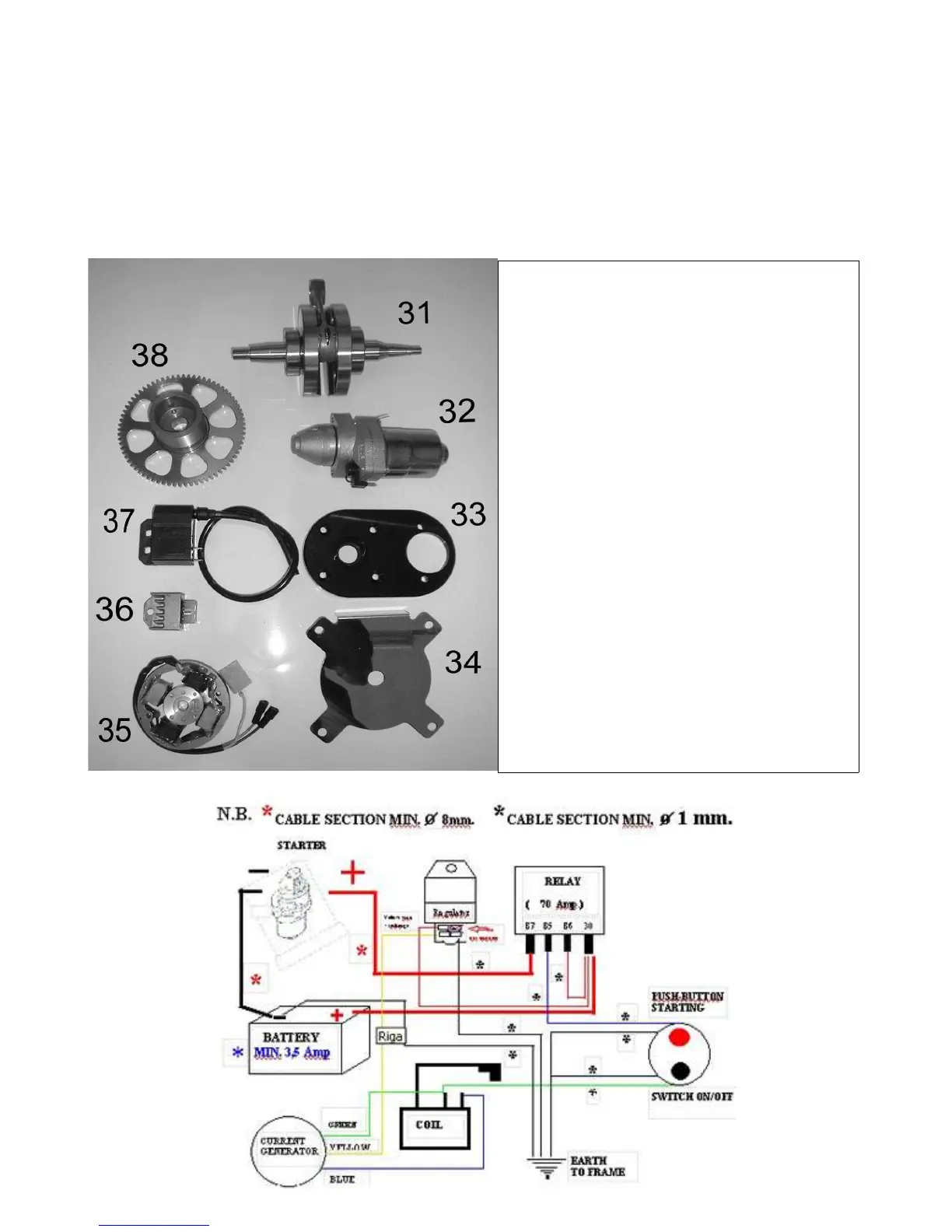

PARTS FOR M25 BLACK DEVIL WITH ELECTRIC START
31) DRIVE SHAFT COMPLETE OF
CONNECTING ROD
32) ELECTRIC STARTER
33) FLANGE FOR ELECTRIC
STARTER
34) COVER OF BACK SUPPORT BASE
35) IGNITION
36) CHARGE REGULATOR
37) COIL
38) CROWN WHEEL COMPLETE OF
PINION

Cors-Air M25Y Specifications

General

Brand	Cors-Air
Model	M25Y
Category	Engine
Language	English
