Corsair AX1200i Cable Configuration
AX1200i
Qty Length Connector/Cable
1 610mm ± 10mm 1 ATX Cable 24-PIN (20+4)
2 650mm ± 10mm 1 EPS/ATX12V Cable 8-PIN (4+4)
6 600mm ± 10mm 1 PCI-E Cable 8PIN (6+2)
3 700mm ± 10mm 4 SATA Cable (4 SATA)
1 850mm ± 10mm 4 SATA Cable (4 SATA)
3 750mm ± 10mm 4 Peripheral Cable (4 PIN)
2 101mm ± 5mm 1 Floppy Drive Cable (4 PIN)
1 800mm ± 10mm 1 PMBUS Cable (4PIN)

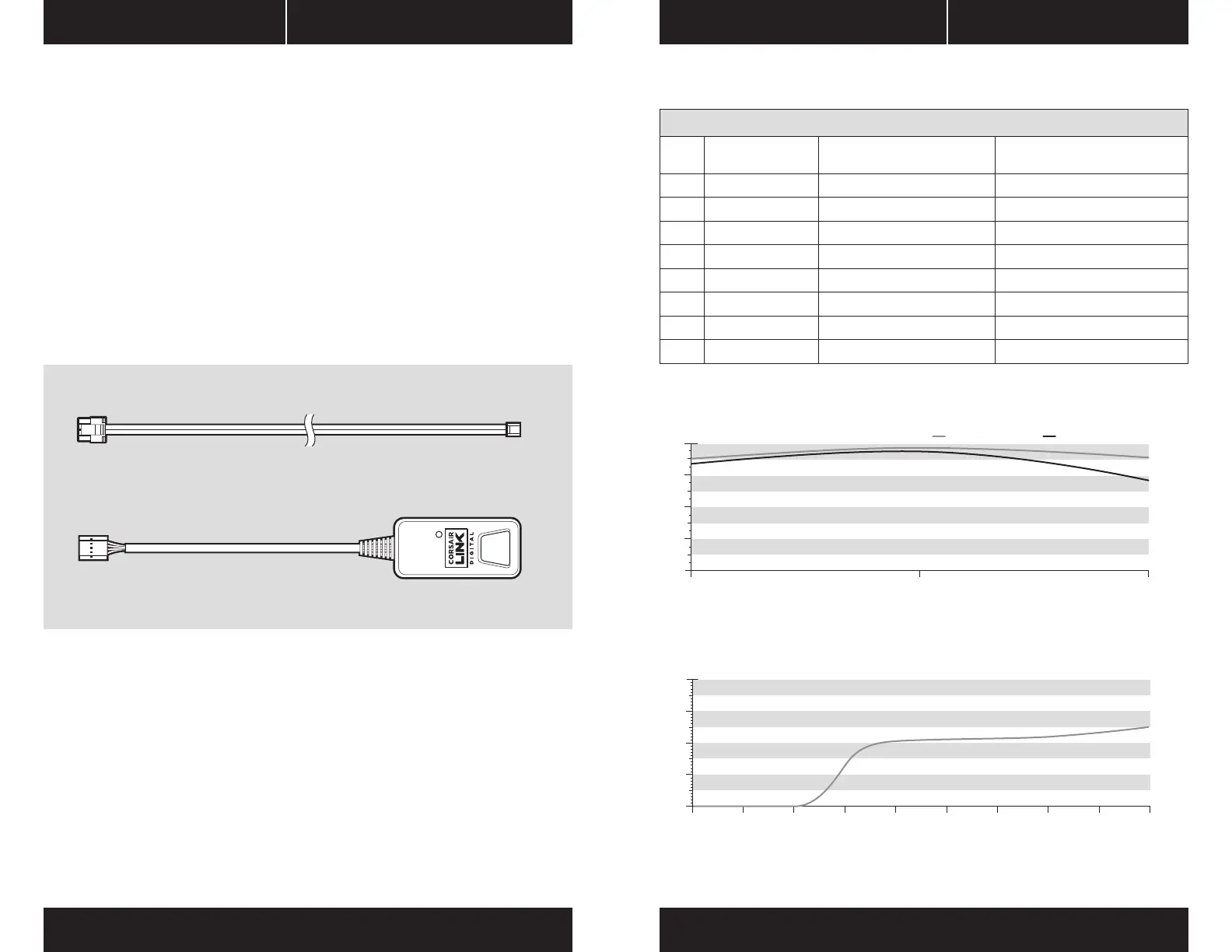

Corsair AX1200i Power Supply Eciency
Corsair AX1200i Power Supply Fan Noise Curve
Power Supply Specifications
• Dimensions: 150mm(W) x 86mm(H) x 200mm(L) (AX1200i)
• Dimensions: 150mm(W) x 86mm(H) x 160mm(L) (AX760i, AX860i)
• MTBF: 100,000 Hours
Package Contents
• Corsair AXi Series power supply unit
• Modular cable set
• User Manual
• AC power cord
• Cable ties
• Mounting screws
• Corsair case badge
• Carrying bag
• Corsair Link™ Digital interface cable
• Corsair Link™ USB Dongle
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
SYSTEM LOAD
% EFFICIENCY
INPUT 230Vac
INPUT 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
SYSTEM LOAD
% EFFICIENCY
INPUT 230Vac INPUT 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
COMM PORT
SELF TEST
COMM PORT
SELF TEST
Corsair Link™ Digital interface cable
Corsair Link™ USB Dongle

Corsair AX760i Specifications
