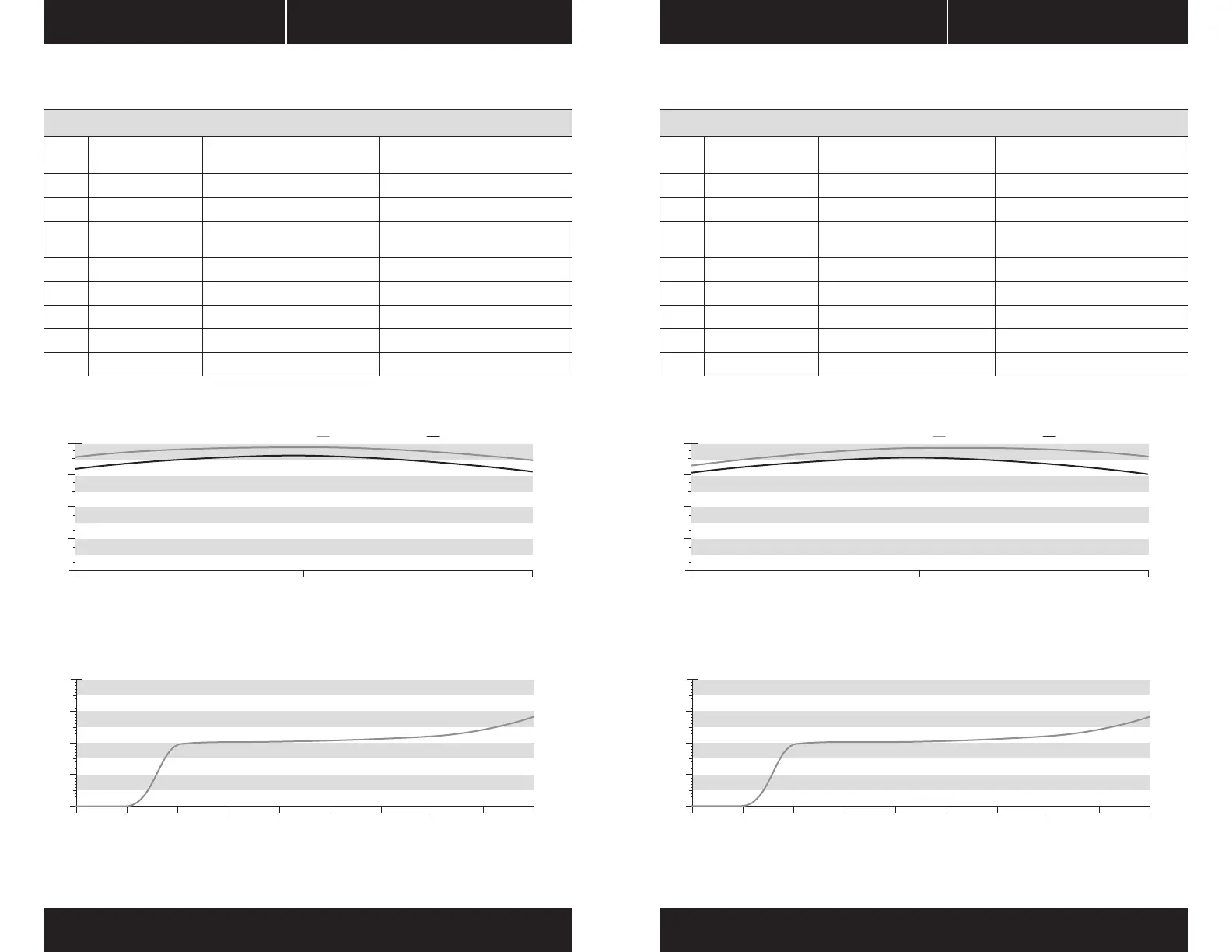

Corsair AX760i User Manual

AXi SERIES
™
AXi SERIES
™
9 10
Corsair AX860i Cable Configuration
AX860i
Qty Length Connector/Cable
1 610mm ± 10mm 1 ATX Cable 24-PIN (20+4)
2 650mm ± 10mm 1 EPS/ATX12V Cable 8-PIN (4+4)
6
600mm ± 10mm;
750mm ± 10mm
1 PCI-E Cable 8PIN (6+2)
2 700mm ± 10mm 4 SATA Cable (4 SATA)
1 850mm ± 10mm 4 SATA Cable (4 SATA)
2 750mm ± 10mm 4 Peripheral Cable (4 PIN)
2 101mm ± 5mm 1 Floppy Drive Cable (4 PIN)
1 800mm ± 10mm 1 PMBUS Cable (4PIN)
Corsair AX860i Power Supply Eciency
Corsair AX860i Power Supply Fan Noise Curve
Corsair AX760i Cable Configuration
AX760i
Qty Length Connector/Cable
1 610mm ± 10mm 1 ATX Cable 24-PIN (20+4)
2 650mm ± 10mm 1 EPS/ATX12V Cable 8-PIN (4+4)
6
600mm ± 10mm;
750mm ± 10mm
1 PCI-E Cable 8PIN (6+2)
2 700mm ± 10mm 4 SATA Cable (4 SATA)
1 850mm ± 10mm 4 SATA Cable (4 SATA)
2 750mm ± 10mm 4 Peripheral Cable (4 PIN)
2 101mm ± 5mm 1 Floppy Drive Cable (4 PIN)
1 800mm ± 10mm 1 PMBUS Cable (4PIN)
Corsair AX760i Power Supply Eciency
Corsair AX760i Power Supply Fan Noise Curve
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
SYSTEM LOAD
% EFFICIENCY
INPUT 230Vac
INPUT 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
SYSTEM LOAD
% EFFICIENCY
INPUT 230Vac
INPUT 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
SYSTEM LOAD
% EFFICIENCY
INPUT 230Vac INPUT 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
SYSTEM LOAD
% EFFICIENCY
INPUT 230Vac INPUT 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%

Corsair AX760i Specifications

General

Brand	Corsair
Model	AX760i
Category	Power Supply
Language	English
