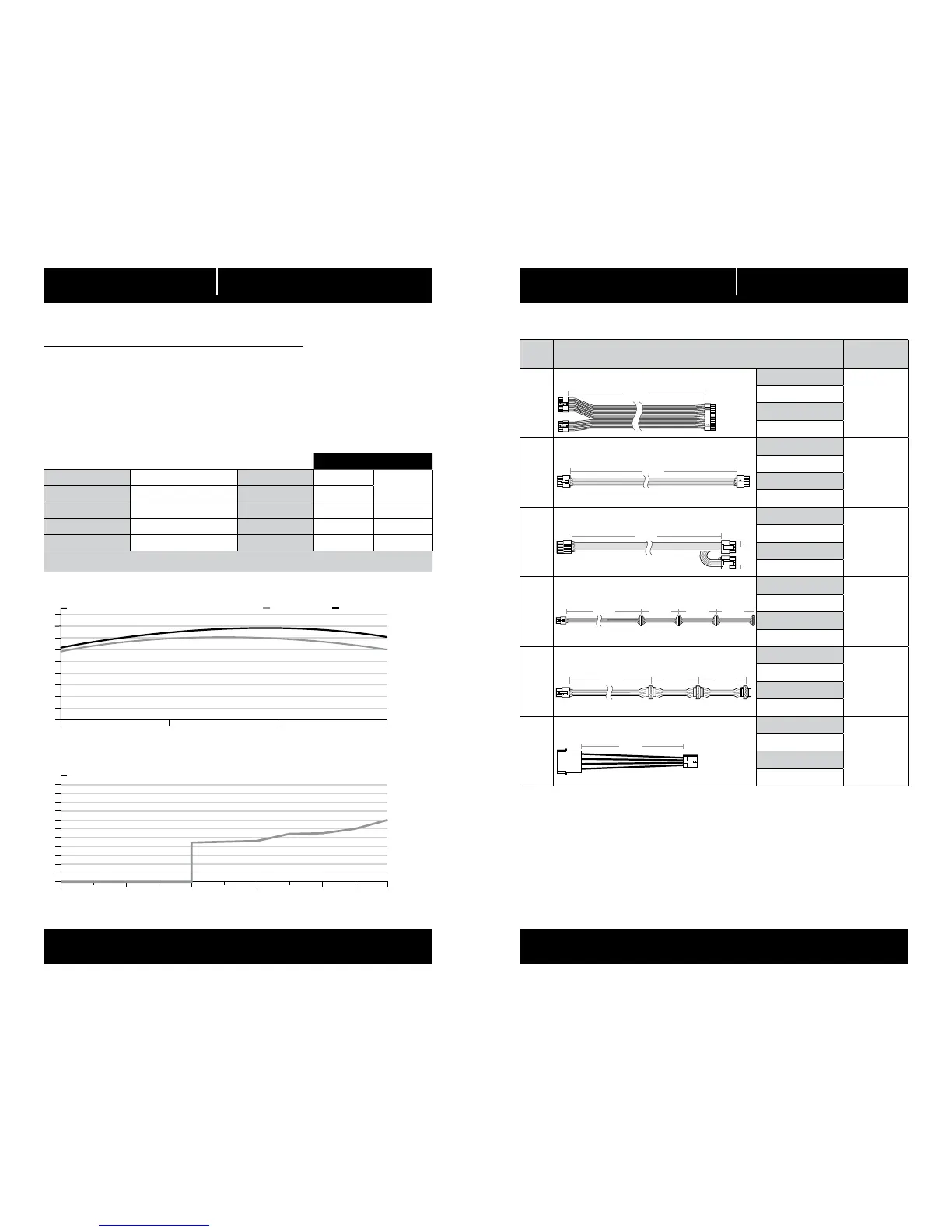

Corsair AX850 User Manual

5 6
AX SERIES
™
AX SERIES
™
Max Load Max Output
Model RPS0113 +3.3V 20A
100W
Part No. CP-9020151 +5V 20A
AC Input Rating 100-240V +12V 70A 840W
Input Current 11A–5.5A -12V 0.3A 3.6W
Frequency 50–60Hz +5Vsb 3A 15W
Total Power: 850W
AX850
Dimensions: 150mm (W) x 86mm (H) x 170mm (L)
Package contents
• CORSAIR AX Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag
• Cable ties
• CORSAIR case badge
• User manual
Qty Description Total Length
1
ATX Cable 24 pin (20+4)
Connectors Per Cable
610mm
(± 10mm)
1
Total Connectors
1
2
EPS/ATX12V 8 pin (4+4) cable
Connectors Per Cable
650mm
(± 10mm)
1
Total Connectors
2
3
PCIe 8 pin (6+2) cable
Connectors Per Cable
775mm
(± 10mm)
2
Total Connectors
6
4
SATA cable (4 SATA)
Connectors Per Cable
800mm
(± 10mm)
4
Total Connectors
16
2
Peripheral cable (4-pin)
Connectors Per Cable
750mm
(± 10mm)
3
Total Connectors
6
1
Floppy adapter (4-pin)
Connectors Per Cable
101mm
(± 5mm)
1
Total Connectors
1
CORSAIR AX850 DC cable listing
650mm
650mm
610mm
610mm
600mm
150mm
675mm
100mm
CORSAIR AX850 power table
450mm 100mm 100mm
100mm 100mm550mm
550mm 100mm 100mm 100mm
455mm 115mm 115mm 115mm
22
20
18
16
14
12
10
8
6
4
2
0
0 850170 340 510 680
98
96
94
92
90
88
86
84
82
80
10010
5020
CORSAIR AX850 power supply eciency
22
20
18
16
14
12
10
8
6
4
2
0
0 850170 340 510 680
98
96
94
92
90
88
86
84
82
80
10010
5020
CORSAIR AX850 power supply fan noise curve
input 115Vac
input 230Vac
% EFFICIENCY
SYSTEM LOAD
Fan Noise (db)
Power Output - Watts
101mm

Corsair AX850 Specifications

General

Total power	850 W
Power factor	0.99
AC input voltage	90 - 264 V
Power protection features	Over current, Over voltage, Short circuit, Under voltage
Maximum input current (@110V)	+12V A
Power Factor Correction (PFC) type	Active
Fan diameter	120 mm
Product color	Black
Cabling type	Fully-Modular
EPS power connector (8-pin)	Yes
Floppy drive power connector	2
Number of SATA power connectors	12
PCI Express power connectors (8-pin)	4
Peripheral (Molex) power connectors (4-pin)	8
Purpose	PC
ATX version	2.31
EPS version	2.92
Noise level	- dB
80 PLUS certification	80 PLUS Gold
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX

Weight and Dimensions

Depth	160 mm
Width	150 mm
Height	86 mm
