Corsair AXi Series User Manual

3 4
AXi SERIES
™
AXi SERIES
™
Power supply specifications
• Dimensions: 150mm (W) x 86mm (H) x 200mm (L)
• MTBF: 100,000 hours
Package contents
• CORSAIR AX1600i power supply unit
• Modular cable set
• User manual
• AC power cord
• Cable ties
• Mounting screws
• CORSAIR case badge
• Carrying bag
• CORSAIR Link
™
USB cable
• Replacement magnetic side labels

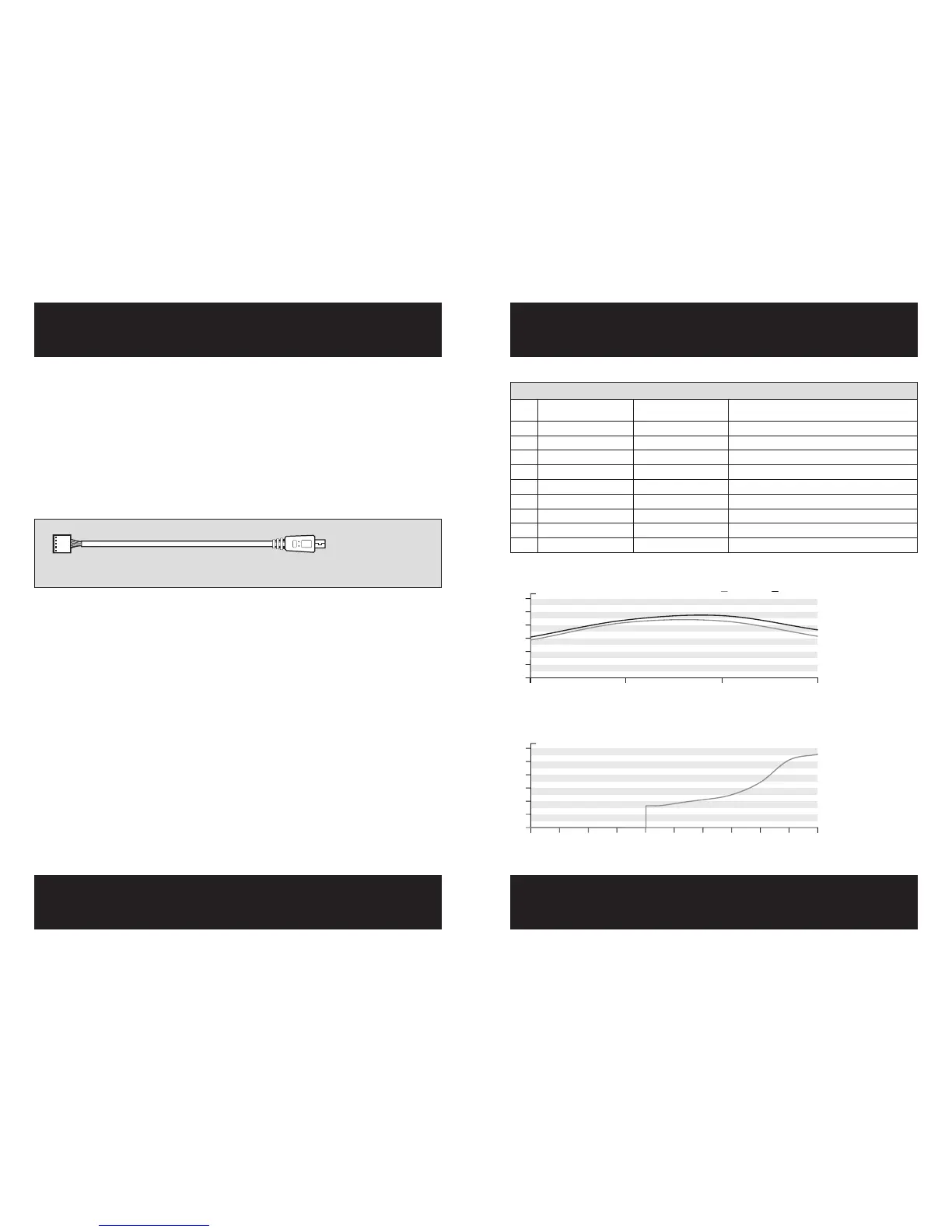

CORSAIR AX1600i cable configuration
AX1600i
Qty Length Connector/cable
1 610mm ± 10mm 1 ATX cable 24PIN (20+4)
2 650mm ± 10mm 1 EPS/ATX12v cable 8PIN (4+4)
6 650mm ± 10mm 1 PCI-E cable 8PIN (6+2)
2 775mm ± 10mm 2 PCI-E cable 8PIN (6+2)
2 665mm ± 10mm 2 SATA cable (2 SATA)
3 800mm ± 10mm 4 SATA cable (4 SATA)
3 650mm ± 10mm 3 Peripheral cable (4PIN)
2 101mm ± 5mm 1 Floppy drive cable (4PIN)
1 800mm ± 50mm 1 USB cable (9PIN)
CORSAIR AX1600i power supply eciency
EFFICIENCY (%)
SYSTEM LOAD (%)
inputVacinputVac
dB @ 25°C AMBIENT
SYSTEM LOAD








 







     
CORSAIR AX1600i power supply fan noise curve
EFFICIENCY (%)
SYSTEM LOAD (%)
inputVacinputVac
dB @ 25°C AMBIENT
SYSTEM LOAD







  








    
CORSAIR Link
™
USB Cable
