INSTALLATION

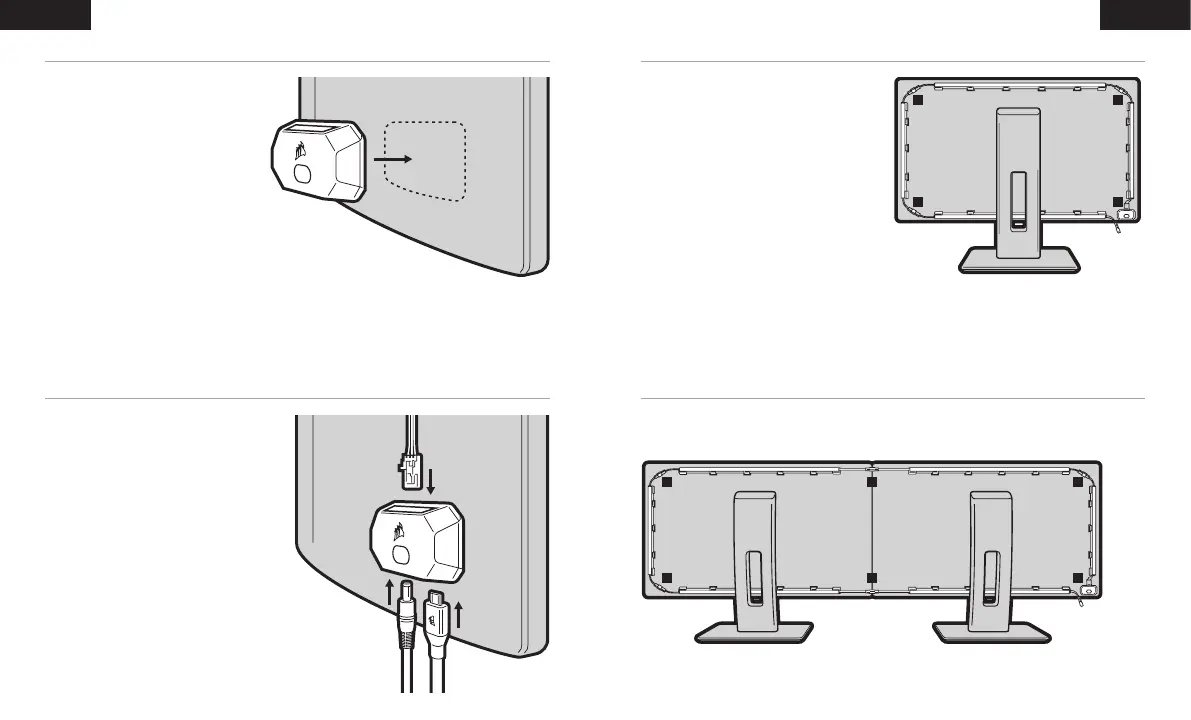

4. For single and dual monitors setup, follow
the suggested configuration and the
lighting strips setup in iCUE accordingly.
On the back of the monitor, mount the
vertical 250mm short strip on the right
side first (1) and connect to the horizontal
450mm long strip on the top side (2), and
continue with the 250mm short strip on
the left side (3), finish on the bottom side
with the 450mm long strip (4).
For dual monitors, optional 450mm long strips can be purchased separately to expand the
connection to the 2nd monitor.
INSTALLATION
1. Clean and wipe the surface of the
mounting area with a soft and clean cloth.
2. Peel the adhesive tape on the back of the
metal plates and position them correctly
and adhere them on the desired location.
Attach the controller to the back of
the monitor or place it securely on the
installed area with the mounting plates.
3. Connect one end of the power cord to
the power supply and the other end to
an electrical outlet, and then connect
the round end of the power supply cord
to the controller.
Plug the micro USB cable into the
controller then plug the USB A to the
available USB port in the system.
