Corsair PROFESSIONAL SERIES AX1200i User Manual

76
PROFESSIONAL SERIES
™
PROFESSIONAL SERIES
™

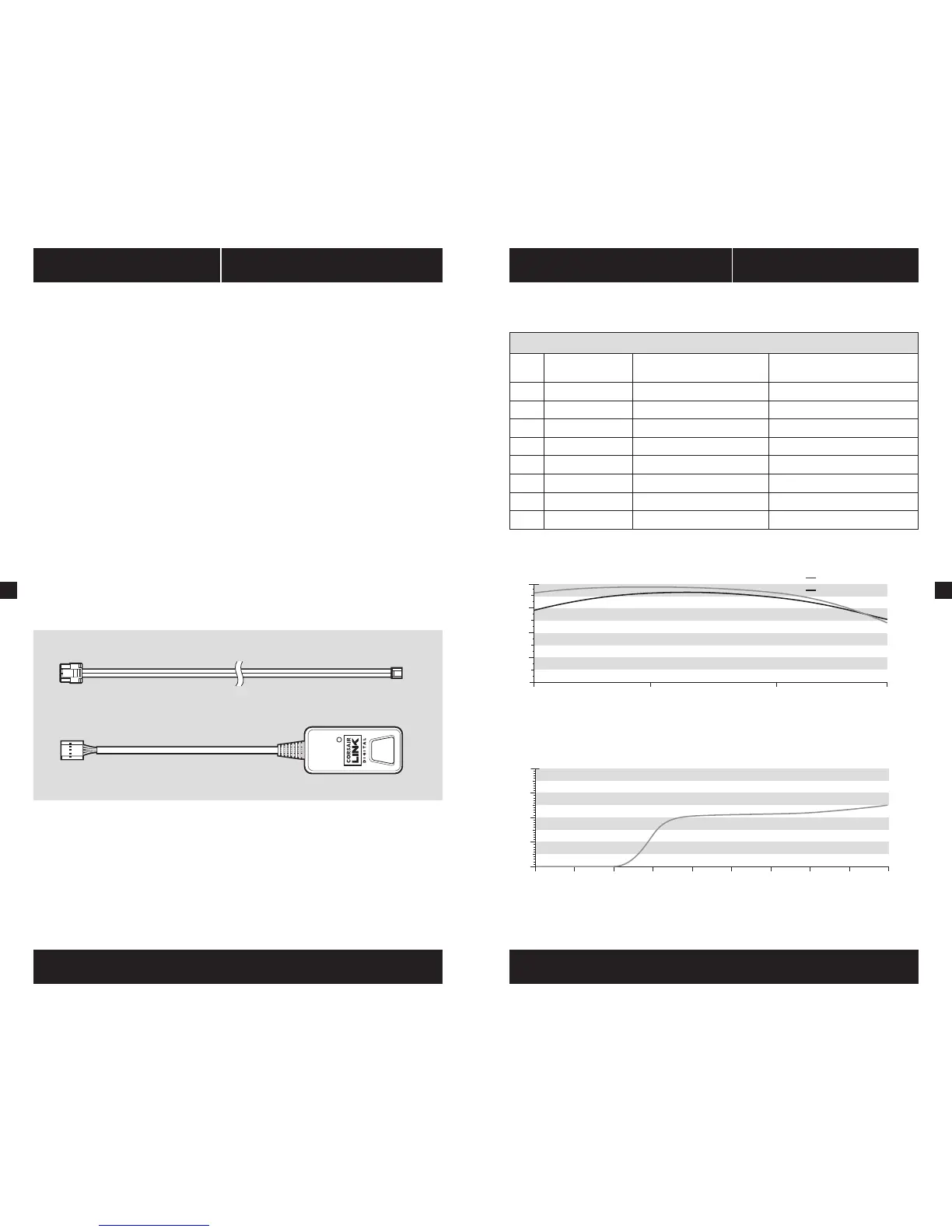

Corsair Cable Configuration
AX1200i
Qty Length Connector/Cable
1 610mm ± 10mm 1 ATX Cable 24-PIN (20+4)
2 650mm ± 10mm 1 EPS/ATX12V Cable 8-PIN (4+4)
6 600mm ± 10mm 1 PCI-E Cable 8PIN (6+2)
3 700mm ± 10mm 4 SATA Cable (4 SATA)
1 850mm ± 10mm 4 SATA Cable (4 SATA)
3 750mm ± 10mm 4 Peripheral Cable (4 PIN)
2 101mm ± 5mm 1 Floppy Drive Cable (4 PIN)
1 800mm ± 10mm 1 PMBUS Cable (4PIN)
Power Supply Eciency
Power Supply Fan Noise Curve
• Over-Temperature Protection (OTP)
OTP ensures that the PSU will shut down when the internal temperature reaches a set
point. This is usually as a result of internal current overloading or a fan failure.
• Short-Circuit Protection (SCP)
A short-circuit is defined as any output impedance of less than 0.1 ohms. Amongst
other things, SCP ensures that the PSU shuts down should the 3.3V, 5V and 12V rails
short to any other rail, or to ground. It also ensures that no damage should occur to the
unit, or your PC’s components, in the event of a short.
Power Supply Specifications
• Dimensions: 150mm(W) x 86mm(H) x 200mm(L)
• MTBF: 100,000 Hours
Package Contents
• Corsair Professional Series power supply unit
• Modular cable set
• User Manual
• AC power cord
• Cable ties
• Mounting screws
• Corsair case badge
• Carrying bag
• Corsair Link™ Digital interface cable
• Corsair Link™ USB Dongle
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
20%10% 40% 60% 80% 100%
40
0
20
30
94
SYSTEM LOAD
78
82
86
90
100% 20% 10%50%
% EFFICIENCY
INPUT 230Vac
INPUT 115Vac
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
20%10% 40% 60% 80% 100%
40
0
20
30
94
SYSTEM LOAD
78
82
86
90
100% 20% 10%50%
% EFFICIENCY
INPUT 230Vac
INPUT 115Vac
COMM PORT
SELF TEST
COMM PORT
SELF TEST
Corsair Link™ Digital interface cable
Corsair Link™ USB Dongle

Corsair PROFESSIONAL SERIES AX1200i Specifications

General

Wattage	1200W
Efficiency Rating	80 PLUS Platinum
Efficiency	92% Typical
Modular	Fully Modular
MTBF	100, 000 hours
Dimensions	150mm x 86mm x 200mm
ATX Connector	1
EPS Connector	2
SATA Connector	16
Molex Connector	8
Floppy Connector	2
Corsair iCUE Support	Yes
Over Voltage Protection	Yes
Over Power Protection	Yes
Short Circuit Protection	Yes
Over Temperature Protection	Yes
Under Voltage Protection	Yes
Input Voltage	100-240V
Operating Temperature	0°C to 50°C
Input Frequency Range	47-63Hz
Cooling	140mm Fluid Dynamic Bearing Fan
Fan Type	140mm Fluid Dynamic Bearing Fan
