9 10
ENGLISH

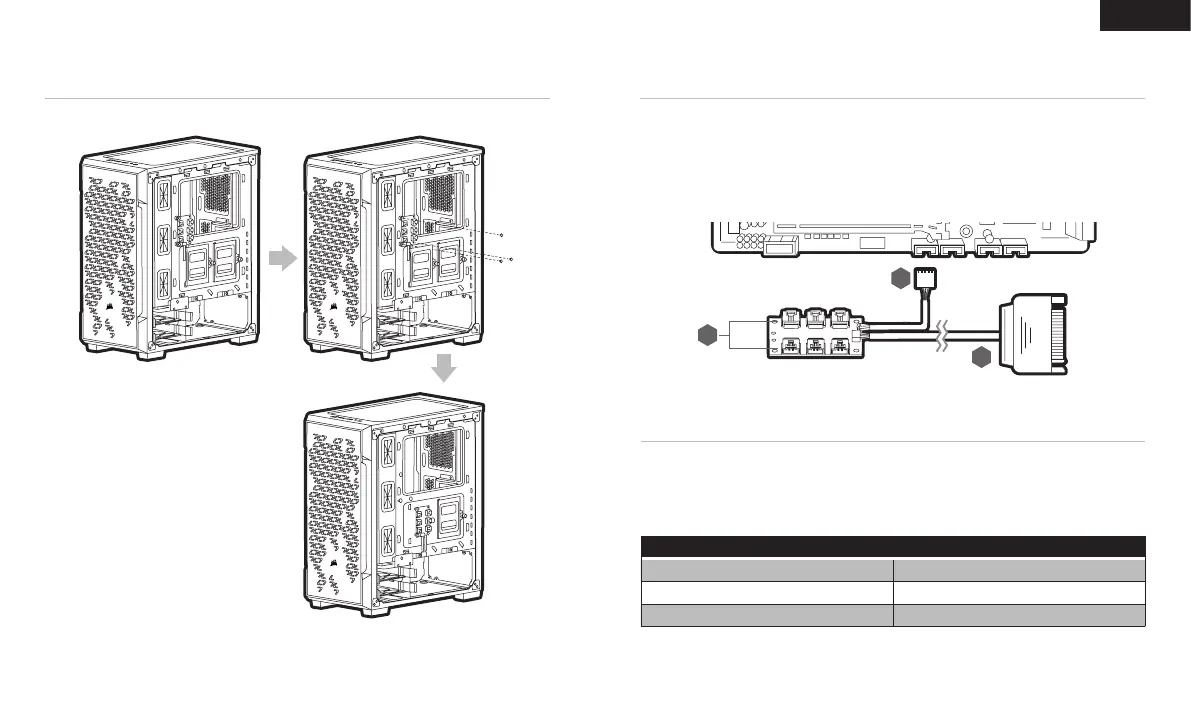

INSTALLING THE LIGHTING NODE CORE
FREQUENTLY ASKED QUESTIONS
1. Does the polarity matter with the I/O panel’s power and reset header?
No, only the LED headers.
2. Who should I contact if I received my case damaged or one of the fans is no longer working?
Please go to support.corsair.com and request an RMA so that we can replace
the damaged part(s).
3. Where can I mount a fan?
To learn more about this case visit the product page at corsair.com.
Fan mount locations
Front 3 x 120mm / 2 x 140mm
Top 2 x 120mm / 2 x 140mm
Rear 1 x 120mm
1. Turn your system off prior to installing your Lighting Node CORE.
2. Plug the 9-pin USB into an available internal USB 2.0 header in your system.
3. Plug the SATA connector into an available SATA connector on your PSU.
4. The Fan LED wiring must be connected to the fan hub in the order you want the lighting effects
to be displayed.
5. Fans must start at “1” and continue in series. 1 > 2 > 3 > 4 > 5 > 6
6. Any fan not connected in series will break communication and the RGB LED lighting function will not work
2
3
5
1 2 3
6 5 4
CHANGING LOCATION OF THE LIGHTING NODE CORE
