Cortex GS-6 - Page 13

13

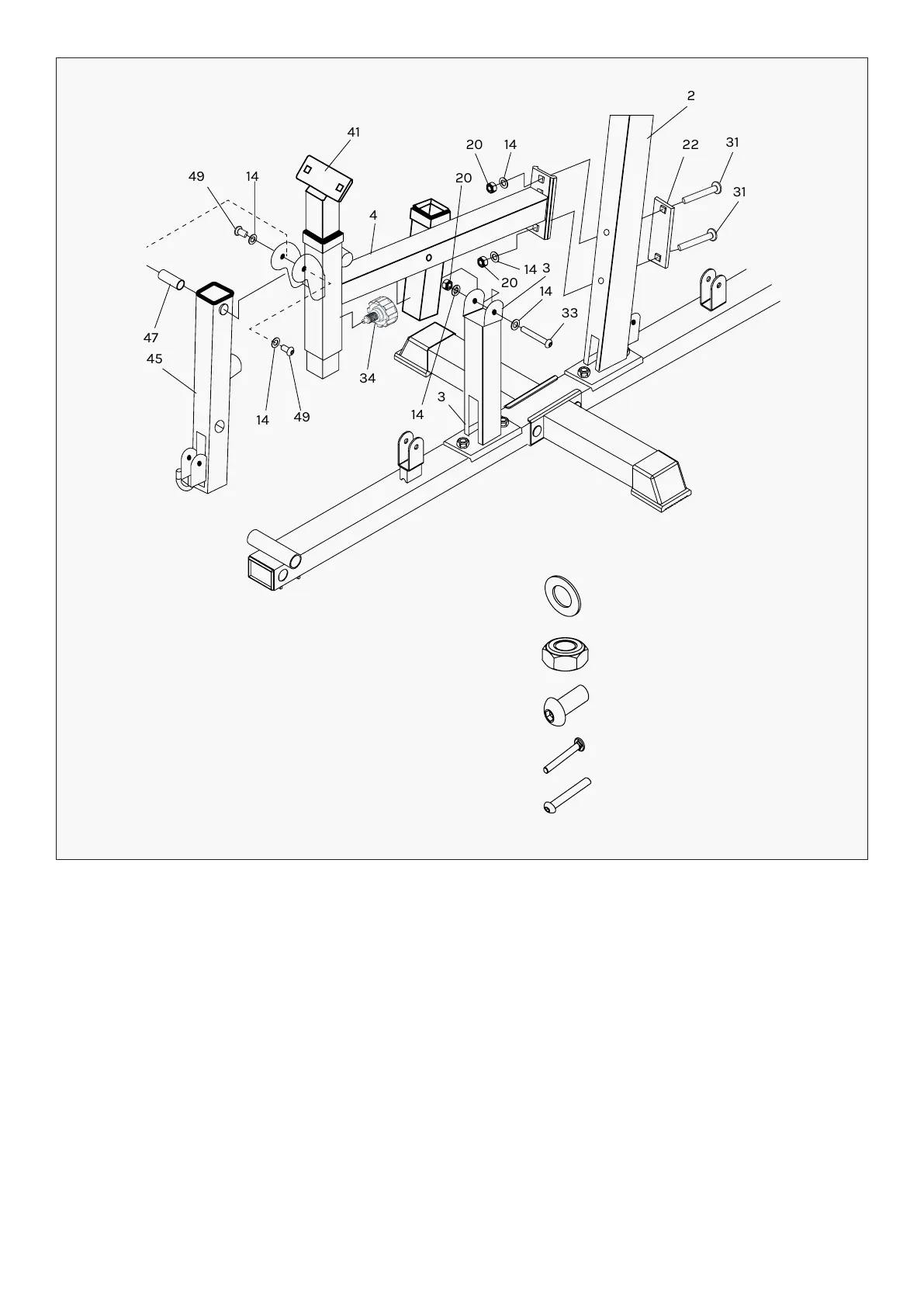

STEP 4
1. Attach the Main Seat Support (#4) to the Front Vertical Frame (#2). Secure it with Washer Φ10 (#14)
and Aircraft Nut M10mm (#20), Carriage Bolt M10*90mm (#31), and Plate (#22).
2. Attach the Main Seat Support (#4) to the Front Base Frame (#3). Secure it with Washer Φ10 (#14)
and Aircraft Nut M10mm (#20), Hex Bolt M10x70.
3. Attach the Leg Developer (#45) to the Main Seat Support (#4). Secure it with a Leg Developer
Axle (#47), Allen Bolt M10*20mm (#49) and Washer Φ10 (#14).
4. Attach Lock Knob (#34) to Main Seat Support (#4). Insert the Tube (#41).
2
22
31
33
14
14
20
3
14
34
49
14
45
47
49 14
41
4
1420
20
3
31
#14 Φ10 - 6pcs
#20 M10 - 3pcs
#49 M10X20 - 2pc
#31 M10x90 - 2pcs
#33 M10x70 - 1pcs
ASSEMBLY INSTRUCTIONS |
