Cortex GS-6 - Page 14

14

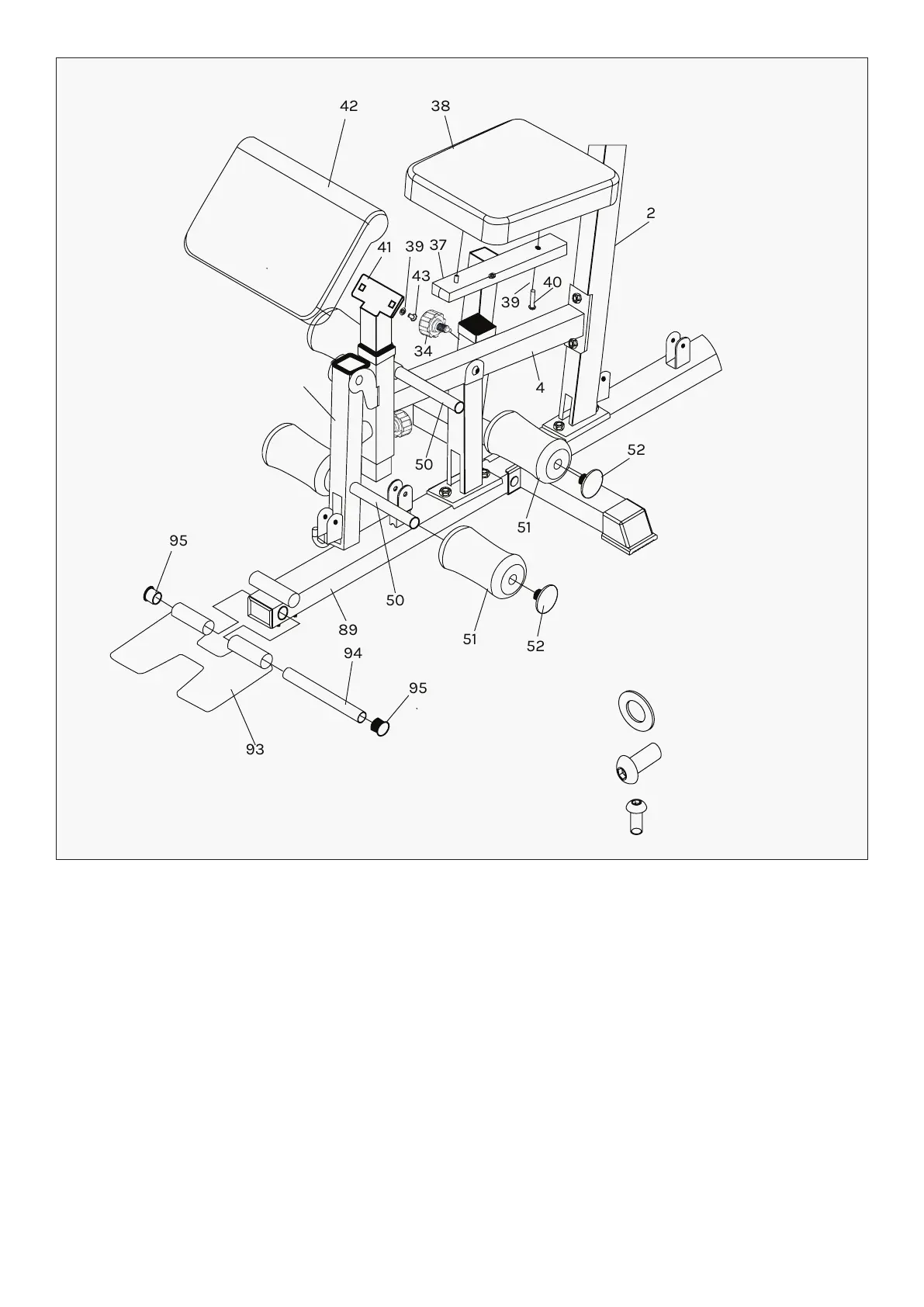

STEP 5
| ASSEMBLY INSTRUCTIONS
95
89
50
51
51
50
4
39
40
2
34
41
39
37
43
42 38
52
52
94
95
93
1. Place the Seat (#38) onto the Seat Stand (#37). Secure it with Allen Bolt M8*40 (#40) and WasherΦ8
(#39). Insert the Seat Stand (#37) into the Main Seat Support (#4). Secure it with Lock Knob (#34).
2. Attach the Arm Curl Pad (#42) to the Arm Curl Stand (#41). Secure it with Allen Bolt M8x16mm
(#43) and Washer Φ8 (#39).
3. Insert 2x Foam Tubes (#50) halfway through the holes on the Leg Developer (#45) and the Main Seat
Support (#4), push Foam Rolls (#51) onto the Foam Tubes (#50) from both ends. Plug the 4x Foam
Roll End Caps (#52) onto the ends.
4. Attach the Foot Plate (#93) to the Front Base Frame (#89), secure with Tube (#94), then plug the
two Caps (#95).
#39 Φ8 - 4pcs
#40 M8x40 - 2pcs
#43 M8X16 - 2pcs
