15ASSEMBLY INSTRUCTIONS |
STEP 6

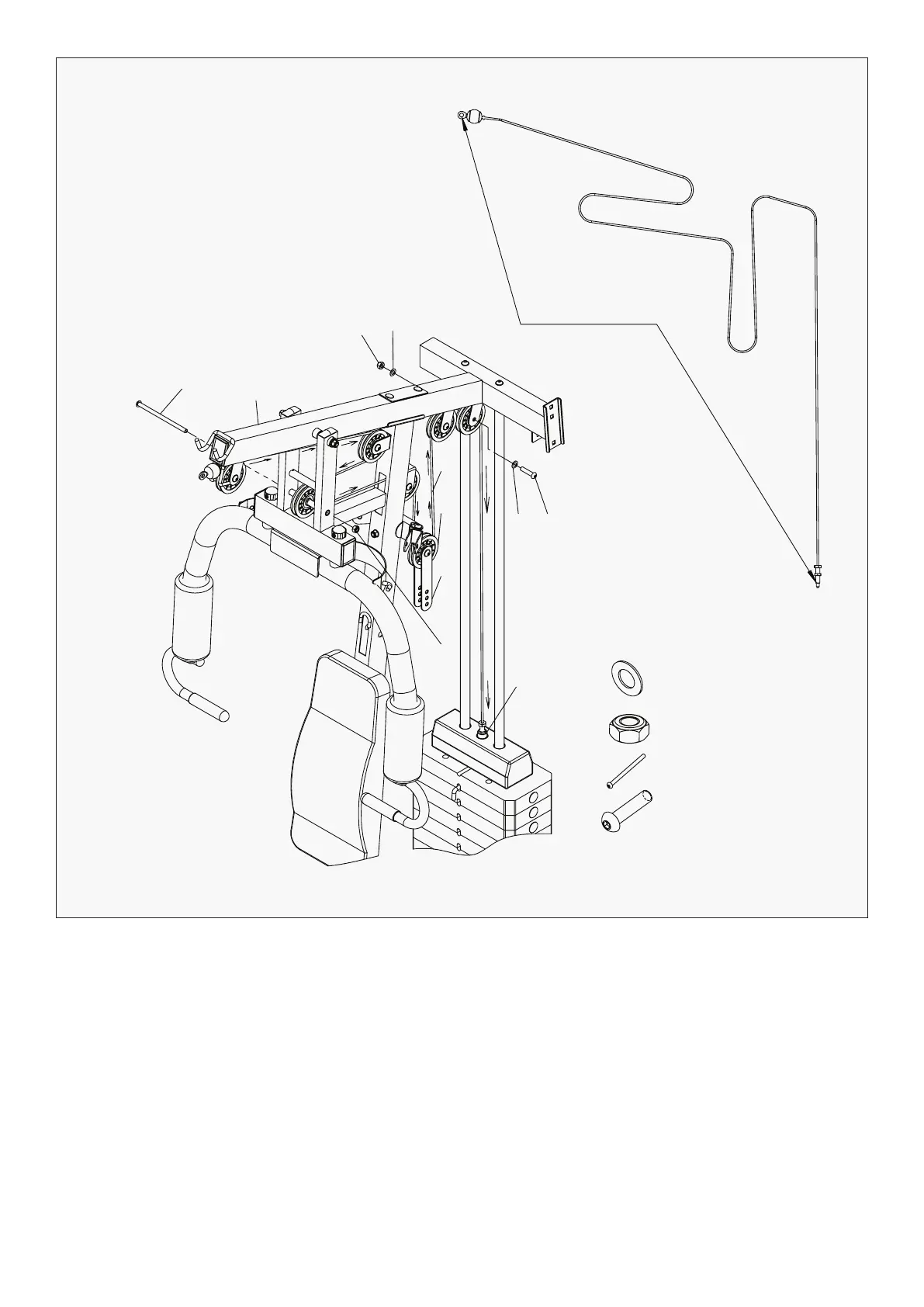

1. Feed the Lat Cable (3380mm)(#75) through 7x Pulley (#63) as shown in image following, secure
with 12 Washers Φ10 (#14), 6 Hex BoltsM10×45 (#59), 1 Hex Bolt M10x175(#21), 7 Nut M10 (#20), 2
Pulley plate (#65). Connect the end which is bolt to the (#57).
21
90
20
14
59
57
14
75
63
65
20
3380mm
#14 Φ10 - 12pcs
#20 M10 - 7pcs
#21 M10X175 - 1pc
#59 M10x45 - 6pcs
