Cortex GS-6 - Page 16

16
STEP 7
| ASSEMBLY INSTRUCTIONS

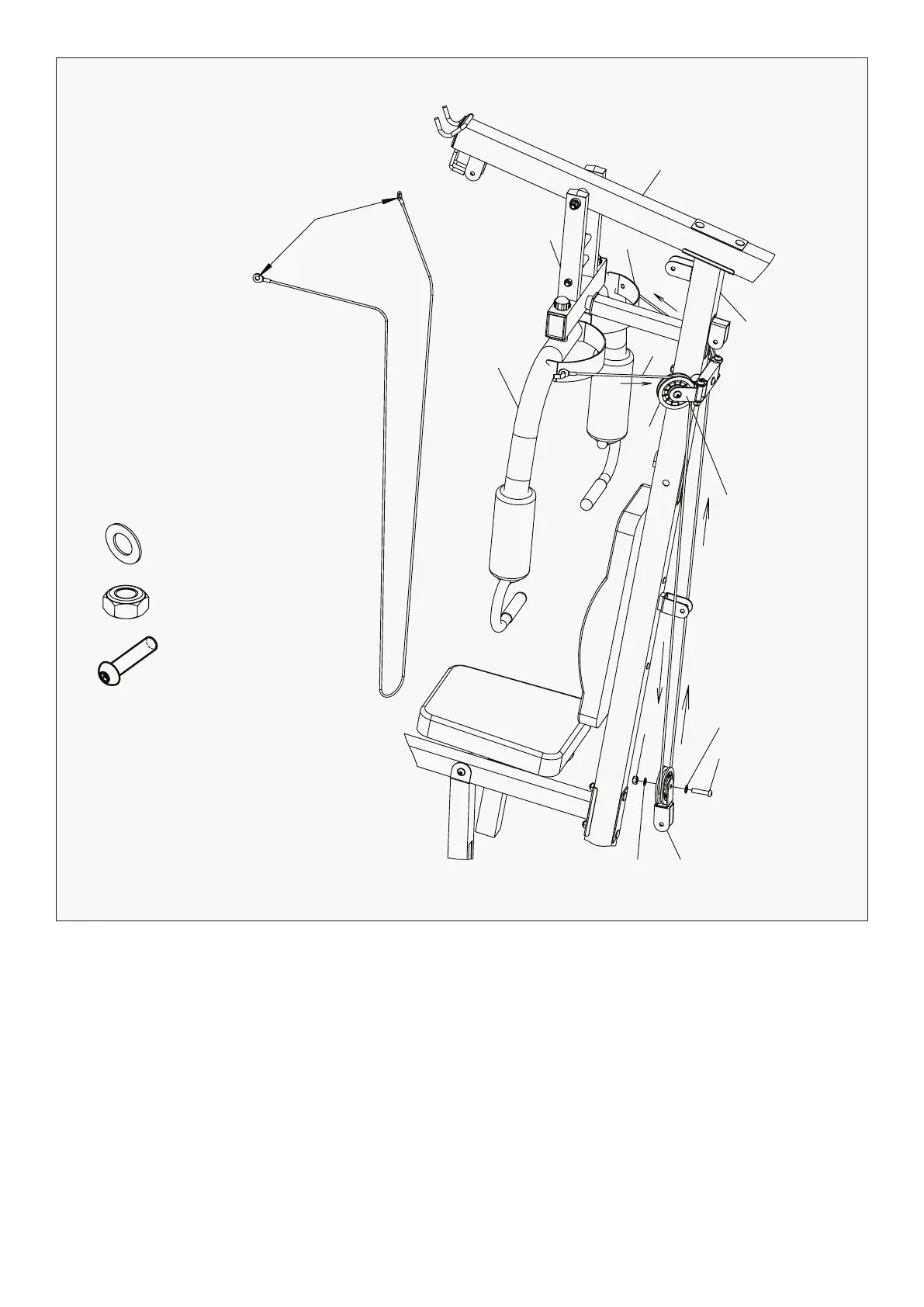

1. Connect the Butterfly Cable (3115mm) (#76) to Right Butterfly (#16) and Left Butterfly (#15) as
shown in image, secure with 1 Pulley Set(#64), 3 Pulley (#63), 3 Hex Bolts M10x45 (#59), 6 Φ10
washers (#14), 3 Nuts(#20).
3115mm
90
9
16
2
76
15
63
70
20
14
14
59
64
#14 Φ10 - 6pcs
#20 M10 - 3pcs
#59 M10x45 - 3pcs
