17ASSEMBLY INSTRUCTIONS |
STEP 8

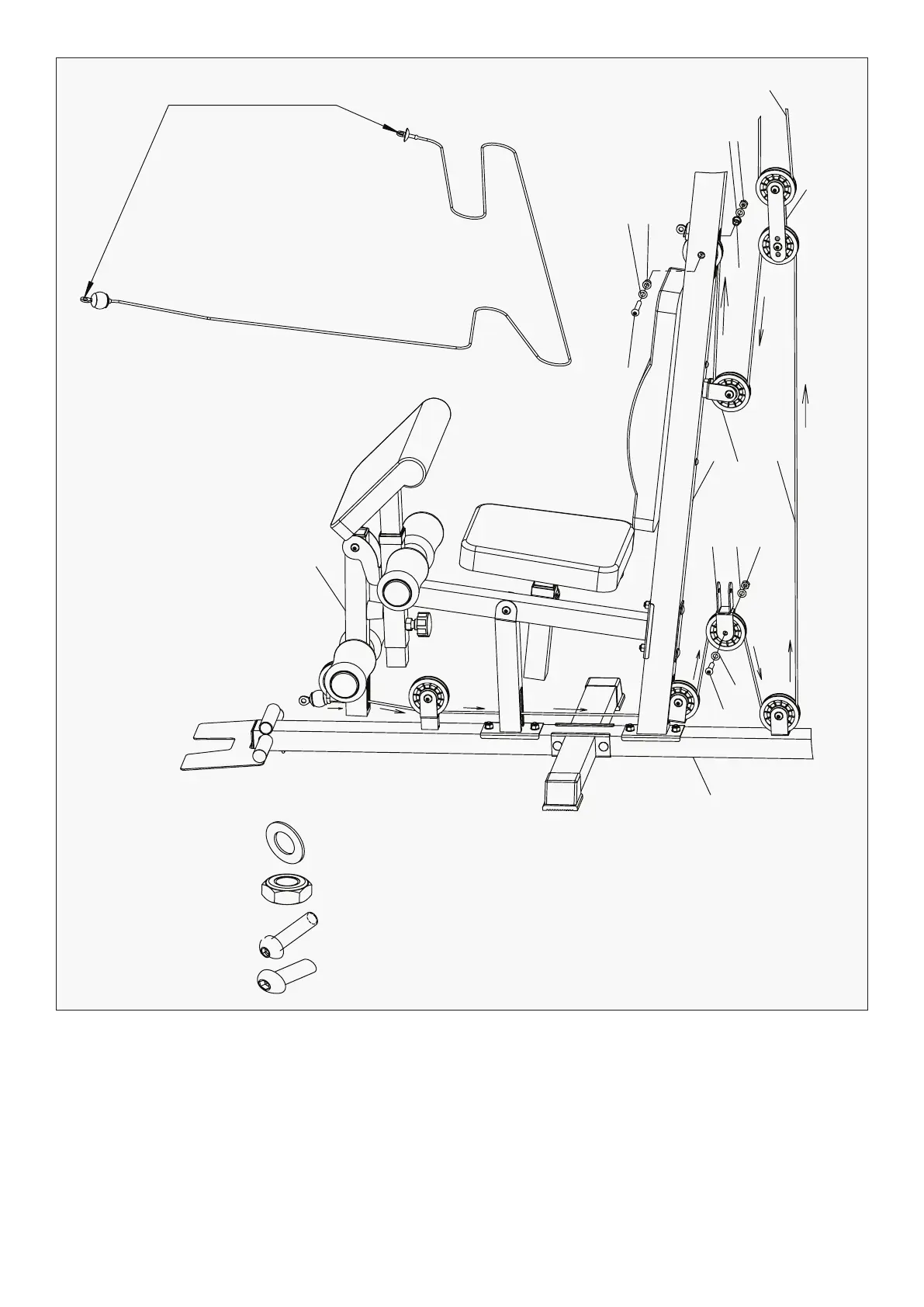

1. Fix the Triceps Cable (4215mm) (#74) as shown in image, secure with 2 Pulley Set(#66), 8 Pulley
(#63), 7 Hex Bolts M10x45 (#59), 1 Hex Bolt M10x65 (#67), 16 Φ10 washers (#14), 8 Nuts(#20).
4215mm
14
14
20
75
65
67
2
63
64 14
14
59
89
45
20
74
66
66
#14 Φ10 - 6pcs
#20 M10 - 8pcs
#59 M10x45 - 7pcs
#67 M10x65 - 1pc
To Next Page
